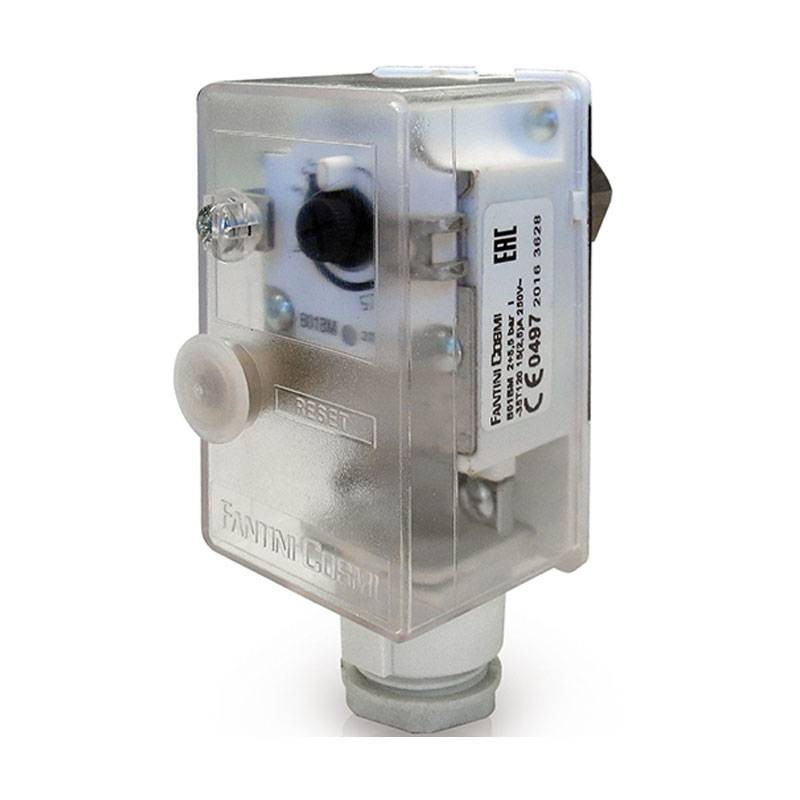

Fantini Cosmi maximum pressure switch with manual reset B01BMX
FAN B01BMX
8025863053781
The Fantini Cosmi B01BMX maximum pressure switch is designed to provide the highest level of protection in heating and pressurization systems. Featuring high quality materials and rugged construction, it offers safety, precision and ease of use with its manual re-insertion system and the ability to seal the housing after calibration:
-
Stainless steel fluid contact parts: Laser-welded for strength and durability
-
Sensing element: Stainless steel diaphragm for precise control
-
Cover and cable gland: Shockproof and self-extinguishing thermoplastic V0 for safety and protection
-
Internal adjustment: Housing prepared for sealing after calibration, ensuring stable setting
-
Wide temperature range: Maximum controlled fluid temperature: 120°C. - Body temperature: -35°C ~ 80°C. - Storage temperature: -35°C ~ 80°C.
-
Scale 2 ÷ 5.5 bar
-
Minimum differential for reset 0.6 bar
-
Maximum pressure sensitive element 7 bar
-
G 1/4 inch female connection
-
NC contact type
€33.15
Items Available: 3
: 2
Fantini Cosmi B01BMX maximum pressure switch
Installation:
-
Direct branch installation
-
In the case of fluids with a temperature higher than the maximum indicated, connect the pressure switch to the pipeline by interposing a spiral-wound metal tube to allow heat dissipation
Operation
-
When blocking pressure is reached, opens 1-2
-
For resetting, wait until the pressure drops below the differential value and act on the reset button
Electrical characteristics
- Rated insulation voltage (Ui): 380V
- Rated continuous service current (Ith ): 15 amps
- Protected electrical connections: Output with built-in cable gland for added safety
Main advantages
- Maximum safety: Manual reset system to restore operation if the maximum pressure is exceeded.
- Advanced strength: Laser-welded stainless steel parts and self-extinguishing thermoplastic for long life.
- Accuracy and stability: Sealable internal adjustment to ensure reliable calibration over time.
- Wide compatibility: Suitable for various industrial applications and heating systems
Technical specifications of the B01BMX pressure switch
- Model: B01BMX
- Fluid contact parts: Laser-welded stainless steel.
- Sensing element: Stainless steel diaphragm.
- Base and cover: Shockproof and self-extinguishing thermoplastic V0.
- Controlled fluid temperature: Max 120°C.
- Body temperature: -35°C ~ 80°C.
- Storage temperature: -35°C ~ 80°C.
- Weight: 0.14 kg
Recommended applications
- Heating systems: Safe pressure control
- Industrial plants: For monitoring and protection against overpressure
- Pressurized applications: Ideal for environments requiring reliability and precision
There are no reviews
Data sheet
- Type: Pressure switches
- Connection: F
- Connections: 1/4 inches
