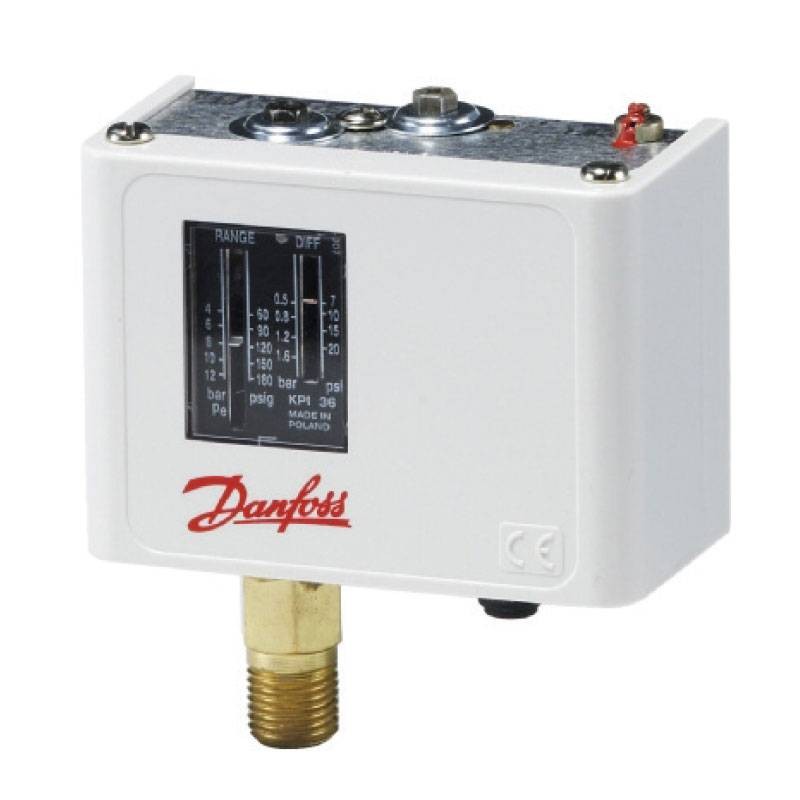

Danfoss Tecnogas pressure switch 0.2/8 bar M 1/4 gaseous and liquid fluids 00000R02528
TGS 00000R02528
8058699056299
Compact and reliable Danfoss Tecnogas pressure switch designed for control, monitoring and alarming in industrial applications. Versatile, durable and easy to install, it is suitable for gaseous and liquid fluids, with the following features:
-
Pressure range: 0.2 to 8 bar, with maximum operating pressure of 18 bar
-
Quality materials: phosphor bronze bellows, brass pressure connector, silver contacts
-
Contact system: single-pole dual position for high electrical and mechanical reliability
-
Compact design: small size, easy to install in panel or on rack
-
Versatility: compatible with gaseous and liquid media and usable with alternating and direct current
€101.82
Items Available: 10
: 3
Danfoss Tecnogas pressure switch 0.2/8 bar M 1/4 gaseous and liquid media
High performance for industrial applications
The Danfoss Tecnogas pressure switch offers precise and safe control in a wide range of industrial applications. With its electrical contacts designed to reduce vibration, oscillation and wear, it ensures long-term reliability even under harsh operating conditions.
Easy installation and compact design
The compact design and small footprint allow for quick and easy installation, either in panels or on racks, thanks to the front electrical connection. The manual click function further simplifies verification of electrical connections without the need for tools or pressure changes.
Strength and reliability
Constructed of rugged and durable materials, the pressure switch is shock and shock resistant. The IP30 rating makes it ideal for controlled environments.
Specifications.
-
Pressure range: 0.2/8 bar
-
Maximum operating pressure: 18 bar
-
Compatible fluids: gaseous and liquid
-
Ambient temperature: -40/+65 degrees
-
Connection: male 1/4 inch
-
Contact system: single-pole double-position
-
Degree of protection: IP30
There are no reviews
Data sheet
- Type: Pressure switches
- Connection: M
- Connections: 1/4 inches
