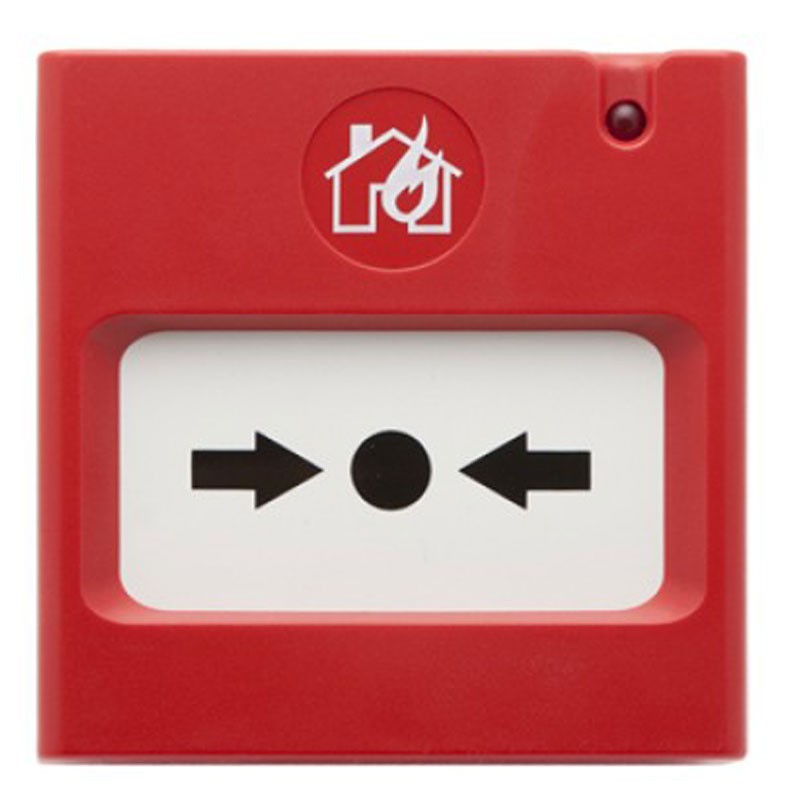

Comelit manual addressed fire alarm button 41PAM000
COE 41PAM000
8023903288124
Comelit addressed manual alarm point/pushbutton with integrated on-board isolator , with the following characteristics:
- Operating voltage 15÷32 (27 VDC nominal)
- Current consumption in alarm 3
- Consumption in communication 160uA@27VDC
- Type of frangible element Resettable
- Degree of protection IP40
- Type ABS coating materials
- Color: Red
- Dimensions: Width 90mm - Height 90mm - Depth 56mm
- Standards EN EN54-11, EN54-17
- Cable cross section for terminals (mm) 0.4 ÷ 2.5
- Weight: 175 grams
€37.19
Items Available: 251
: 25
Advantages:
- Equipped with an operating element that can be reset with a special plastic key (provided) and sends an alarm signal to the control panel when it is activated by pressure at the marked point
- Equipped with LEDs for signaling alarm or test status
- Wall mounting
- Red ABS enclosure
- Certified according to EN 54-11 and EN 54-17
There are no reviews
Data sheet
- Type: Buttons
