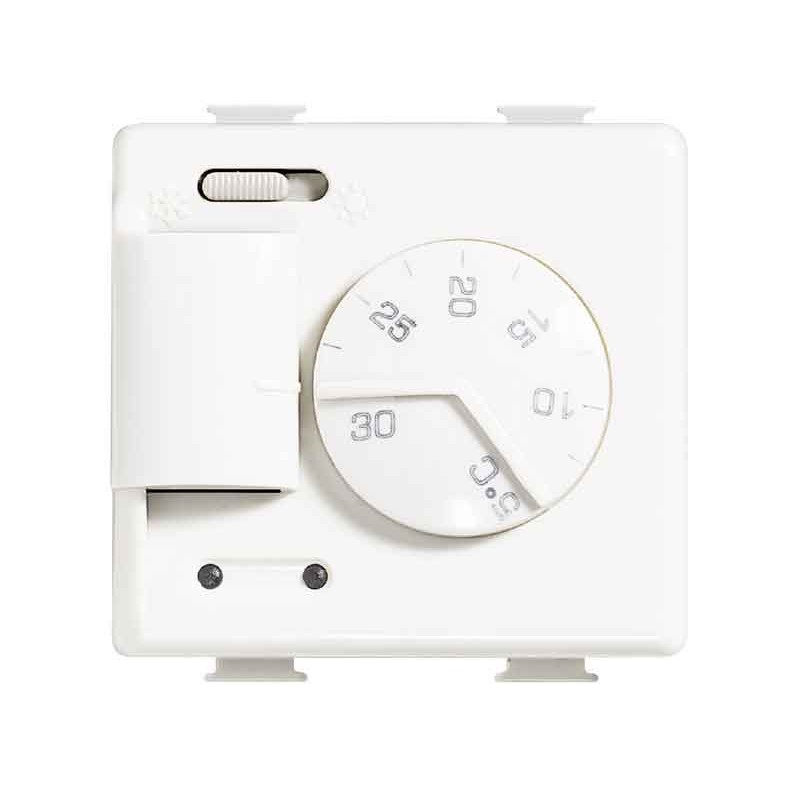

Bticino Matix Electronic Room Thermostat AM5711
BTI AM5711
8012199670584
Room thermostat Bticino Matix white, connected to the boiler or air conditioner is used to regulate the temperature of the environment. It does not regulate the ignition through a timer but only the temperature.
Bticino Matix Electronic Room Thermostat AM5711
€148.67
€148.67
Tax included
Tax included
Pay in installments with Klarna
Items Available: 5
Frequently bought together
These thermostats control the room temperature by means of an electronic sensor that controls an output relay.
On the front of the appliances there are:
On the front of the appliances there are:
- the regulation knob for the setting of the selected temperature
- The LEDs for signalling the operating status
Characteristics:
- Power supply: 230 Vac ± 10 % 50/60Hz 0,6 W
- Output contacts: 2 A cosφ 1 - 0.5
- Ambient temperature adjustment range: 5 - 30 °C
- Accuracy: ± 0.5 °C
- Recommended installation height from ground: 1.5 m (away from heat sources and air currents)
- Do not install in boxes where dimmers are present
- Electrical connection by means of terminals for cables: Max Ø 2.5 mm2
- For heating and air conditioning systems: boilers, fan-coil units, air conditioners, fan coil units
- Ready for: external "summer/winter" switch
- Output contact: switching
- 2 built-in modules
There are no reviews
Data sheet
- Type:
- Thermostats
- Model:
- Without display
