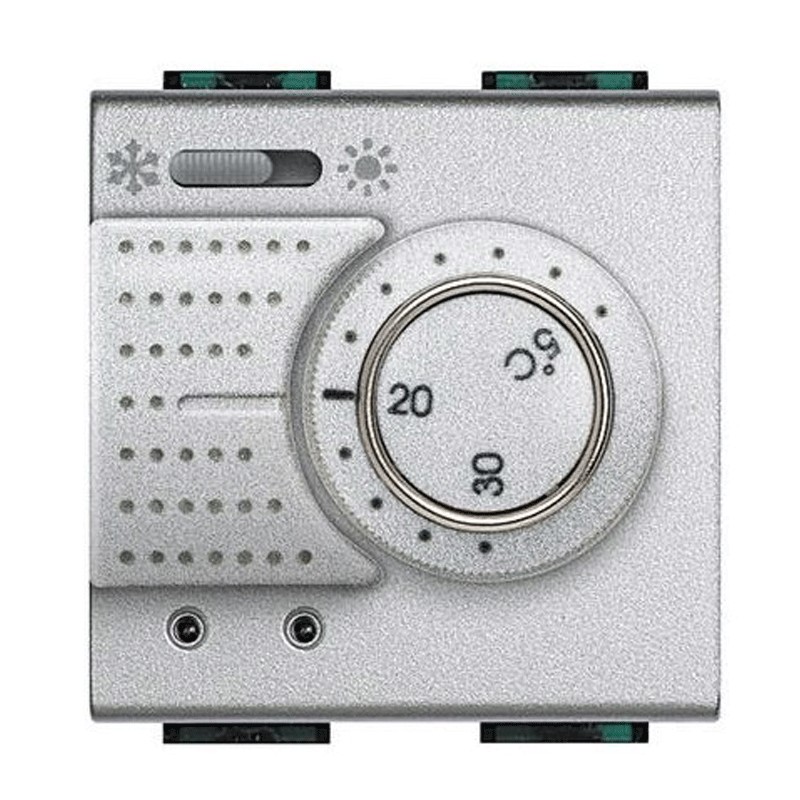

Bticino LivinghLight tech electronic room thermostat NT4442
BTI NT4442
8012199438504
Electronic room thermostat with summer/winter switch, C-NO contact relay output 2A 250V, 230 Vac power supply, 2 modules, tech grey colour.
Bticino LivinghLight tech electronic room thermostat NT4442
€198.39
€198.39
Tax included
Tax included
Pay in installments with Klarna
Out of stock
Incoming
Frequently bought together
Characteristics:
- Power supply: 230 Vac ± 10 % 50/60Hz 0.6 W
- Output contacts: 2 A cosφ 1 - 0.5
- Ambient temperature adjustment range: 5 - 30 °C
- Accuracy: ± 0.5 °C
- Recommended installation height from ground: 1.5 m (away from heat sources and air currents)
- Do not install in boxes where dimmers are present
- Electrical connection by means of terminals for cables: Max Ø 2.5 mm2
- For heating and air conditioning systems: boilers, fan-coil units, air conditioners, fan coil units
- External "summer/winter" switch
- Output contact: NO
- 2 built-in modules
These thermostats control the room temperature by means of an electronic sensor that controls an output relay.
On the front of the devices there are:
- The regulation knob for the setting of the selected temperature
- The LEDs for signalling the operating status
- The switch for "summer/winter" selection
There are no reviews
Data sheet
- Type:
- Thermostats
- Model:
- Without display
