Bpt Video Door Phone Power Supply For X1 Systems
CMC 62700030
8004487025008

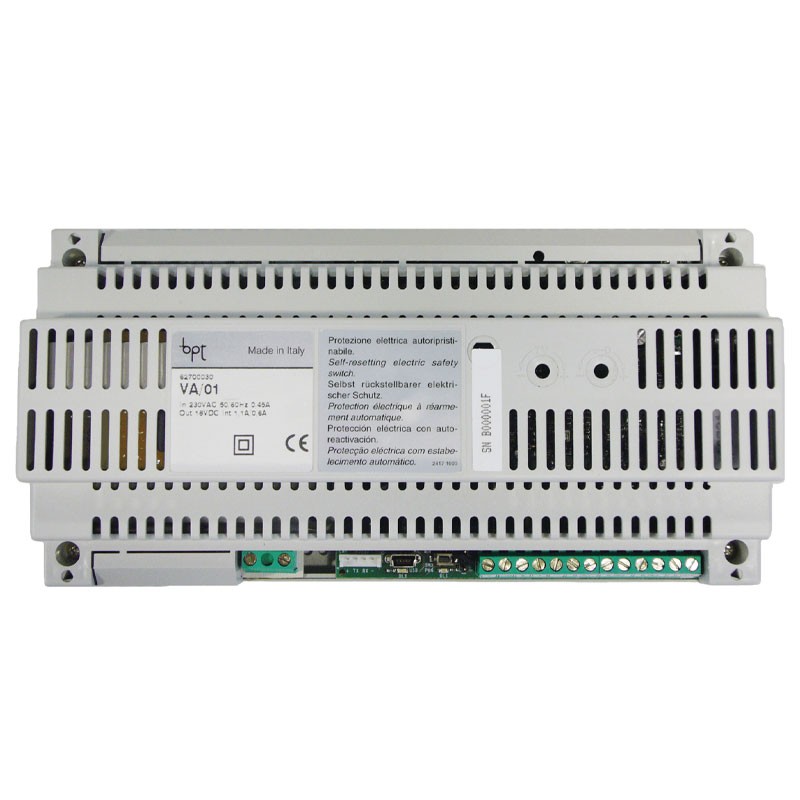

BPT video door phone power supply for X1 systems
€194.51
Items Available: 3
: 2
Made on plastic container, for installation in electrical panels (EN50022).
Features:
- Dimensions 12 low DIN modules
- IP30 degree of protection
- Integrated VSE/301 selector switch
- Complete electronic card for door units management (18V DC - 1.1 A max) and for video door entry panel management (20V DC - 0.8 A max).
- Electronic protection against overloads or short circuits
- Equipped with terminals for upright bus management and terminals for bus connection for 3 door units
- Open collector outputs for auxiliary functions (AUX1 and AUX2)
- RS232 serial outputs (future use) and mini USB for PC programming (with LED signalling of connection and data transfer in progress)
- Input button for manual programming of the system with corresponding signaling LED
- Jumper in programming access control devices (cards and keys)
- Power supply from mains 230V AC 50/60 Hz.
ricambio per videocitofono guasto. Sostituito il pezzo tutto ha ripreso a funzionare
Ottimo perfettamente funzionamento videocitofono è gia configurazione grazie Elletronew a presto online.
Cordiali Saluti
Grazie ancora.
Prezzo competitivo, consegna rapida, imballaggio ottimo
Ottime tempistiche, ottima assistenza clienti
ottimo prodotto facilità di istallazione qualità materiali
Data sheet
- Type: Power supplies
