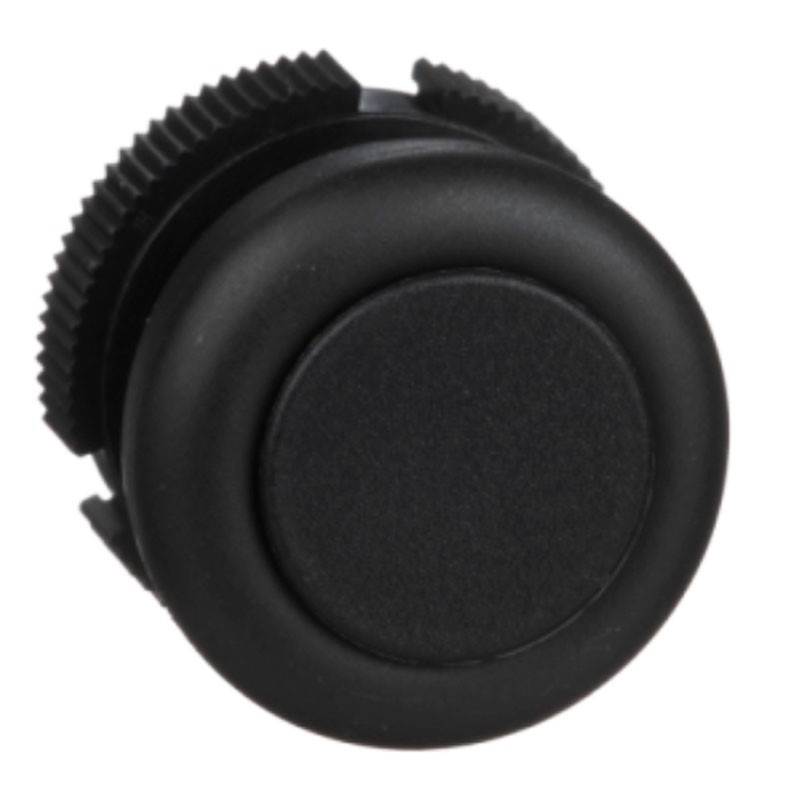

Telemecanique Pulse Head Black XACA9412

Schneider
SNR XACA9412 3389110645149

Schneider Telemecanique Pulse Head black, with the following characteristics:

  • Type of product or component: 37 mm diameter head - severe applications
  • Operator Info: with casing
  • Capsule or bud color: black
  • Mounting position: Front side of the box
  • Operating ambient temperature: -25...70 °C
  • Storage temperature: -40...70 °C
Do you have questions about this product or did you not find what you were looking for? Ask us!
Telemecanique Pulse Head Black XACA9412
€3.92
€3.92

€3.92
Tax included
Calculate shipping cost

€3.92

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days

Other technical characteristics:

  • Vibration resistance: 15 gn (F= 10...500 Hz) in accordance with IEC 60068-2-6
  • Shock resistance: 100 gn in accordance with IEC 60068-2-27
  • Overvoltage category: Class II in accordance with IEC 61140
  • Degree of protectionIP65 per IEC 60529
  • Degree of protection IK08 in accordance with EN 50102
  • Weight: 0.01 kg

Reference standards:

  • CSA C22.2 No 14
  • UL 508
  • EN/IEC 60204-32
  • EN/IEC 60947-5-1

Data sheet

Type:
Buttons
