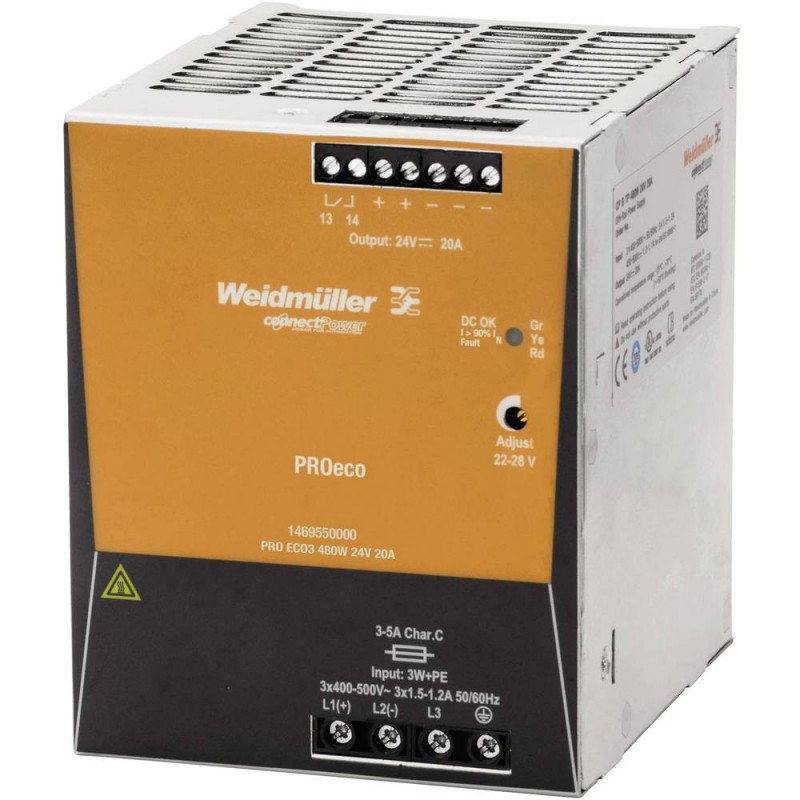

Input:

• AC current consumption: 1.2 A @ 3 x 500 V AC / 1.5 A @ 3 x 400 V AC
• DC current consumption: 0.7 A @ 800 V DC / 1.2 A @ 450 V DC
• AC input voltage range: 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC
• Frequency range: AC 47...63 Hz
• DC input voltage range: 450...800 V DC (max. 500 V DC acc. to UL508)
• Peak current: max. 50 A
• Input frequency: 47...63 Hz
• Input fuse (internal): Yes
• Rated input power: 539.3 VA
• Recommended pre-fuse: 4 A / DI, fuse element - 3...5 A, car. C, circuit breaker
• Input surge protection: varistor
• Connection technology: Screw connection



Output:

• Capacitive load: Unlimited
• Nominal output current for Unom: 20 A @ 55 °C
• Residual ripple, interruption peaks: < 50 mVPP @ 24 V DC, IN
• Parallelability yes, max. 3
• Power output: 480 W
• Overload protection: Yes
• Reverse voltage protection: Yes
• Connection technology: screw connection
• Rise time: ≤ 100 ms
• Output voltage observations: (adjustable with potentiometer)
• Output voltage, max 28 V
• Output voltage, min 22 V
• Nominal output voltage: 24 V DC ± 1 %.



EMC / Shock / Vibration

• Noise immunity check according to EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (burst), EN61000-4-5 (surge), EN 61000-4-6 (conducted), EN61000-4-8 (Fields), EN61000-4-11 (Dips)
• Noise emission according to EN55032: Class B
• Harmonic current limitation: According to EN 61000-3-2
• Shock resistance IEC 60068-2-27: 15 g in all directions
• Vibration resistance IEC 60068-2-6: 1 g according to EN50178




Insulation:

• Protection class: I, with PE connection
• Degree of purity: 2
• Input/output isolation voltage: 3 kV



Electrical safety (applied standards)

• Equipment with electronic operating equipment: according to EN50178 / VDE0160
• Electrical equipment of machines: according to EN60204
• Low voltage protection: SELV according to IEC 60950-1, PELV according to EN 60204-1
• Protection against dangerous currents: according to VDE0106-101
• Safe separation / Protection against electric shock: VDE0100-410 / According to DIN57100-410
• Safety transformers for switching power supplies: according to EN 61558-2-16




Connection data (input)

• Cable cross section, AWG/kcmil , max.12
• Cable cross section, AWG/kcmil , min. 26
• Wire cross section, flexible, max. 2.5 mm²
• Cable cross section, flexible, min. 0.5 mm²
• Cable cross section, rigid, max. 6 mm²
• Cable cross section, rigid, min. 0.5 mm²
• Connection technology: Screw connection




Connection data (output)

• Number of terminals 7 (++,---,13,14)
• Cable cross section, AWG/kcmil , max. 10
• Cable cross section, AWG/kcmil , min. 26
• Cable cross-section, flexible, max. 2.5 mm² (2.5 mm²)
• Cable cross section, flexible, min 0.5 mm²
• Cable cross-section, rigid , max. 6 mm²
• Cable cross section, rigid, min. 0.5 mm²
• Connection technology: screw connection



Signaling:

• Contact load (NO contact): max. 30 V DC / 1A
• Equipotential contact Yes
• Relay ON/OFF Output voltage >21,6 V DC/ <20,4 V DC, overload




Approvals:

• Institute (cULus): CULUS
• Institute (cULus): CURUS
• Certificate No. (cULus): E258476
• Certificate No. (cURus): E255651



Dimensions and weights:

• Depth: 120 mm
• Depth (inch): 4.724 inch
• Vertical position: 125 mm
• Height (inches): 4.921 inch
• Width: 100 mm
• Width (inch): 3.937 inch
• Weight: 1.3 Kg



Temperatures:

• Storage temperature: -40 °C/+85 °C
• Operating Temperature: -25 °C/+70 °C
