Telemecanique M12 4PIN Female Prewired Connector XZCP1141L2

Schneider
Schneider
TSI XZCP1141L2 3389110763171

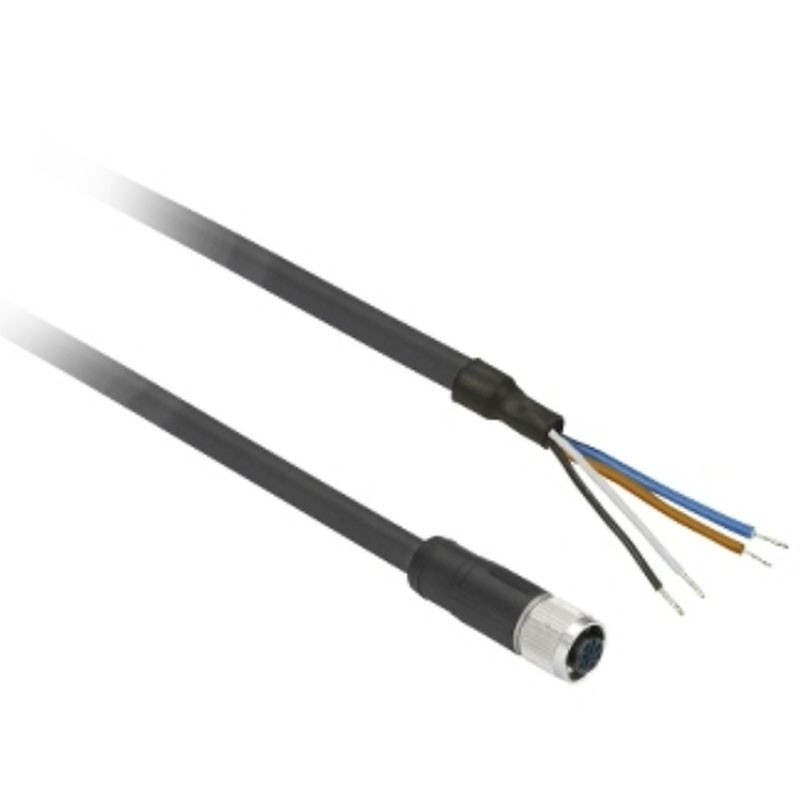

Telemecanique Schneider XZ pre-wired connector, with the following features:

  • Connector: M12 female straight 4 PIN
  • Cable length: 2 meters
  • 4 PIN
  • Usage: general purpose
  • Collar material: metal
  • Cable connector fixing: screwed
  • Collar material: metal
  • Status LED: without
  • Cable outer diameter: 5.2 mm
  • Cable composition: 4 x 0.34 mm²
Do you have questions about this product or did you not find what you were looking for? Ask us!
Telemecanique M12 4PIN Female Prewired Connector XZCP1141L2
€9.98
€9.98

€9.98
Tax included
Calculate shipping cost
Items Available: 73
Further availability of the manufacturer
€9.98

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical features:

  • Cable insulation material: PUR
  • Rated operating voltage [Ue]: 250V AC - 300V DC
  • Rated current: 4 amps
  • Contact resistance: 5000 µΩ
  • Minimum insulation resistance: 1 GΩ
  • Weight: 0.09 kg
  • IP degree of protection: IP65, IP69K, IP67
  • Product Certifications: CULus
  • Operating environment temperature: -40/+80 °C static, -5/+80 °C flexing
  • Storage temperature: -40/+80 °C
