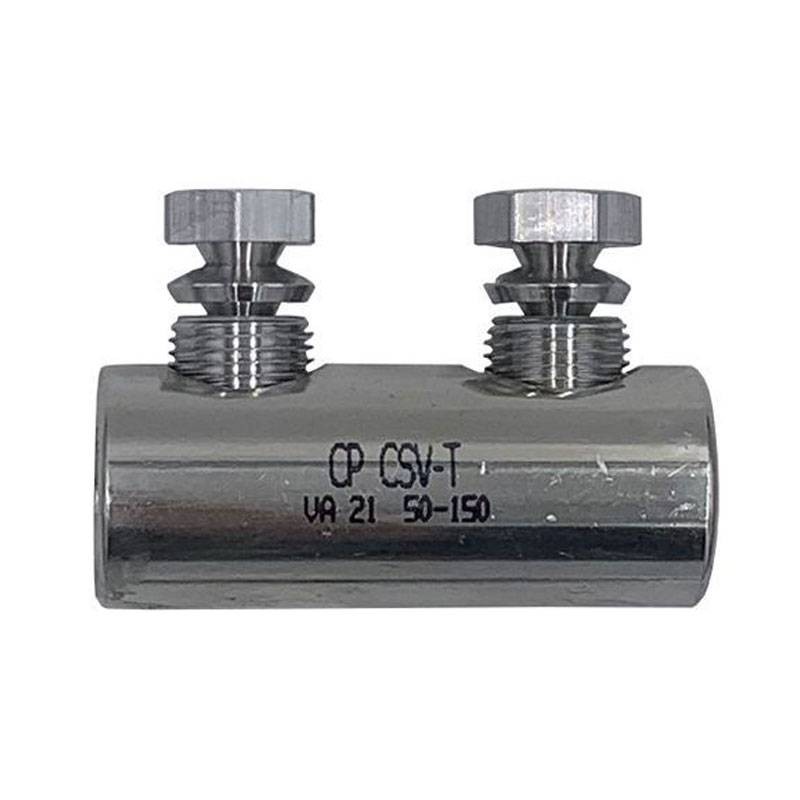

Cellpack Screw Connector CSV-T 50-150mmq 267708
CEL 267708
4010311147130
Screw connector for Cu and AI Cellpack CSV-T 50-150mmq longitudinally sealed with separator for low voltage:
- Screw connector for aluminum and copper RM/SM/RE/SE conductors, suitable for straight and transition joints
- BBC Cellpack bracket is recommended for installation (see accessories)
- Applications For connecting RM/SM (class 2), RE/SE (class 1) conductors according to DIN EN/IEC 60228 (VDE 0295).
€38.53
Items Available: 8
: 4
Features:
- Materials Tin-plated aluminum
- Length L 70 mm
- Length L1 33 mm
- Diameter D1 16 mm
- Diameter D2 21 mm
- Diameter D3 28 mm
There are no reviews
Data sheet
- Type: Connectors
