Etelec insulated lever connectors for aluminum copper cables 0.2-4mmq 45pcs LC45K
ETL LC45K
8053323909156
Insulated lever connectors for copper and aluminum cables, provide secure connection for cables up to 600 V, offer quick installation due to lever clamping, with the following features:
-
Wide compatibility: Suitable for cables from 0.2 to 4 sq. mm.
-
Simplified installation: Lever-assisted technology for fast and secure fastening
-
High strength: Support voltage up to 600V and current rating of 32A
-
Secure construction: Made of transparent polyethylene with orange levers
-
Reliable protection: IP20 rating against solids larger than 12.5 mm
-

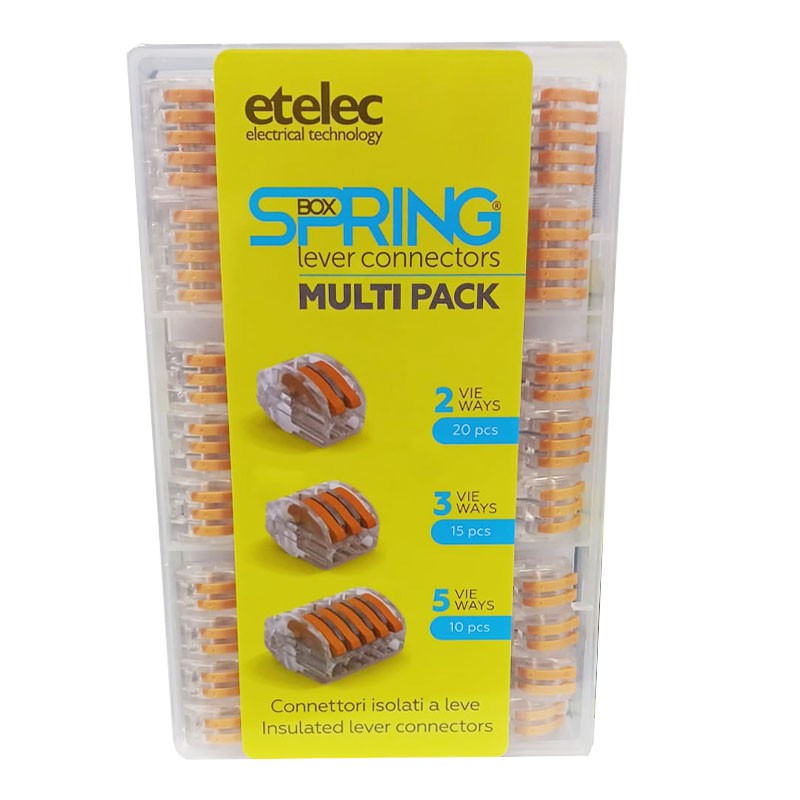

Packaging: 45 pieces

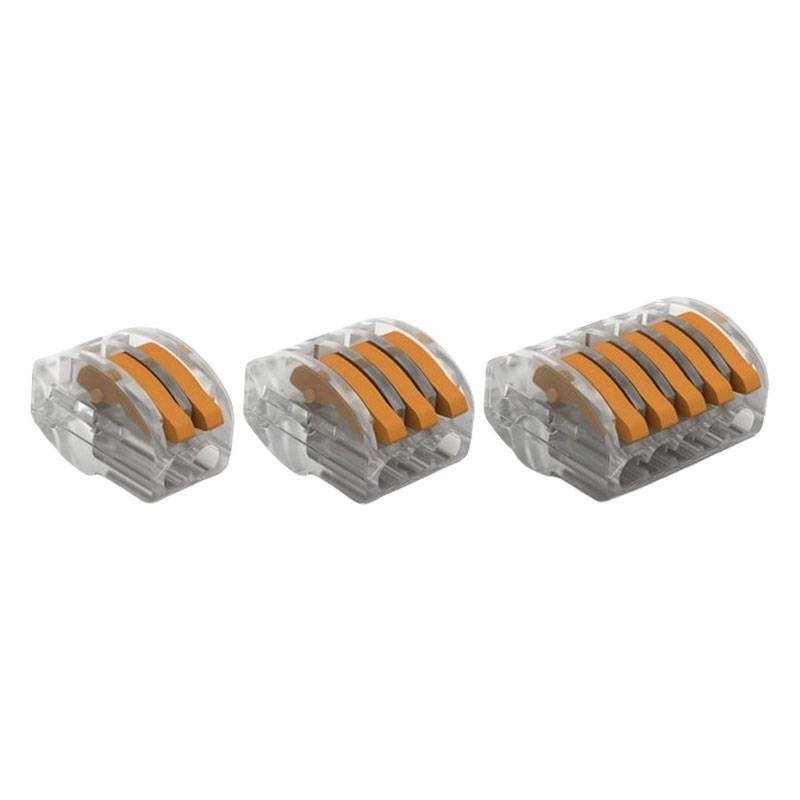

Kit consists of:
-
20 2-way connectors
-
15 3-way connectors
-
10 5-way connectors
€21.35
Items Available: 39
: 3
Lever connectors: secure connection for copper and aluminum
Secure connection with lever technology
Spring Box series connectors are designed to ensure reliable and stable connections using lever clamping technology. This system allows quick installation without the need for tools, reducing the risk of false contacts and improving the efficiency of electrical installations.
Versatility for copper and aluminum
These connectors are compatible with both copper and aluminum conductors, a significant advantage for those working with different types of wiring. With the ability to accommodate cables from 0.2 to 4 sq. mm, they are ideal for residential, industrial and commercial applications.
Etelec connectors Robust structure and certified safety
Robust structure and smart design
Made of transparent polyethylene, the connectors allow visual verification of proper cable insertion. Orange levers ensure easy opening and closing, reducing the risk of damage to conductors during installation.
Certified reliability and safety
With a maximum voltage of 600 V and a current rating of 32 A, these connectors are suitable for a variety of electrical installations. The IP20 rating ensures adequate safety in indoor environments, protecting against dust and accidental contact.
Technical Characteristics Insulated lever connectors
| Feature | Value |
|---|---|
| Rated voltage | 600 V |
| Rated current | 32 A |
| Supported conductor cross-section | 0.2 to 4 sq. mm |
| Material | Transparent polyethylene |
| Lever color | Orange |
| Number of connectors | 45 (20 with 2-way, 15 with 3-way, 10 with 5-way) |
| Degree of protection | IP20 |
| Compatibility | Copper and aluminum conductors |
| Halogen Free | Yes |
| Lead Free | Yes |
There are no reviews
Data sheet
- Type: Connectors
