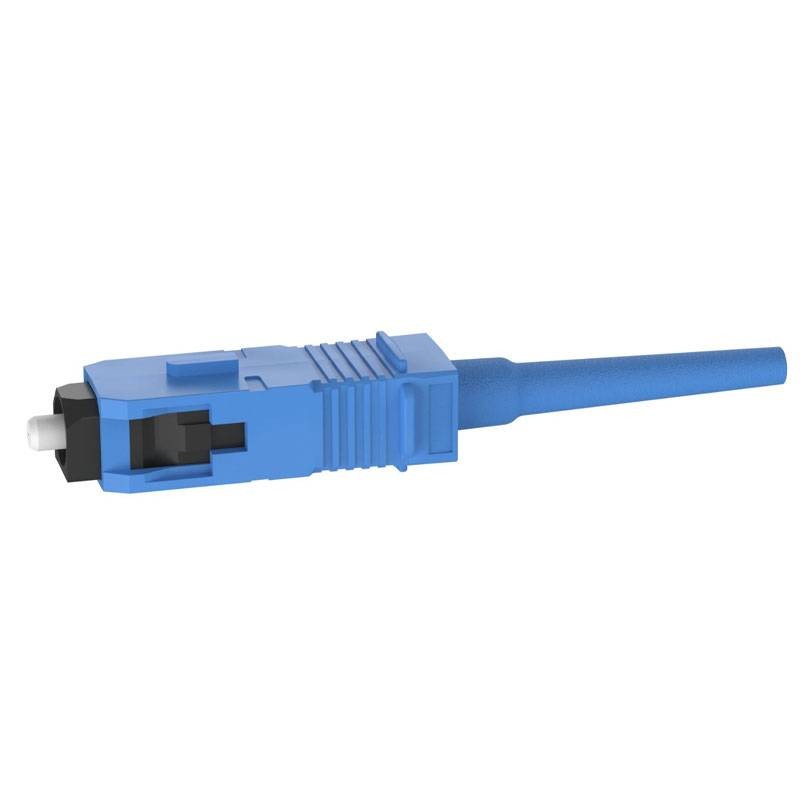

Panduit Simplex fiber connector SC OS1/OS2 blue FSC2SCBU
Panduit Simplex SC fiber connector with the following characteristics:
- Fiber type: OS1/OS2
- Connection type: SC
- Fiber diameter: 900 µm
- Operating temperature: 0/+60 degrees
- Pre-polished fiber end
Application: Maintenance or emergency restoration of fiber optic networks and retrofit/initial installation both behind the wall (BTW) and on the permanent side of interconnects and cross-connects with panels.
The OptiCam SC fiber optic connector is a 9/125?m OS1/OS2 single-mode fiber connector designed for installation of 900-micron tight-buffered fibers. Field termination can be performed in about two minutes using the OptiCam 2 termination tool.
The pre-polished fiber end eliminates time-consuming field polishing, reducing installation costs. The SC connector has a natural color body with blue backbone, outer housing and 900?m boot.
Data sheet
- Type: Connectors
: 4
