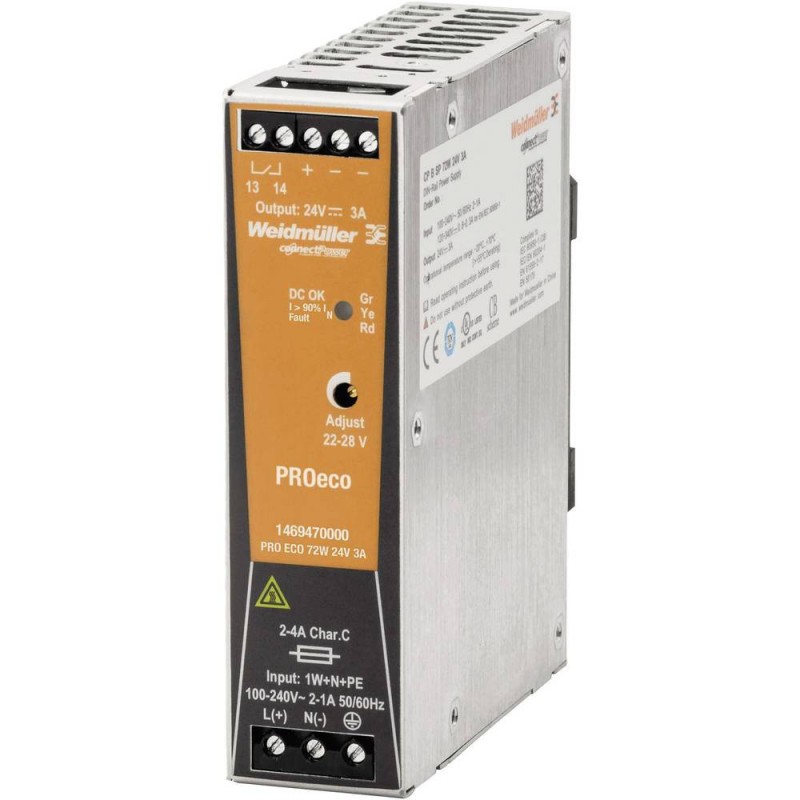

Weidmuller switching power supply PRO ECO 72W 24V 1469470000
WEI 1469470000
4050118275711
Weidmuller PRO ECO switching power supply, with the following characteristics:
- Output voltage observations (adjustable with potentiometer)
- Output voltage, max 28V
- Output voltage, min 22V
- Nominal output voltage 24V DC ± 1 %.
- Capacitive load: Unlimited
- Continuous output current at Uninominal: 3A @ 55 °C, 2.25 A @ 70 °C
- Nominal output current for Uninominal 3A @ 55 °C
- Residual ripple, peak interruption: < 50 mVPP @ 24 V DC, IN
- Parallelability yes, max 5
- Power output: 72W
- Overload protection: yes
- Reverse voltage protection: yes
- Connection technique: screw connection
- Rise time: ≤ 100 ms
- Storage temperature: -40 °C/+85 °C
- Operating temperature: -25 °C/+70 °C
- ROHS: compliant
€43.16
Items Available: 3
Input:
- AC current consumption 0.55 A @ 230V AC / 1.04 A @ 110V AC
- DC current consumption 0.22 A @ 370 V DC / 0.68 A @ 120V DC
- AC input voltage range 85...264V AC (thermal drift at 100V AC)
- AC frequency range 47...63 Hz
- DC input voltage range 80...370 V DC (Derating @ 120 V DC)
- Peak current max 40A
- Input frequency 47...63 Hz
- Input fuse (internal) Yes
- Rated power consumption 82.8 VA
- Recommended pre-fuse: 2 A / DI, fuse - 6A, car. B, circuit breaker, 2...4 A, car. C, circuit breaker
- Input surge protection: varistor
- Connection technique: screw connection
Other technical features:
- Protection class I, with PE connection
- Degree of lordurability 2
- Output/ground isolation voltage: 0.5 kV
- Output/ground isolation voltage: 2 kV
- Input/output isolation voltage: 3 kV
- Relay ON/OFF Output voltage >21.6 V DC/ <20.4 V DC, overload
- Noise emission according to EN55032: Class B
- Mains harmonic current limitation : According to EN 61000-3-2
- Resistance against shock IEC 60068-2-27: 15 g in all directions
- Resistance against vibration IEC 60068-2-6: 1 g according to EN50178
Dimensions and weight:
- Depth 100 mm
- Depth (inches) 3.937 inch
- Vertical position 125mm
- Height (inches) 4.921 inch
- Width 34 mm
- Width (inches) 1.339 inch
- Net weight: 557 grams
Data sheet
- Type: Power supplies
- Voltage: 24V
