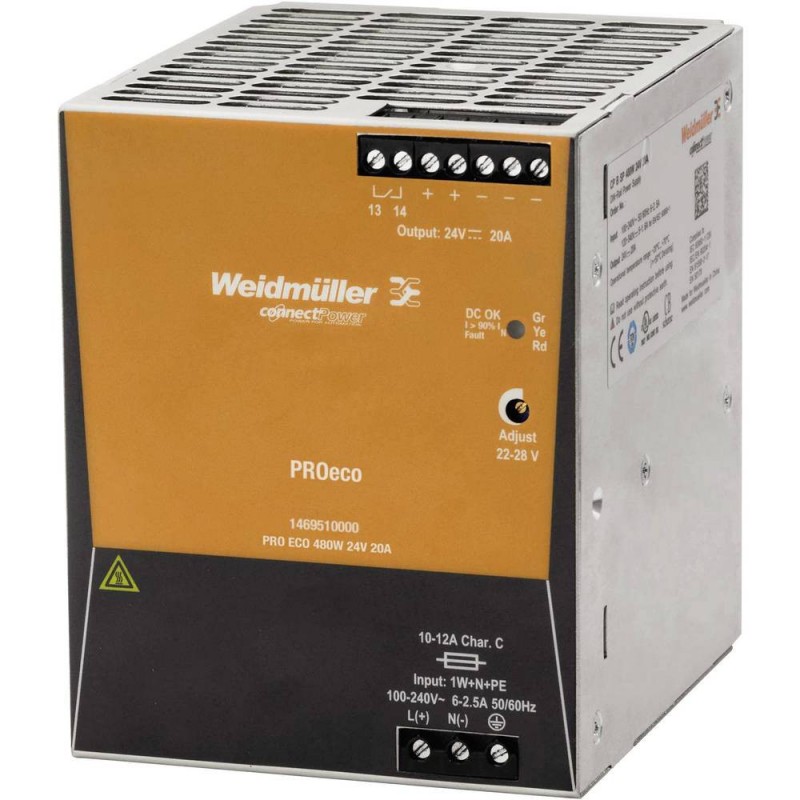

Weidmuller switching power supply PRO ECO 480W 24V 1469510000
WEI 1469510000
4050118275483
Weidmuller switching power supply PRO ECO.
€136.63
Items Available: 7
: 1
INPUT:
- AC power consumption 2.37 A @ 230 V AC / 5.2 A @ 110 VAC
- AC input voltage range 85...264 V AC (derating to 100 VAC)
- Connection system: Screw connection
- DC Current Consumption: 1.55 A @ 370V DC / 4.65 A @ 120V DC
- DC input voltage range: 80...370V DC (Derating to 120V DC)
- AC frequency range: 47...63 Hz
- Input frequency: 47...63 Hz
- Input fuse (internal): yes
- Inrush current: max 5A
- Rated input power: 527.5 VA
- Overvoltage protection: Varistor
Recommended back-up fuse:
- 6 A / DI, safety fuse
- 16 A, Char. B, switch
- 6...8 A, Char. C, switch
Dimensions and weights:
- Depth 120 mm
- Depth (inches) 4.724 inches
- Height 125 mm
- Height (inch) 4.921 inch
- Width 100 mm
- Width (inch) 3.937 inch
- Net Weight 1,557 grams
Temperatures:
- Storage temperature -40°C/85°C
- Operating Temperature -25°C/70°C
Output:
- Capacitive load: unlimited
- Connection system: Screw connection
- Nominal output current for U nom: 20 A @ 55 °C
- Output power: 480 W
- Output voltage, max 28V
- Output voltage, min 22V
- Output voltage, note: (adjustable via potentiometer)
- Overload protection: yes
- Parallel connection possible: yes, max. 3
- Reverse voltage protection: yes
- Acceleration time: ≤ 100 ms
- Nominal output voltage: 24 V DC ± 1 %.
- Residual ripple, breaking points: < 50 mV PP @ 24 V DC, IN
EMC/shock/vibration:
- Noise immunity test sec. A: EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (burst), EN 61000-4-5 (surge), EN 61000-4-6 (conducted), EN61000-4-8 (fields), EN61000-4-11 (dips)
- Limitation of harmonic currents of mains voltage: According to EN 61000-3-2
- Noise emission according to EN55032: Class B
- Shock resistance IEC 60068-2-27: 15 g in all directions
- Vibration resistance IEC 60068-2-6: 1 g according to EN 50178
Insulation coordination
- Insulation voltage, input/output 3 kV
- Pollution severity 2
- Protection class I, with PE connection
Connection data (input):
- Conductor cross section, AWG/kcmil , max. 12
- Conductor cross section, AWG/kcmil , min. 26
- Conductor cross-section, flexible, min. 0.5 mm²
- Conductor cross section, rigid, max. 6 mm²
- Conductor cross section, rigid, min. 0,5 mm²
- Connection system Screw connection
- Wire cross section, flexible (input), max. 2.5 mm²
Connection data (output)
- Conductor cross-section, AWG/kcmil , max. 10
- Conductor cross-section, AWG/kcmil , min. 26
- Conductor cross-section, flexible, max. 2.5 mm².
- Conductor cross section, flexible, min. 0,5 mm²
- Conductor cross section, rigid, max. 6 mm²
- Conductor cross section, rigid, min. 0,5 mm²
- Connection system: Screw connection
- Number of terminals 7 (++,---,13,14)
SIGNALING
- Contact load (NO contact): max. 30 V DC / 1 A
- Floating contact: yes
- On/off relay: Output voltage >21.6 V DC/ <20.4 V DC, overload
There are no reviews
Data sheet
- Type: Power supplies
- Voltage: 24V
