Siemens switching power supply SITOP PSU100L 1F/24DC 10A 6EP13341LB00
SIE 6EP13341LB00
4025515152996
Siemens switching power supply SITOP, with the following characteristics:
- Mains form: Single-phase AC
- Supply voltage with AC: initial value Set by switch on the equipment
- Supply voltage: 1 with AC nominal value 120V - 2 with AC nominal value 230V
- Input voltage: 1 at AC 93...132V - 2 at AC 187...264V
- Mains frequency: 1 nominal value 50 Hz - 2 nominal value 60 Hz
- Mains frequency: 47...63 Hz
- Input current: at nominal input voltage 120V: 4.1 A - at nominal input voltage 230V: 2A
![](https://www.elettronew.com/19155-large_default/power-supply-siemens-switching-sitop-psu100l-1f-24dc-10a-6ep13341lb00.jpg)

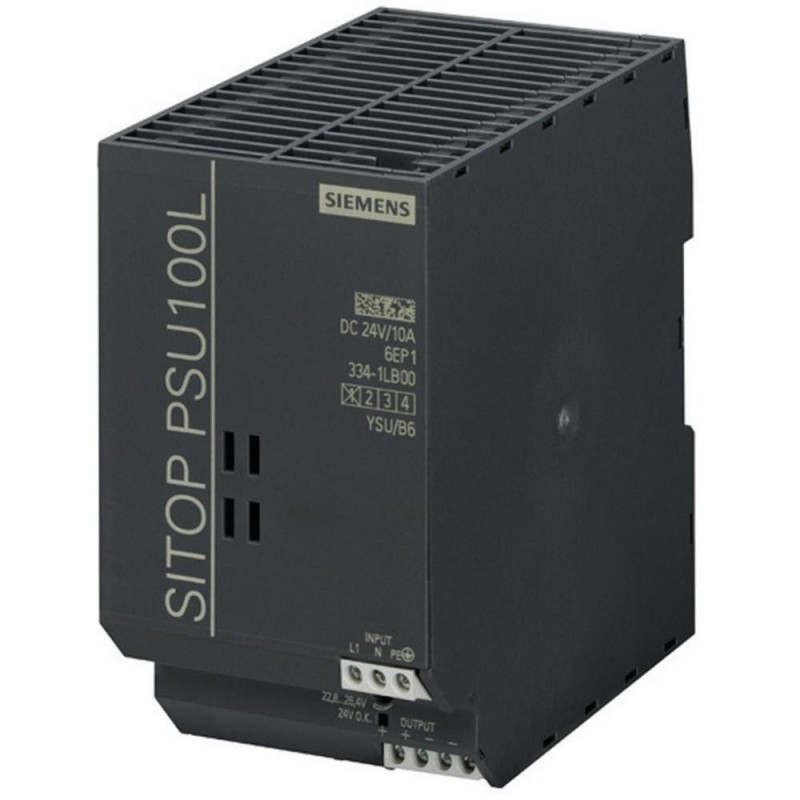

Siemens switching power supply SITOP PSU100L 1F/24DC 10A 6EP13341LB00
€108.44
€108.44
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 94
Other features:
- Current limitation of inrush current at 25 °C max. 65A
- Duration of switch-on current limitation at 25 °C typ:3 ms
- Environmental category according to IEC 60721: Climate class 3K3, 5 ... 95% non-condensing
- Net weight: 0.75 kg
- Degree of protection IP20
- Type of mounting: mounting on EN 60715 35x7,5/15 standard profile rail
Data sheet
- Type:
- Power supplies
- Voltage:
- 24V
- Amps:
- 10A
