Siemens switching power supply SITOP 1/2F24DC 10A 6EP13343BA10
SIE 6EP13343BA10
4025515152880
Siemens switching power supply SITOP PSU200M, with the following features:
- Mains form: Single-phase and two-phase AC
- Supply voltage with AC: initial value set by switch on the equipment
- Wide-range input execution: Yes
- Overvoltage overload capacity: 1300 Vpeak, 1.3 ms
- Mains frequency: nominal value 50 Hz - nominal value 60 Hz
- Mains frequency 47...63 Hz
- Current limitation of switching current at 25 °C max: 35A
![](https://www.elettronew.com/45713-large_default/power-supply-siemens-switching-sitop-1-2f24dc-10a-6ep13343ba10.jpg)

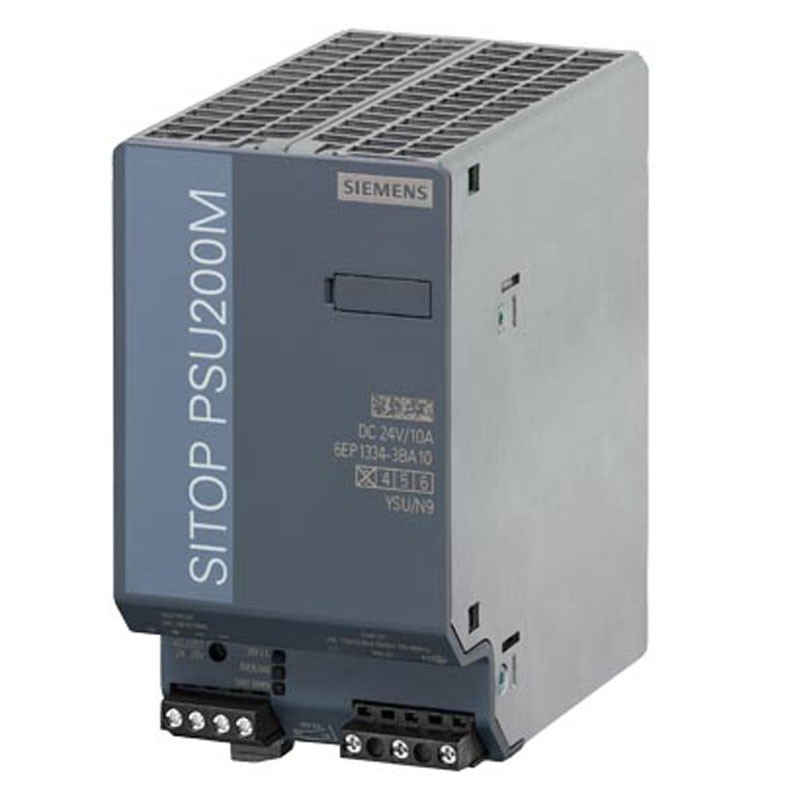

Siemens switching power supply SITOP 1/2F24DC 10A 6EP13343BA10
€252.02
€252.02
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 40
Other technical features:
- I2t max value: 4 A²-s
- Form of the voltage curve at the output: Potential free regulated DC voltage
- Output voltage at DC nominal value 24V
- Output voltage: at output 1 with DC nominal value 24V
- Relative overall voltage tolerance: 3%.
- Protection class IP20
- Weight 0.8 kg
- Type of mounting: mounting on EN 60715 35x7.5/15 standard profile rail
- Design of overvoltage protection < 35V
- Tripping value of the current limitation typ. 12A
- Short-circuit resistant output characteristic Yes
Supply voltage
- 1 with AC 12...230V
- 2 with AC 230...500V
Input voltage:
- 1 with AC 85...264V
- 2 with AC 176...550V
Dimensions:
- Housing width 70 mm
- Housing height 125 mm
- Housing depth 121 mm
Distance to be observed
- top 50 mm
- bottom 50 mm
- left 0 mm
- right 0 mm
Ambient conditions:
- Ambient temperature during operation -25 /+70 °C; with natural convection; startup tested from -40 °C rated voltage
- Ambient temperature during transport: -40 /+85 °C
- Ambient temperature during storage: -40/+85 °C
- Environmental category in accordance with IEC 60721 Climate class 3K3, 5 ... 95% non-condensing
Data sheet
- Type:
- Power supplies
