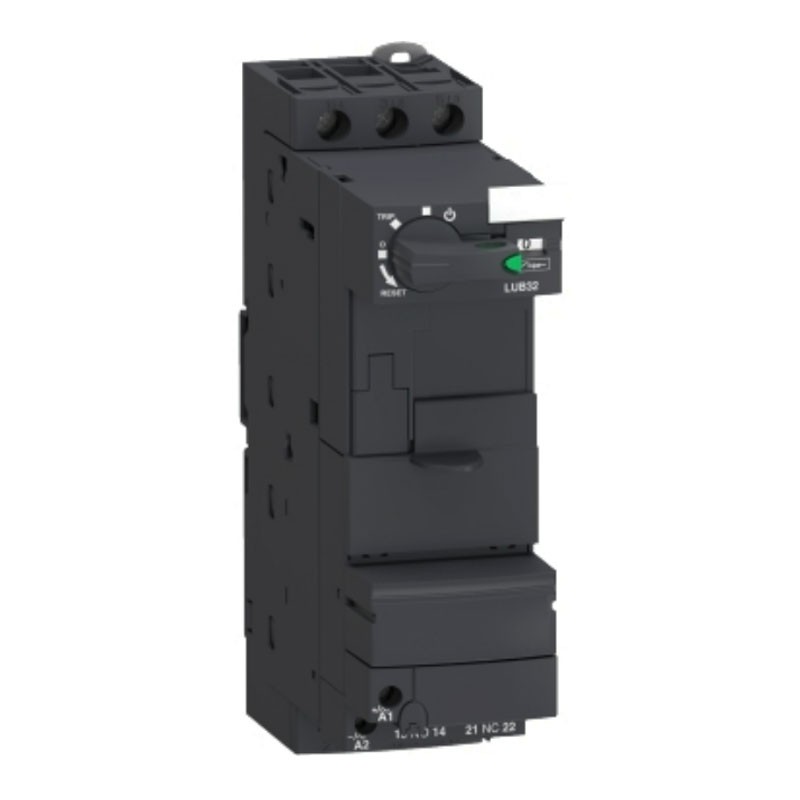

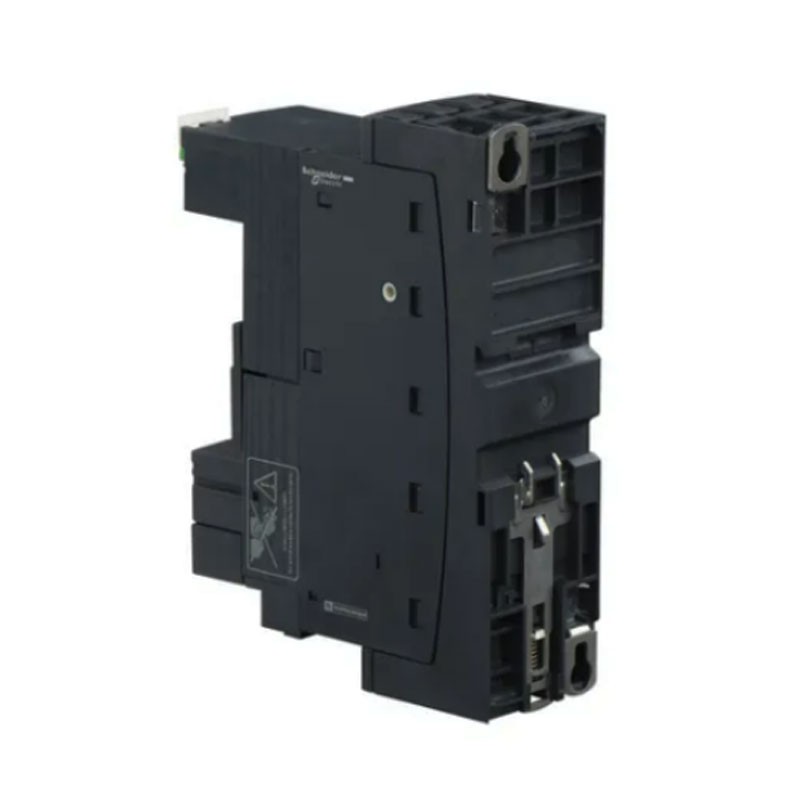

Telemecanique 32A one-way power base LUB32
SNR LUB32
3389110362787
Schneider Telemecanique 1-way power base with the following characteristics:
- Rated operating voltage [Ue]: 690V "AC" per power circuit
- Rated impulse withstand voltage [Uimp]: 6 kV complying with IEC 60947-6-2
- Mains frequency: 40...60 Hz
- Conventional thermal current in air [Ith]: 32 amps
- Auxiliary contact composition: 1 NO + 1 NC
- Auxiliary contact type: Linked contact type (1 NO + 1 NC) according to IEC 60947-4-1, mirror contact type (1 NC) according to IEC 60947-1
- Mounting type: Snap-on (DIN rail), screw-mounted (plate)
- Mechanical endurance 15 Mccycles
- Maximum operating speed 3600 cycles/h
- Poles: 3P
- Insulation capability: YES
€93.20
Items Available: 6
Other technical features:
- Protection treatment: TH in accordance with IEC 60068
- Operating ambient temperature: -25/+60 °C with LUCM, -25/+70 °C with LUCA, LUCB, LUCC, LUCD
- Storage temperature: -40/+85 °C
- Immunity to radioelectric fields: 10V in accordance with IEC 61000-4-6
- Immunity to micro interruptions: 3 ms per control circuit
- Immunity to voltage spikes: 70 % / 500 ms in accordance with IEC 61000-4-11
- Resistance to radiated fields: 10 V/m 3 complying with IEC 61000-4-3
Dimensions and weight:
- Width 45 mm
- Height 154 mm
- Depth 126 mm
- Weight 0.9 kg
IP rating:
- IP20 (front panel and wired terminals) complies with IEC 60947-1
- IP20 (other sides) complies with IEC 60947-1
- IP40 (front panel outside the connection area) complies with IEC 60947-1
Safe circuit separation:
- 400V SELV between auxiliary and control circuits complies with IEC 60947-1 appendix N
- 400V SELV between auxiliary or control circuit and main circuit complies with IEC 60947-1 appendix N
There are no reviews
Data sheet
- Type: Engine control unit
- Poles: 3P
- Amps: 32A
