Lovato 85A 600V 2 Phase Soft Starter ADXL0085600
LOV ADXL0085600
8013975220276

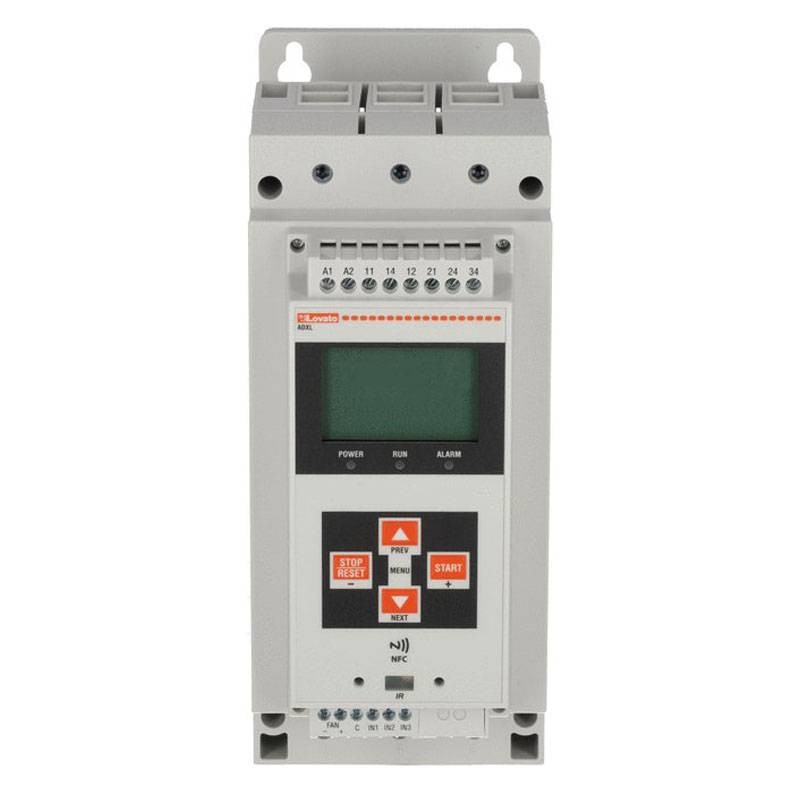

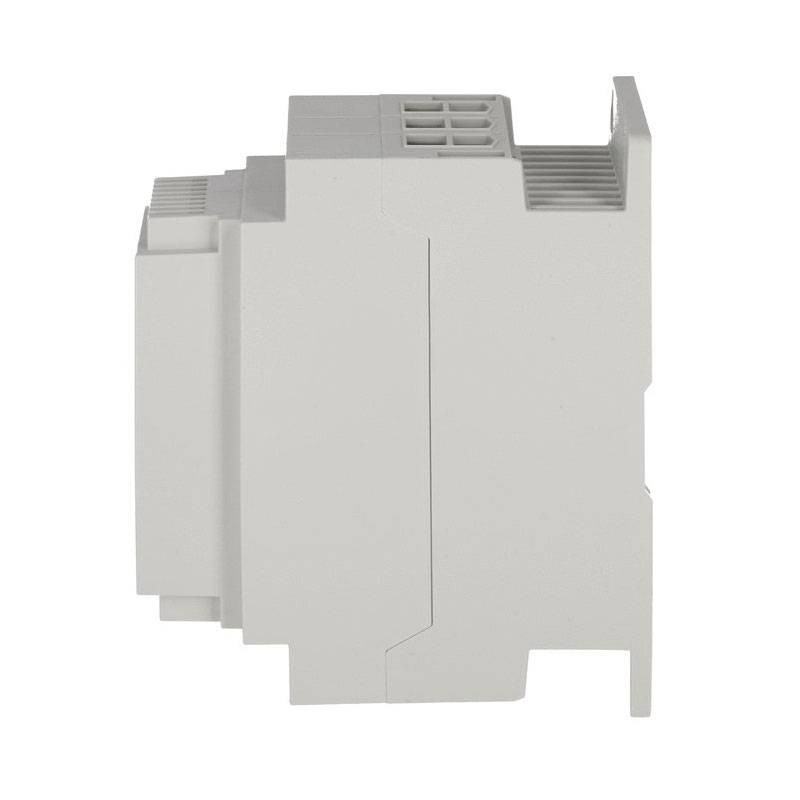

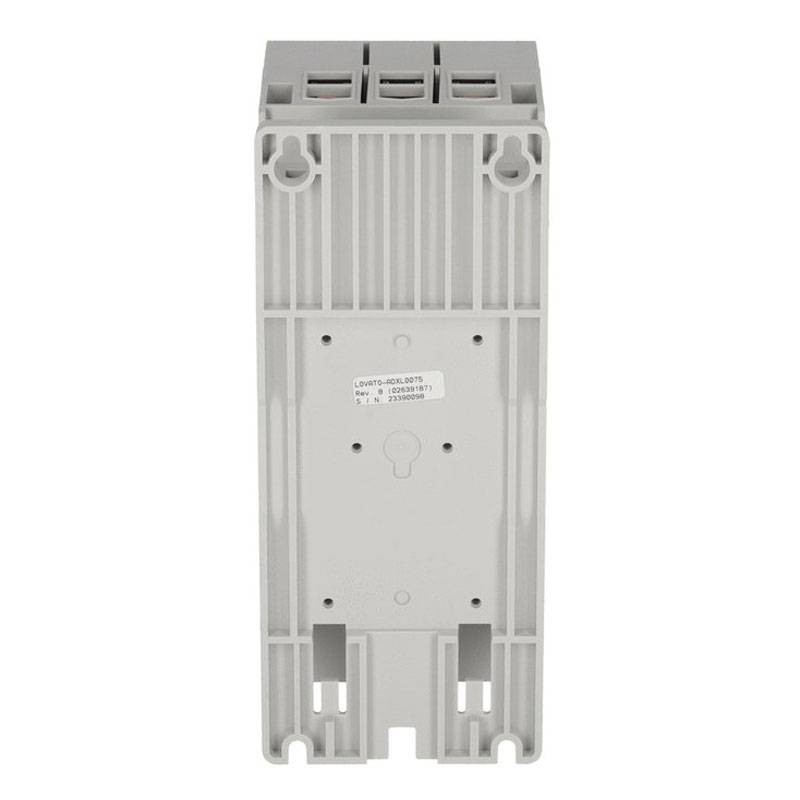

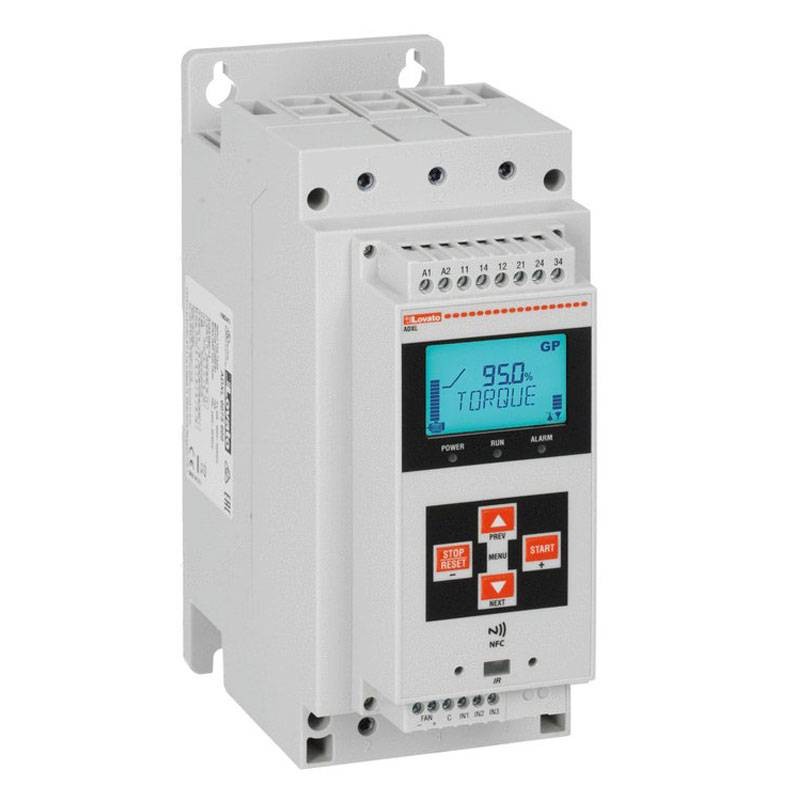

Lovato ADXL0085600 85A soft starter with 2-phase control and integrated bypass relay provides soft starts and advanced protection for motors up to 55 kW, with smart management via NFC and advanced connectivity options
-
Rated current: 85A
-
Rated operating voltage: 208/600VAC
-
Auxiliary power supply: 100/240VAC
-
2-phase control with integrated bypass relay
-
NFC for quick configuration from smartphone
-
Thermal protection, torque control, Kick Start
-
PTC input, event log and optical port
-
RS485 available as an option
€1,229.76
Items Available: 1
Lovato soft starter: Reliable motor starting control
The Lovato soft starter ADXL0085600 is designed to provide controlled starting of three-phase asynchronous motors, reducing mechanical stress and inrush currents. With a rated current of 85A, the device is suitable for motors with power ratings up to:
-
22 kW at 230VAC
-
45 kW at 400VAC
-
55 kW at 500VAC
Ideal for industrial applications, pumps, fans, compressors and automated machinery.
Integrated by-pass relay for greater efficiency
The built-in by-pass relay activates at the end of startup, optimizing energy efficiency and reducing electrical losses. This eliminates the need to install external components, simplifying the system and reducing costs
Advanced control and protection features
The soft starter includes a full range of intelligent features:
-
Current-limited starting to protect motor and grid
-
Torque control for smooth acceleration
-
Kick Start function for starting heavy loads
-
Built-in thermal current protection
-
PTC input for motor thermal protection
-
Event log for diagnostics and predictive maintenance
Smart connectivity and simplified management
With built-in NFC technology, the device can be easily configured via smartphone, without the need for software or wiring. It also has an optical port for diagnostics and can optionally be equipped with an RS485 interface for integration into supervisory or industrial automation systems.
Technical specifications of the Lovato Soft Starter
Electrical Specifications
| Item | Detail |
|---|---|
| Network type | Three-phase |
| Rated voltage | 208...600 VAC |
| Auxiliary voltage (US) | 100...240 VAC |
| Rated frequency | 50/60 Hz |
| Rated starter current Ie | 85 A |
| Rated motor power (IEC T≤40°C) | 230 VAC: 22 kW 400 VAC: 45 kW 500 VAC: 55 kW |
| Rated motor power (UL T≤40°C) | 220-240 VAC: 30 HP 380-415 VAC: 50 HP 440-480 VAC: 60 HP 550-600 VAC: 75 HP |
| Number of controlled phases | 2 |
| Integrated bypass | Yes |
| Cooling system | Natural or forced (optional) |
| Rated insulation voltage (Ui) | 600 V |
Programming Interface
| Item | Detail |
|---|---|
| Display | Backlit icon LCD display |
| Programming with NFC | Yes |
| Optical port | Yes |
Start and Stop Adjustments
| Item | Detail |
|---|---|
| Starting | - Torque ramp with current limit - Voltage ramp with current limit - Constant torque with current limit |
| Stop | - Torque ramp - Voltage ramp - Freewheel stop |
Protections
| Type of Protection | Detail |
|---|---|
| Auxiliary power supply protection | Voltage too low |
| Power Supply Protection | No power supply Phase loss Phase sequence Frequency out of limit Minimum and maximum voltage |
| Motor protection | Startup overload (trip class 2, 10A, 10, 15, 20, 25, 30, 35 and 40) Overload while running (trip class 2, 10A, 10, 15, 20, 25 and 30) Locked rotor Asymmetrical current |
| Starter protection | Overcurrent Overtemperature Bypass failure Shorted phase Temperature sensor failure Cooling fan failure Maintenance request |
Functions
| Function | Value |
|---|---|
| Integrated bypass | Yes |
| Built-in display and keypad | Yes |
| Languages | 6 |
| Measurement display | Yes |
| Torque control | Yes |
| Settable current limit | Yes |
| Dynamic braking | Yes |
| Kick start function | No |
| Electronic motor overload protection | Yes |
| Motor protection PTC input | Yes |
| Phase failure protection | Yes |
| Reverse phase protection | Yes |
| Protection from locked rotor | Yes |
| Thyristor overtemperature protection | Yes |
| Low load protection | Yes |
| Programmable alarms | Yes |
| Digital inputs | 3 |
| Analog inputs | 0 |
| Digital outputs | 3 |
| Analog output | 0 |
| Optical port for programming | Yes |
| Event log | Yes |
| Motor hour meter | Yes |
| Startup hour counter | Yes |
| Date clock | Yes |
| Removable external keypad | No |
Inputs and Outputs
| Item | Detail |
|---|---|
| Number of digital inputs | No. 3 |
| Type of digital inputs | 2 inputs with dry contact + 1 input with dry contact or PTC (configurable) |
| Digital input functions | Programmable: motor start, motor stop, freewheel stop, motor preheat, command lock, alarm inhibit, thermal status reset, keypad lock, motor select, alarm |
| Number of digital outputs | No. 3 |
| Configuration of digital outputs | 2 x 1 NO (SPST) 1 x C/O (SPDT) Ratings: - 2 x 1NO: 3A 250VAC / 3A 30VDC - 1 x C/O: NO 5A 250VAC / 5A 30VDC; NC 3A 250VAC / 3A 30VDC |
| Digital output functions | Programmable: line contactor, run, global alarm, limits, remote variable, Axx alarm, Axx user alarm, OFF |
Environmental conditions
| Item | Value |
|---|---|
| Operating temperature | -20°C to +60°C (with derating of 0.5%/°C above 40°C) |
| Storage temperature | -30°C TO +80°C |
| Maximum altitude | 1000 m without derating (above with derating of 0.5% per 100 m) |
| Relative humidity | < 80% |
| Pollution degree | 2 |
| Installation category | III |
Housing
| Item | Value |
|---|---|
| Mounting | Screw mounting or 35 mm DIN rail (with optional EXP8003 accessory) |
| IP rating | IP00 |
| Dimensions (W x H x D) | 95 x 226 x 182 mm |
| Weight | 2.9 kg |
Approvals and Compliance
| Item | Detail |
|---|---|
| Compliance | CSA C22.2 No. 14 IEC/EN 60947-1 IEC/EN 60947-4-2 UL508 |
| Approvals | cULus, EAC, RCM |
| ETIM Classification | ETIM 8.0 - EC000640 - Progressive Starter |
There are no reviews
Data sheet
- Type: Engine control unit
- Voltage: 600VAC
- Amps: 85A
Soft Starter
