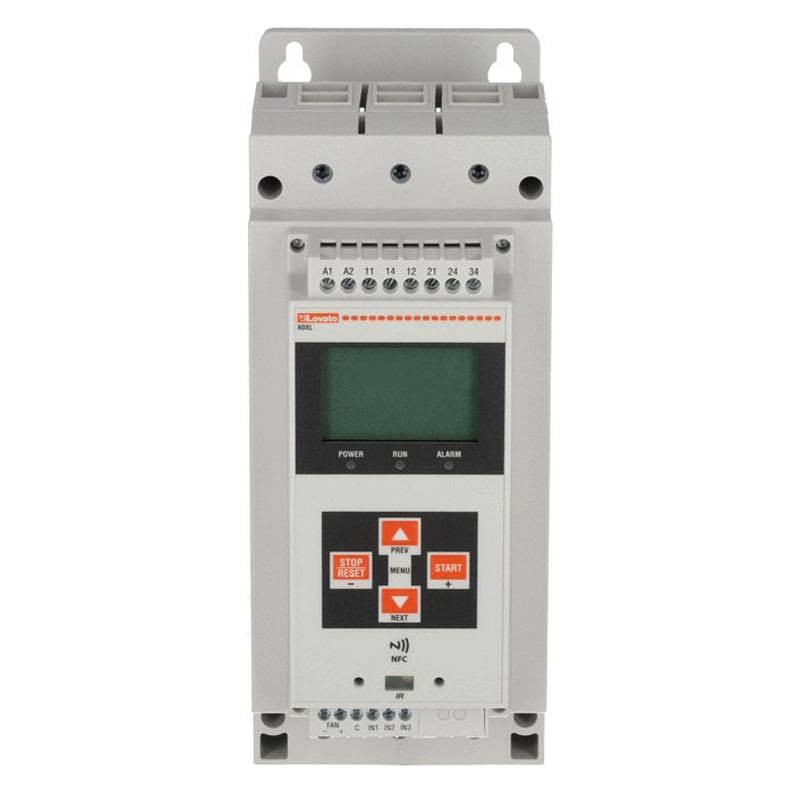

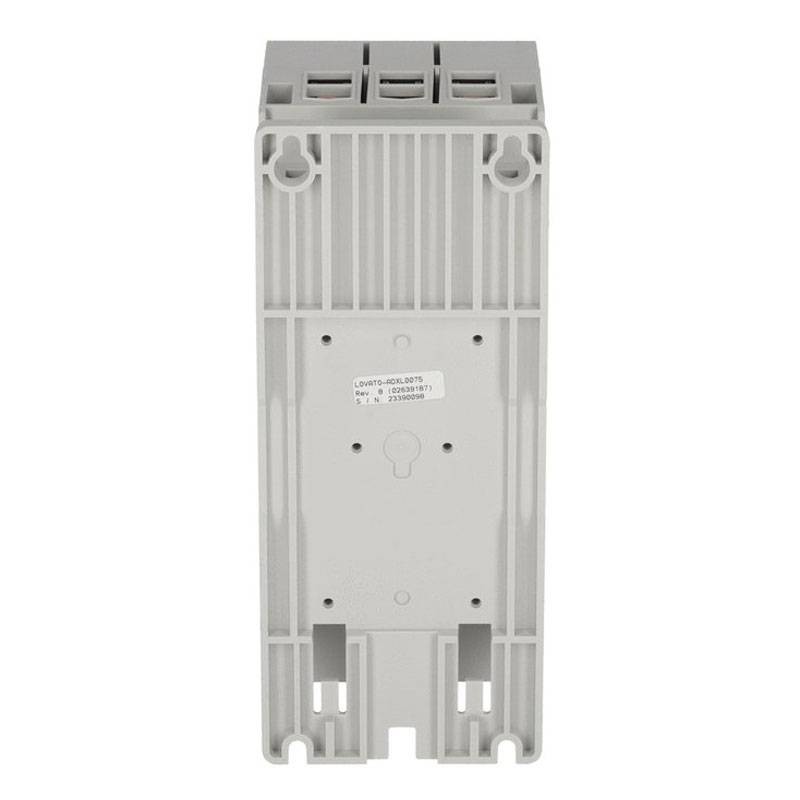

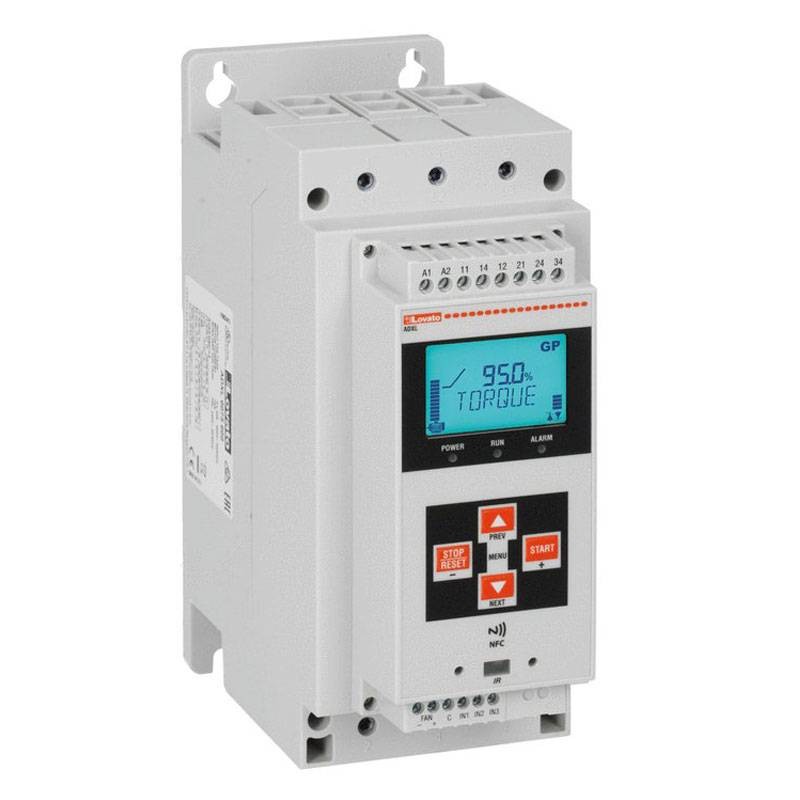

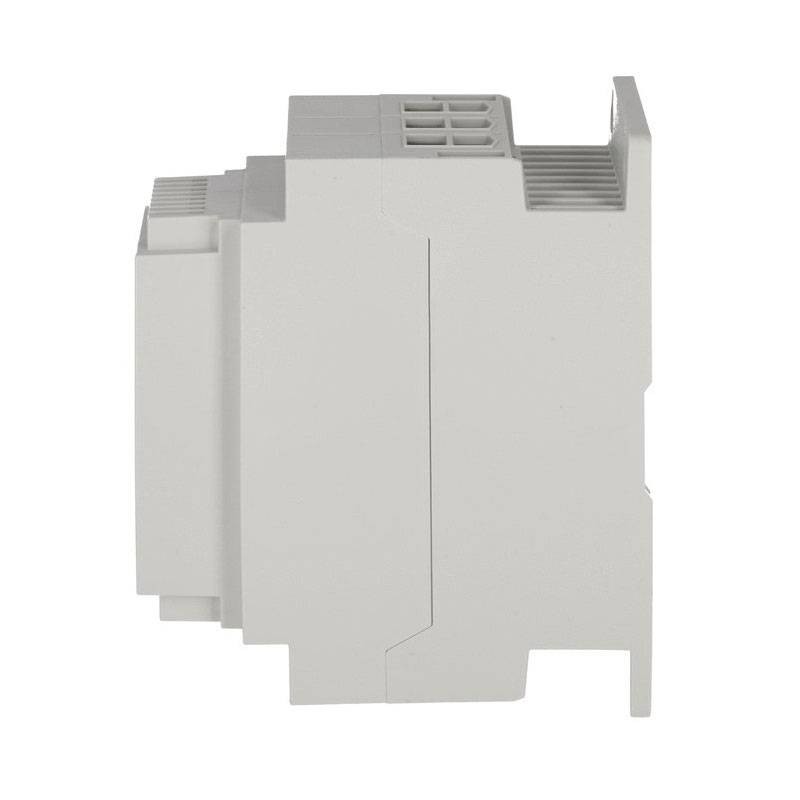

Lovato Soft Starter 60A 600V 2 Phase ADXL0060600
LOV ADXL0060600
8013975219782
The Lovato ADXL0060600 60A soft starter handles motor starting up to 37 kW with 2-phase control and built-in by-pass relay. It offers advanced protections, NFC for quick configuration and smart features for automation
-
Current rating: 60A
-
Operating voltage: 208/600VAC
-
Auxiliary power supply: 100/240VAC
-
2-phase control with integrated bypass relay
-
Built-in NFC for configuration from smartphones
-
Thermal current protection, torque control and kick start
-
Optical port and RS485 communication (optional)
-
PTC input and event log
€953.06
Items Available: 1
Lovato soft starter: Reliable motor starting control
The Lovato ADXL0060600 soft starter is designed to ensure smooth and safe starting of industrial motors by reducing mechanical stress and inrush currents. With a rated current of 60A and an operating voltage of 208 to 600VAC, the device is suitable for a wide range of industrial applications. The current-limited starting function, combined with the built-in thermal protection, protects the motor and connected equipment, extending the operating life of the system and improving overall system efficiency.
With a current rating of 60A, it can control motors up to:
-
15 kW at 230VAC
-
30 kW at 400VAC
-
37 kW at 500VAC
It is ideal for industrial applications, HVAC systems, pumps, and automated systems.
Smart configuration and intuitive diagnostics
With built-in NFC technology, the soft starter enables quick and easy configuration via smartphone, making it easy to set operating parameters in a matter of moments. In addition, the presence of an optical port enables immediate local diagnostics, making device status monitoring more efficient. In addition, the possibility of integrating an RS485 interface (optional) allows the soft starter to be connected to supervision and industrial automation systems, providing centralized, real-time management of the entire plant.
Smart configuration and advanced protection
Equipped with NFC, the device can be easily programmed via smartphone, with no need for external software or physical connections. In addition, it offers:
-
Thermal protection to prevent overloads
-
Torque control for smooth starts
-
Kick Start for resistive or high inertia loads
-
PTC input for motor thermal protection
-
Event log for diagnosis and predictive maintenance
Technical specifications of the Lovato Soft Starter
Electrical Specifications
| Item | Detail |
|---|---|
| Mains type | Three-phase |
| Rated voltage | 208...600 VAC |
| Auxiliary voltage (US) | 100...240 VAC |
| Rated frequency | 50/60 Hz |
| Rated starter current Ie | 60 A |
| Rated motor power IEC | 230V: 15 kW | 400V: 30 kW | 500V: 37 kW |
| Rated motor power UL | 220-240V: 20 HP | 380-415V: 30 HP | 440-480V: 40 HP | 550-600V: 50 HP |
| Number of controlled phases | 2 |
| Integrated bypass | Yes |
| Cooling system | Natural or forced (optional) |
| Rated insulation voltage Ui | 600 V |
Programming interface
| Item | Detail |
|---|---|
| Display | Backlit icon LCD |
| Programming with NFC | Yes |
| Optical port | Yes |
Start and stop adjustments
| Phase | Type |
|---|---|
| Starting | Torque ramp with current limit, Voltage ramp with current limit, Constant torque with current limit |
| Stop | Torque ramp, Voltage ramp, Freewheel stop |
Protections
| Type | Description |
|---|---|
| Auxiliary power supply | Voltage too low |
| Power supply | No power supply, Phase loss, Phase sequence, Frequency out of limit, Minimum and maximum voltage |
| Motor | Overload at startup (trip class 2, 10A, 10, 15, 20, 25, 30, 35, 40), Overload while running (class 2, 10A-30A), Locked rotor, Asymmetric current |
| Starter | Overcurrent, Overtemperature, Bypass failure, Shorted phase, Temperature sensor failure, Cooling fan failure, Maintenance request |
Functions
| Function | Availability |
|---|---|
| Integrated bypass | Yes |
| Built-in display and keypad | Yes |
| Languages | 6 |
| Measurement display | Yes |
| Torque control | Yes |
| Settable current limit | Yes |
| Dynamic braking | Yes |
| Kick start function | No |
| Electronic motor overload protection | Yes |
| Motor protection PTC input | Yes |
| Phase failure/inversion protection | Yes |
| Locked rotor protection | Yes |
| Thyristor overtemperature protection | Yes |
| Low load protection | Yes |
| Programmable alarms | Yes |
| Digital inputs | 3 |
| Analog inputs | 0 |
| Digital outputs | 3 |
| Analog output | 0 |
| Optical port for programming | Yes |
| Event log | Yes |
| Engine hour meter / startups | Yes / Yes |
| Date clock | Yes |
| Removable external keypad | No |
Inputs and Outputs
| Item | Detail |
|---|---|
| Number of digital inputs | 3 |
| Type of digital inputs | 2 inputs with dry contact + 1 input with dry contact or PTC (configurable) |
| Digital input functions | Programmable (motor start, motor stop, freewheel stop, motor preheat, command lock, alarm inhibit, thermal status reset, keypad lock, motor select, alarms) |
| Number of digital outputs | 3 |
| Configuration of digital outputs | 2 x 1 NO (SPST) + 1 C/O (SPDT) 2 x 1NO: 3A 250VAC / 3A 30VDC 1 x C/O: NO 5A 250VAC / 5A 30VDC NC 3A 250VAC / 3A 30VDC |
| Digital output functions | Programmable (line contactor, run, global alarm, limits, remote variable, Axx alarm, Axx user alarm, OFF) |
Environmental Conditions
| Item | Detail |
|---|---|
| Operating temperature | -20°C to +60°C (with current derating >40°C of 0.5%/°C) |
| Storage temperature | -30°C to +80°C |
| Maximum altitude | 1000 m without derating (above 1000 m with derating 0.5% per 100 m) |
| Relative humidity | < 80% |
| Pollution degree | 2 |
| Installation category | III |
Housing
| Item | Detail |
|---|---|
| Mounting | Screw mounting or 35 mm DIN rail with optional EXP8003 accessory |
| IP rating | IP00 |
| Dimensions (W x H x D) | 75 x 218 x 171.5 mm |
| Product weight | 2.1 kg |
Approvals and Compliance
| Item | Detail |
|---|---|
| Compliance | CSA C22.2 No. 14, IEC/EN 60947-1, IEC/EN 60947-4-2, UL508 |
| Approvals | cULus, EAC, RCM |
ETIM Classification
| Version | Code |
|---|---|
| ETIM 8.0 | EC000640 - Progressive Starter |
