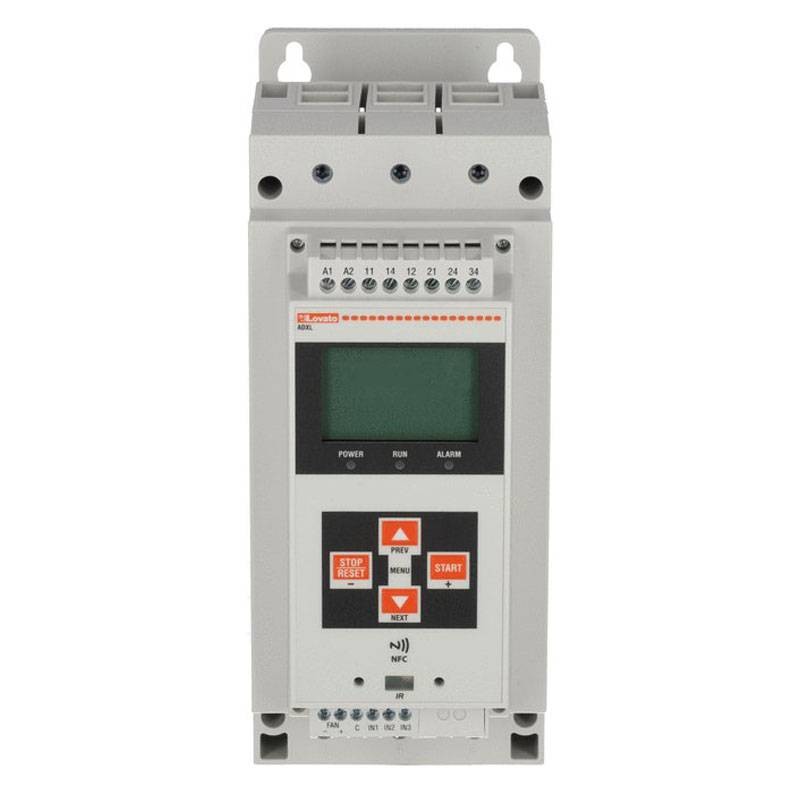

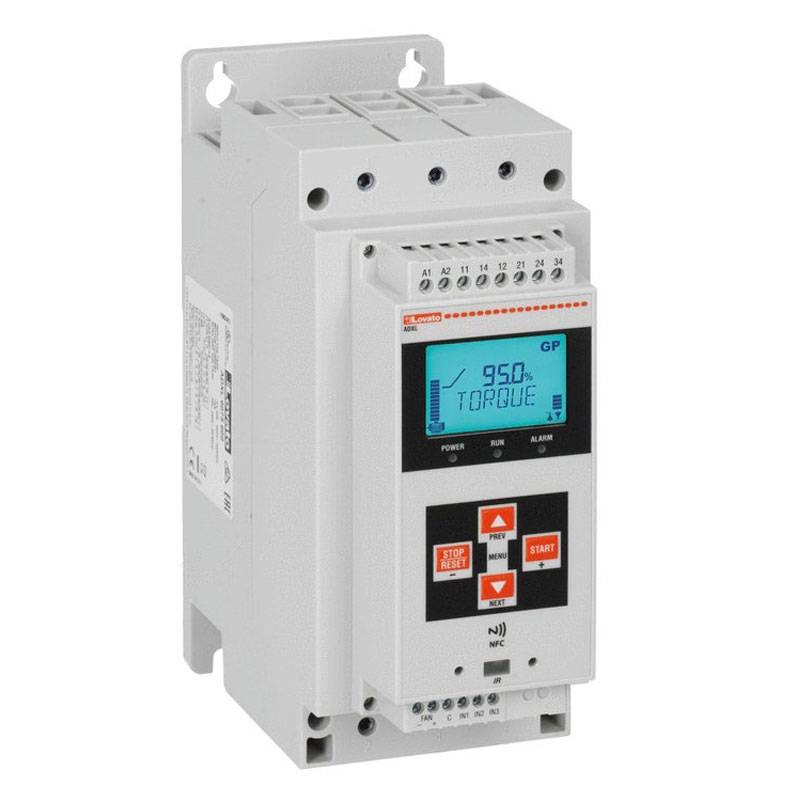

Lovato Soft Starter 115A 600V 2 Phase ADXL0115600
LOV ADXL0115600
8013975220283
The Lovato ADXL0115600 115A 2-phase controlled soft starter handles motors up to 75 kW with voltages up to 600VAC. Features built-in by-pass relay, NFC, advanced protections and wide connectivity.
-
Rated current 115A, operating voltage 208/600VAC
-
Control over 2 phases, advanced version with built-in by-pass relay
-
Current limited startup and thermal protection
-
Built-in NFC for quick configuration
-
Kick start function and torque control
-
PTC input, event log and optical port.
€1,361.52
Items Available: 1
Lovato soft starter: advanced motor starting control
The Lovato soft starter ADXL0115600 is designed to provide intelligent and reliable starting and stopping management of three-phase asynchronous electric motors. With two-phase control and a current rating of 115A, it helps reduce inrush currents and mechanical stress, extending the life of the motor and connected components. It is the ideal solution for industrial applications where high performance and built-in protections are required.
Built-in by-pass relay for maximum efficiency
The device has a built-in by-pass relay, which is automatically activated at the end of start-up, reducing energy losses and improving overall system efficiency. This avoids the use of additional external components, simplifying installation and keeping costs down.
Managed powers up to 75 kW
With a rated operating voltage of 208 to 600VAC, the soft starter can handle motors with powers up to:
-
37 kW at 230VAC
-
55 kW at 400VAC
-
75 kW at 500VAC
This broad compatibility makes it extremely versatile and suitable for many application contexts, from industrial automation to large HVAC systems and pumps.
Intelligent interfaces and functions
The ADXL soft starter has NFC functionality for quick configuration via smartphone, optical port for local communications, and supports RS485 communication (optional) for integration into supervisory and automation systems. Includes thermal current protection, Kick Start function for high starting loads, torque control, and PTC input for thermal motor monitoring.
Protections
| Type of protection | Details |
|---|---|
| Power supply protection | No power, phase loss, phase sequence, frequency out of limit, minimum and maximum voltage |
| Motor protection | Starting overload (trip class: 2, 10A, 10, 15, 20, 25, 30, 35, 40), Overload while running (trip class: 2, 10A, 10, 15, 20, 25, 30), Locked rotor, Current, Asymmetry |
| Starter protection | Overcurrent, Overtemperature, Bypass failure, Shorted phase, Temperature sensor failure, Cooling fan failure, Maintenance request |
Functions
| Function | Value |
|---|---|
| Integrated bypass | Yes |
| Built-in display and keypad | Yes |
| Languages | 6 |
| Measurement display | Yes |
| Torque control | Yes |
| Settable current limit | Yes |
| Dynamic braking | Yes |
| Kick start function | No |
| Electronic motor overload protection | Yes |
| Motor protection PTC input | Yes |
| Phase failure protection | Yes |
| Reverse phase protection | Yes |
| Protection from locked rotor | Yes |
| Thyristor overtemperature protection | Yes |
| Low load protection | Yes |
| Programmable alarms | Yes |
| Digital inputs | 3 |
| Analog inputs | 0 |
| Digital outputs | 3 |
| Analog output | 0 |
| Optical port for programming | Yes |
| Event log | Yes |
| Motor hour meter | Yes |
| Startup hour counter | Yes |
| Date clock | Yes |
| Removable external keypad | No |
Inputs and Outputs
| Item | Detail |
|---|---|
| Number of digital inputs | No. 3 |
| Type of digital inputs | 2 inputs with dry contact + 1 input with dry contact or PTC (configurable) |
| Digital input functions | Programmable (motor start, motor stop, freewheel stop, motor preheat, command lock, alarm inhibit, thermal status reset, keypad lock, motor select, alarm) |
| Number of digital outputs | No. 3 |
| Configuration of digital outputs | 2 x 1 NO (SPST) + 1 C/O (SPDT) Ratings: 2 x 1NO: 3A 250VAC / 3A 30VDC 1 x C/O: NO: 5A 250VAC / 5A 30VDC, NC: 3A 250VAC / 3A 30VDC |
| Digital output functions | Programmable (line contactor, run, global alarm, limits, remote variable, Axx alarm, Axx user alarm, OFF) |
General
| Item | Detail |
|---|---|
| Operating temperature | -20°C to +60°C (with current derating of 0.5%/°C above 40°C) |
| Storage Temperature | From -30°C to +80°C |
| Maximum altitude | 1000 m without derating (above 1000 m with current derating of 0.5% per 100 m) |
| Relative humidity | < 80% |
| Pollution degree | 2 |
| Installation category | III |

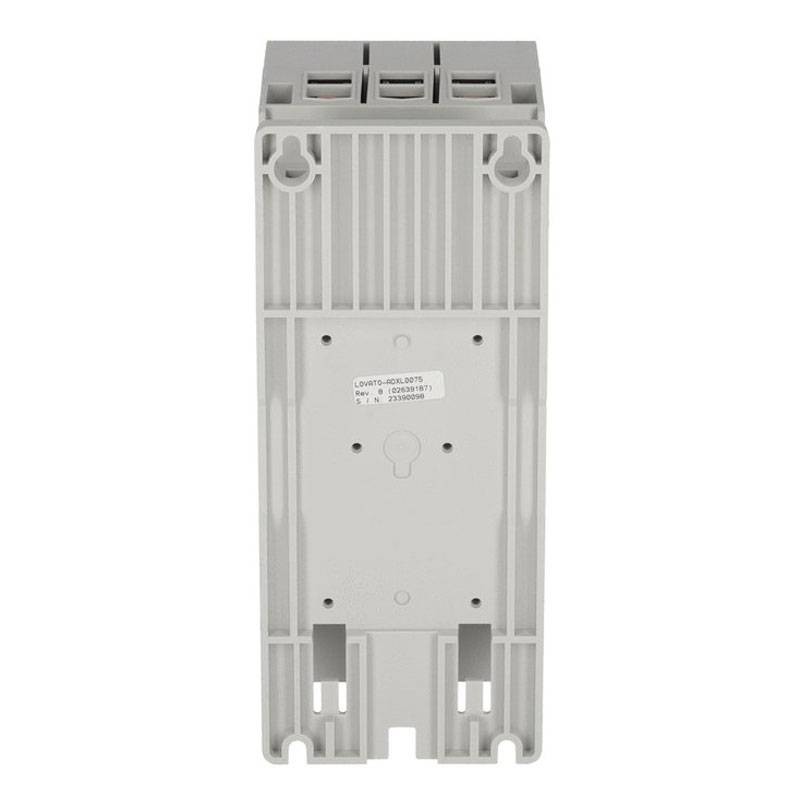

| Mounting | Screw mounting or 35 mm DIN rail (with optional EXP8003 accessory) |
| IP rating | IP00 |

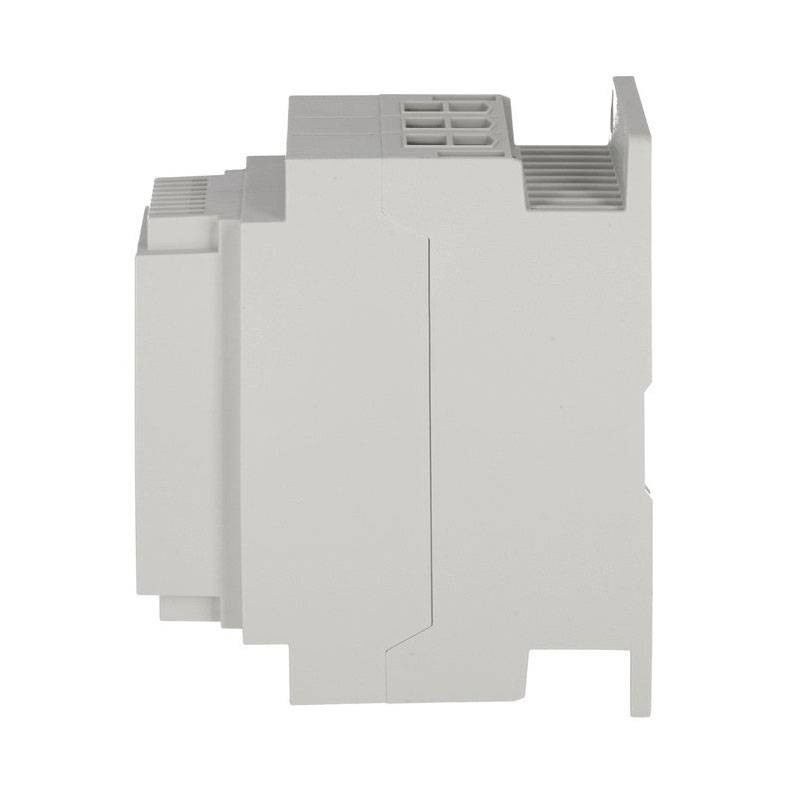

| Dimensions (W x H x D) | 95 x 226 x 182 mm |
| Weight | 2.9 kg |
There are no reviews
Data sheet
- Type: Engine control unit
- Voltage: 600VAC
- Amps: 115a
