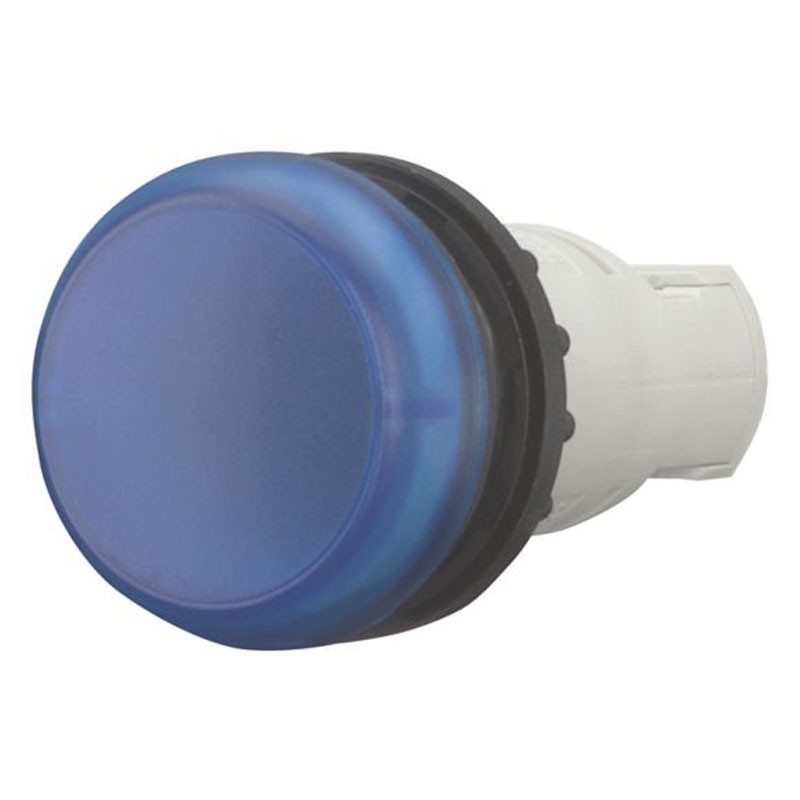

Eaton M22-LC-B Blue Wireline Indicator Light 216911
EAO 216911
4015082169114
Eaton M22-LC-B indicator light, with the following characteristics:
- Rated impulse withstand voltage [Uimp]: 4000V AC
- Rated insulation voltage 250V
- Overvoltage category/pollution degree: III/3
- Mounting hole diameter: 22.5 mm
- Design shape: flat
- Without luminous element
- Suitable for incandescent and neon lamps and LEDs up to 2.4 W
- With lamp holder BA 9s
- Lens color: blue
- Lens shape: round
- Type of protection (NEMA): 4X, 13
- Front ring color: chrome
Eaton M22-LC-B Blue Wireline Indicator Light 216911
€12.09
€12.09
Tax included
Tax included
Pay in installments with Klarna
Items Available: 30
Other technical features:
- Degree of protection: IP66, IP67, IP69
- Degree of protection (IP), front side: IP67/IP69K
- Connection to SmartWire-DT: no
- Compliance with standards: IEC/EN 60947 - VDE 0660
- Suitability for climates: humid heat, constant, according to IEC 60068-2-78 - humid heat, cyclic according to IEC 60068-2-30
- Degree of protection: IP66, IP67, IP69
- Ambient temperature at service day: -25/+70 °C
- Mounting position: optional
- Shock resistance 30 - Shock duration 11 ms half-wave according to IEC 60068-2-27 g
- Connection cross-sections: rigid 0.5 - 1.5 mm2
- Connection cross-sections: flexible: 0.5 - 1.5 mm2
There are no reviews
Data sheet
- Type:
- Buttons
- Degree of protection:
- IP67
