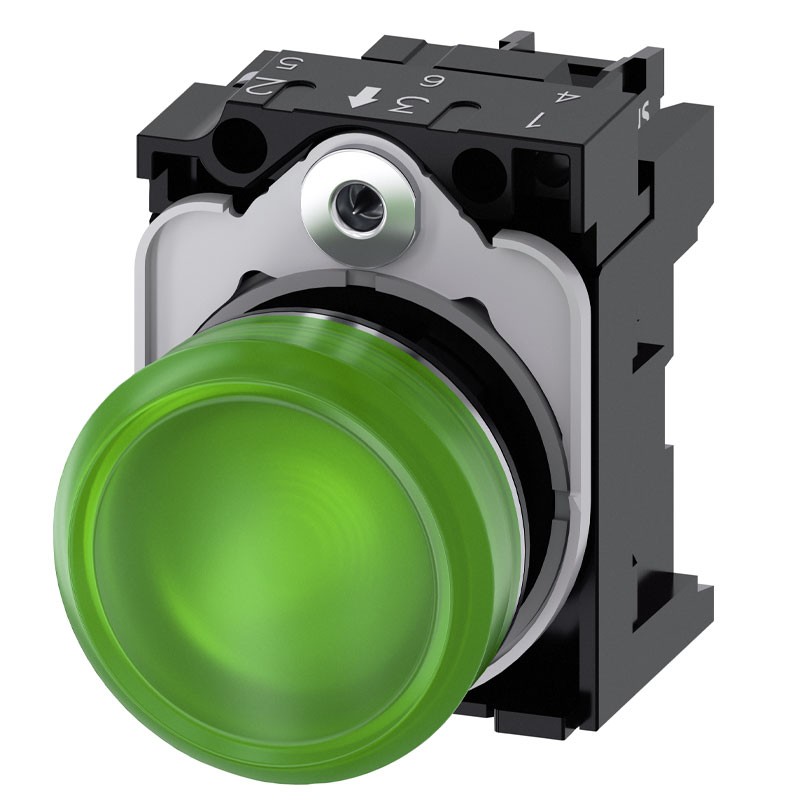

Siemens indicator light green LED 24V 22mm 3SU11526AA401AA0 3SU11526AA401AA0

Siemens
Siemens
SIE 3SU11526AA401AA0 4011209957022

Siemens green indicator/button light with the following characteristics:



  • Supply voltage of the light source with AC: 24V
  • Rated pollution degree: 3
  • Isolation voltage: 320V
  • Voltage type: AC/DC
  • Maximum inrush current of the LED module: 2 amps
  • Overvoltage resistance: 4 kV
  • Metal, polished, 22mm
  • Number of LED modules: 1
  • Light source color: green
  • Temperature during operation: -25/+70°C
  • Temperature during storage: -40/+80°C
  • Button shape/material: round/plastic
  • Degree of protection: IP66, IP67, IP69 (IP69K), IP20
  • NEMA shock resistance: 1, 2, 3, 3R, 4, 4X, 12, 13
  • Mounting method: face plate mounting
Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens indicator light green LED 24V 22mm 3SU11526AA401AA0 3SU11526AA401AA0
€11.89
€11.89

€11.89
Tax included
Calculate shipping cost
Items Available: 26
Further availability of the manufacturer
€11.89

Buy it within and receive it from Thursday, 8 January
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

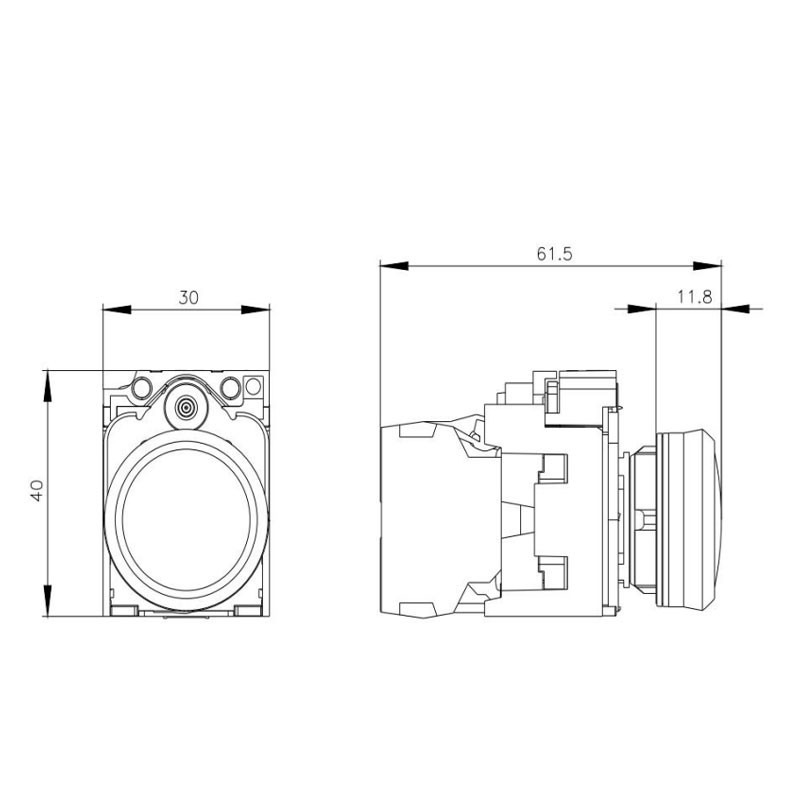

Dimensions:

  • Height 40 mm
  • Width 30 mm
  • Shape of installation opening round
  • Installation diameter 22.3 mm
  • Positive tolerance of installation diameter 0.4 mm
  • Installation height 11.8 mm
  • Installation width 29.5 mm
  • Installation depth 49.7 mm

There are no reviews

Data sheet

Type:
Buttons
Voltage:
24V
Degree of protection:
IP67
