Telemecanique Pulse Button Head White ZB4BA1

Schneider
Schneider
SNR ZB4BA1 3389110887457

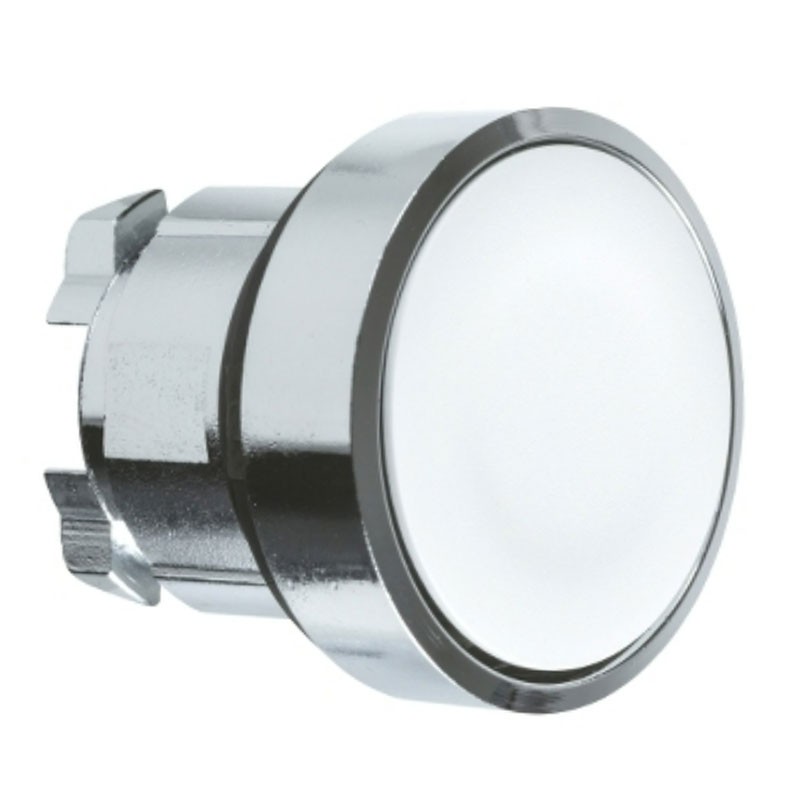

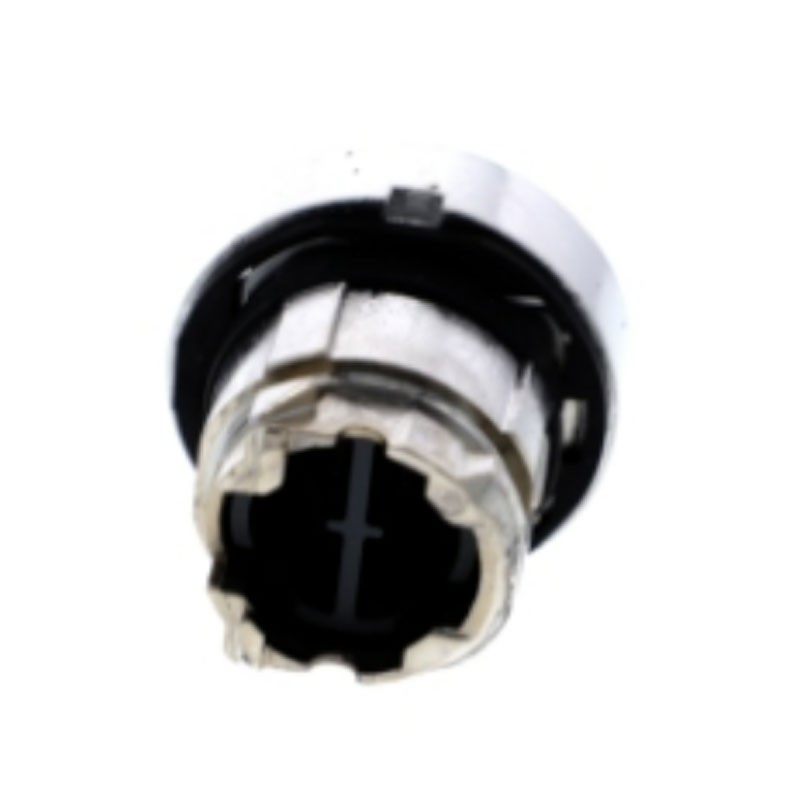

Schneider Telemecanique impulse button head, with the following features:

  • Head material: chrome-plated metal
  • Mounting diameter: 22 mm
  • Head type: standard
  • Head shape: circular
  • Operator type: impulse
  • Operator type: white filoghiera, unmarked

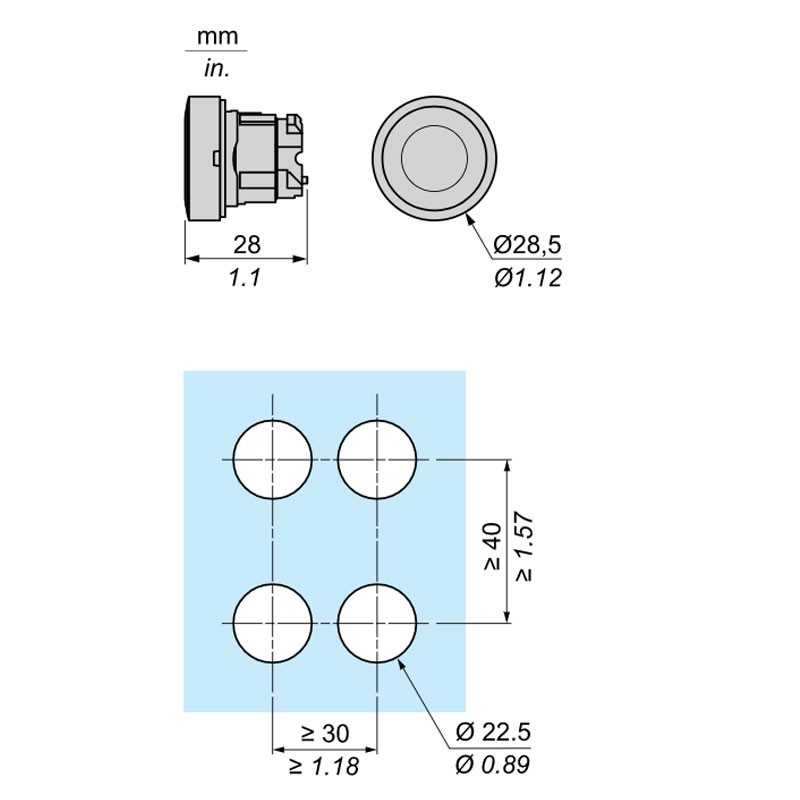

  • CAD total width: 29 mm
  • Total CAD height: 29 mm
  • Total CAD depth: 28 mm
Do you have questions about this product or did you not find what you were looking for? Ask us!
Telemecanique Pulse Button Head White ZB4BA1
€6.00
€6.00

€6.00
Tax included
Calculate shipping cost
Items Available: 15
Further availability of the manufacturer
€6.00

Buy it within and receive it from Tuesday, 24 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Other features:

  • Mechanical durability: 10000000 cycles
  • Protection treatment: TH
  • Storage temperature: -40...70 °C
  • Ambient operating temperature: -40...70 °C
  • Overvoltage category: Class I in accordance with IEC 60536
  • IP degree of protection: IP66 complying with IEC 60529 - IP67 - IP69 - IP69K
  • NEMA degree of protection: NEMA 13 - NEMA 4X
  • IK degree of protection: IK06 complying with IEC 50102
  • Vibration resistance: 5 gn (F= 2...500 Hz) complies with IEC 60068-2-6

Shock resistance:

  • 30 gn (duration = 18 ms) for half-sine wave acceleration complies with IEC 60068-2-27
  • 50 gn (duration = 11 ms) for half-sine wave acceleration complying with IEC 60068-2-27

Electrical composition code:

  • C1 for <9 single contacts in direct front pushbutton mounting
  • C2 for <9 single and double contacts in Direct front mounting on pushbutton
  • C11 for <3 single contacts in Direct front mounting on pushbutton
  • C15 for <1 single contacts in Direct front mounting on pushbutton

Reference Standards:

  • EN/IEC 60947-1
  • EN/IEC 60947-5-4
  • UL 508
  • EN/IEC 60947-5-5
  • JIS C8201-5-1
  • CSA C22.2 No 14
  • EN/IEC 60947-5-1
  • JIS C8201-1

Product Certifications:

  • LROS (Lloyds Register of shipping)
  • DNV
  • BV
  • CSA
  • UL listed / CSA
  • GL

There are no reviews

Data sheet

Type:
Buttons
