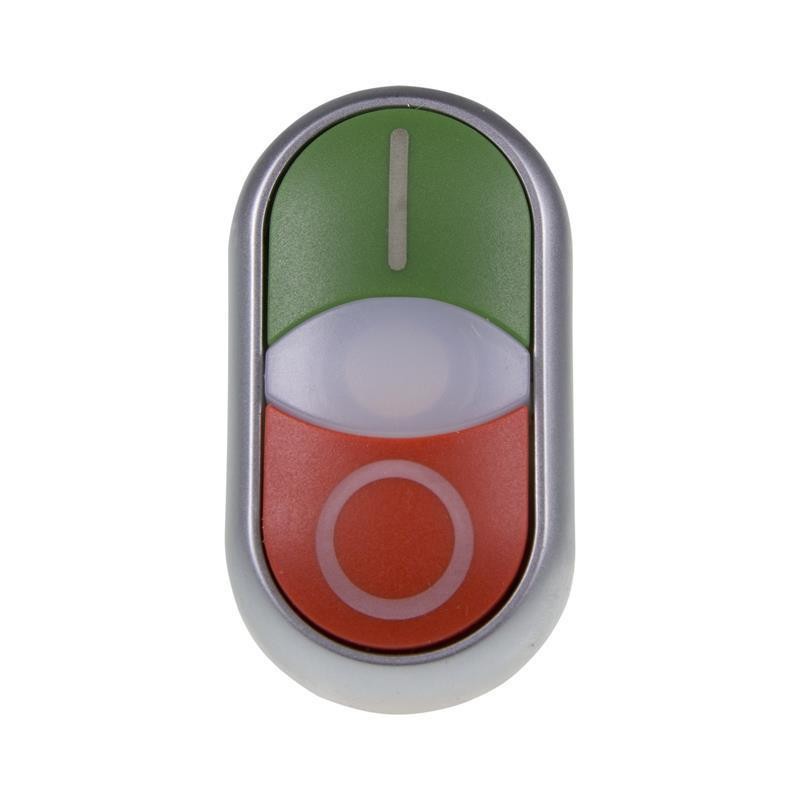

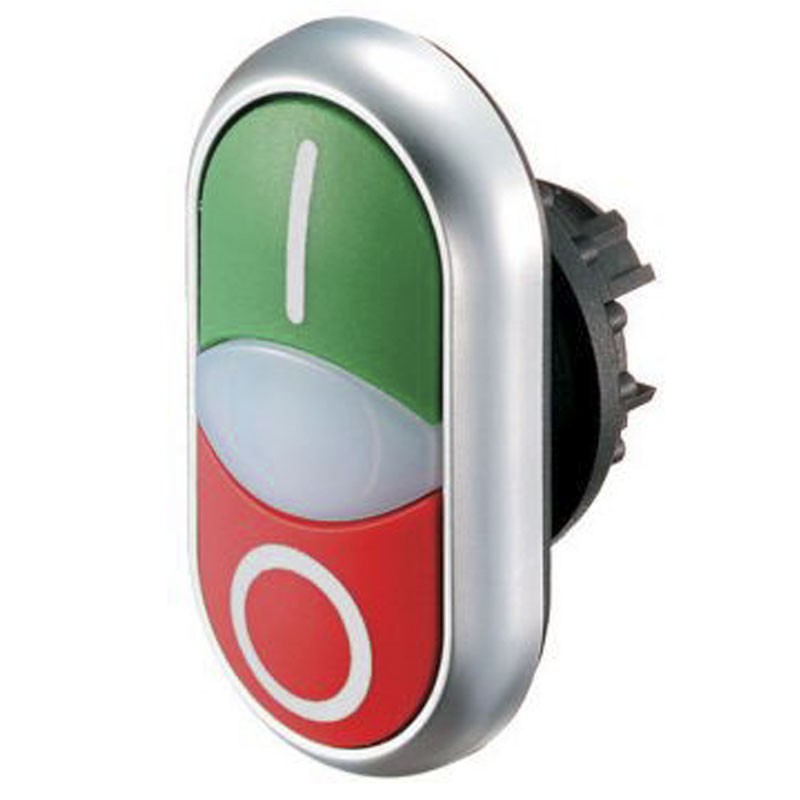

Eaton M22-DDL-GR-X1/X0 Dual Actuator Pushbutton Bright 216700

Eaton
Eaton
EAO 216700 4015082167004

Dual Eaton M22-DDL-GR-X1/X0pushbutton, plus green/white/red indicator light, with the following features:

  • Assortment: RMQ-Titan
  • Mounting hole diameter: 22.5mm diameter
  • Capsule: red/green, with inscription
  • Degree of protection: IP66
  • Titanium color front ring
  • Compliance with IEC/EN 60947 VDE 0660 standards
  • Mechanical life Maneuvers >0.2 x106
  • Maneuvering frequency man/h ≦ 3600
  • Actuating force NET ≦ 5
  • Illuminable
Do you have questions about this product or did you not find what you were looking for? Ask us!
Eaton M22-DDL-GR-X1/X0 Dual Actuator Pushbutton Bright 216700
€16.70
€16.70

€16.70
Tax included
Calculate shipping cost
Items Available: 9
Further availability of the manufacturer
€16.70

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical features:

  • Ambient temperature: in daytime -25+70°C - in storage -40/+80°C
  • Optional mounting position
  • Shock resistance 30: Shock duration 11 ms half-wave according to IEC 60068-2-27g
  • Number of control points 2
  • Oval lens shape
  • Flat button shape
  • With protective cover: no
  • Material of front ring plastic
  • Front ring color: titanium
  • NEMA protection type, 4X front side

There are no reviews

Data sheet

Type:
Buttons
Degree of protection:
IP66
