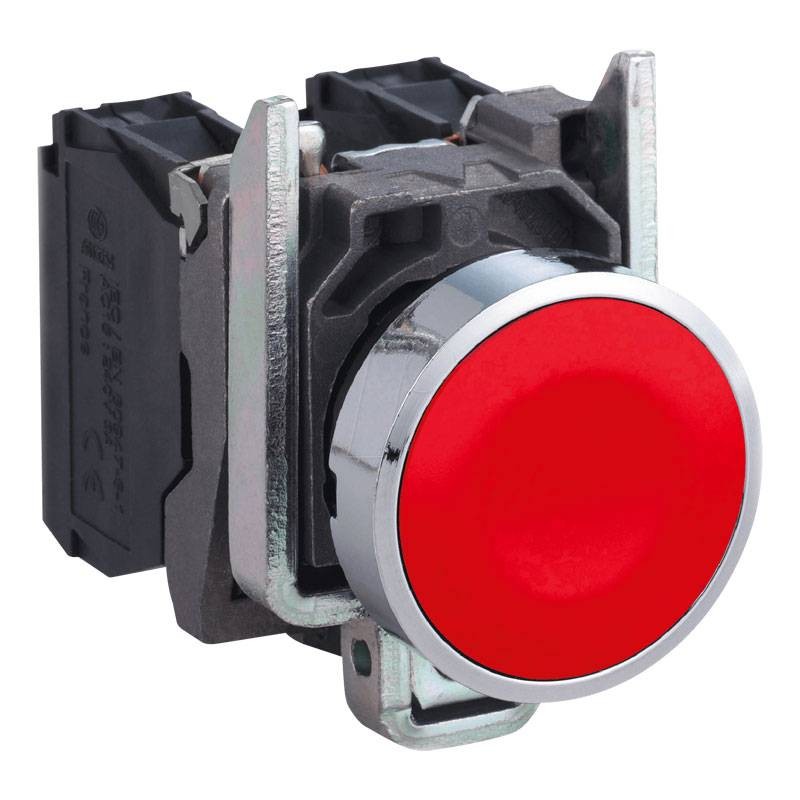

Telemecanique Full Red + 1NC Pushbutton XB4BA42
SNR XB4BA42
3389110886962
Schneider Telemecanique button, with the following features:
- Head material: chrome-plated metal
- Mounting base material: zamak
- Mounting diameter: 22 mm
- Head shape: circular
- Operator type: impulse
- Operator type: red filoghiera, unmarked
- Head type: standard
- Contact composition and type1 NC
- Contact operation: slow opening
- Resistance to high pressure washing: 7000000 Pa at 55 °C, distance: 0.1 m
- Contact use: standard contacts
Telemecanique Full Red + 1NC Pushbutton XB4BA42
€12.50
€12.50
Tax included
Tax included
Pay in installments with Klarna
Items Available: 31
Other technical features:
- Positive opening: with complies with EN/IEC 60947-5-1 appendix K
- Operating stroke: 1.5 mm (NC with change in electrical state), 4.3 mm (total stroke)
- Operating force: 3.5 N NC with change of electrical state
- Mechanical endurance: 10000000 cycles
- Tightening torque: 0.8 to 1.2 Nm in accordance with EN 60947-1
- Contact material: silver alloy (Ag/Ni)
- Short-circuit protection: 10A cartridge fuse type gG complying with EN/IEC 60947-5-1
- Conventional thermal current in air [Ith]: 10A complying with EN/IEC 60947-5-1
- Rated insulation voltage [Ui]: 600V (pollution degree 3) complies with EN/IEC 60947-1
- Rated impulse withstand voltage [Uimp]: 6 kV complying with EN/IEC 60947-1
- TH protection treatment
- Storage temperature: -40/+70 °C
- Ambient operating temperature: -40/+70 °C
- Overvoltage category: class I in accordance with IEC 60536
- IP degree of protection: IP66 complying with IEC 60529, IP67, IP69. IP69K
- NEMA degree of protection: NEMA 13, NEMA 4X
- IK degree of protection: IK06 complying with IEC 50102
- Vibration resistance: 5 gn (F= 2...500 Hz) complies with IEC 60068-2-6
Shock resistance:
- 30 gn (duration = 18 ms) for half-sine wave acceleration complies with IEC 60068-2-27
- 50 gn (duration = 11 ms) for half-sine wave acceleration in accordance with IEC 60068-2-27
Rated use current [Ie]:
- 3 A at 240 V, AC-15, A600 complying with EN/IEC 60947-5-1
- 6 A at 120 V, AC-15, A600 complying with EN/IEC 60947-5-1
- 0.1 A at 600 V, DC-13, Q600 complies with EN/IEC 60947-5-1
- 0.27 A at 250 V, DC-13, Q600 complies with EN/IEC 60947-5-1
- 0.55 A at 125 V, DC-13, Q600 complies with EN/IEC 60947-5-1
- 1.2 A at 600 V, AC-15, A600 complying with EN/IEC 60947-5-1
Electrical durability:
- 1000000 cycles, AC-15, 2 A at 230 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C
- 1000000 cycles, AC-15, 3 A at 120 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C
- 1000000 cycles, AC-15, 4 A at 24 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C
- 1000000 cycles, DC-13, 0.2 A at 110 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C
- 1000000 cycles, DC-13, 0.5 A at 24 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C
Electrical reliability:
- Λ < 10exp(-6) at 5 V and 1 mA in clean environment complies with EN/IEC 60947-5-4
- Λ < 10exp(-8) at 17 V and 5 mA in clean environment complying with EN/IEC 60947-5-4
Head shape (screw):
- Phillips head compatible with Philips no 1 screwdriver
- Phillips head compatible with pozidriv No 1 screwdriver
- Slotted compatible with plate Ø 4 mm screwdriver
- Slotted compatible with plate Ø 5.5 mm screwdriver
Connections-clamps:
- Screw clamp terminals, <= 2 x 1.5 mm² with cable end complying with EN/IEC 60947-1
- Screw-fixing terminals, 1 x 0.22...2 x 2.5 mm² without cable end complies with EN/IEC 60947-1
Dimensions and weight:
- height 47 mm
- width 30 mm
- depth 52 mm
- weight: 0.08 kg
Data sheet
- Type:
- Buttons
- Degree of protection:
- IP66
