Siemens green pushbutton flat 22mm 1NA 3SU11500AB401BA0
SIE 3SU11500AB401BA0
4011209958319
Siemens SIRIUS ACT green flat button, with the following characteristics:
- Insulation voltage rating 500V
- Pollution degree 3
- Voltage type of the operating voltage AC/DC
- Rated value of overvoltage resistance 6 kV
- Material: polished metal
- Diameter: 22 mm
- Number of control points 1
- Protection class IP IP66, IP67, IP69 (IP69K), of terminal IP20
- Degree of protection NEMA classification: 1, 2, 3, 3R, 4, 4X, 12, 13
- Material of the actuating element: plastic
- Outer diameter of the actuating element: 29.45mm
- Material of the holder: plastic
![](https://www.elettronew.com/47546-large_default/button-siemens-green-flat-22mm-1no-3su11500ab401ba0.jpg)

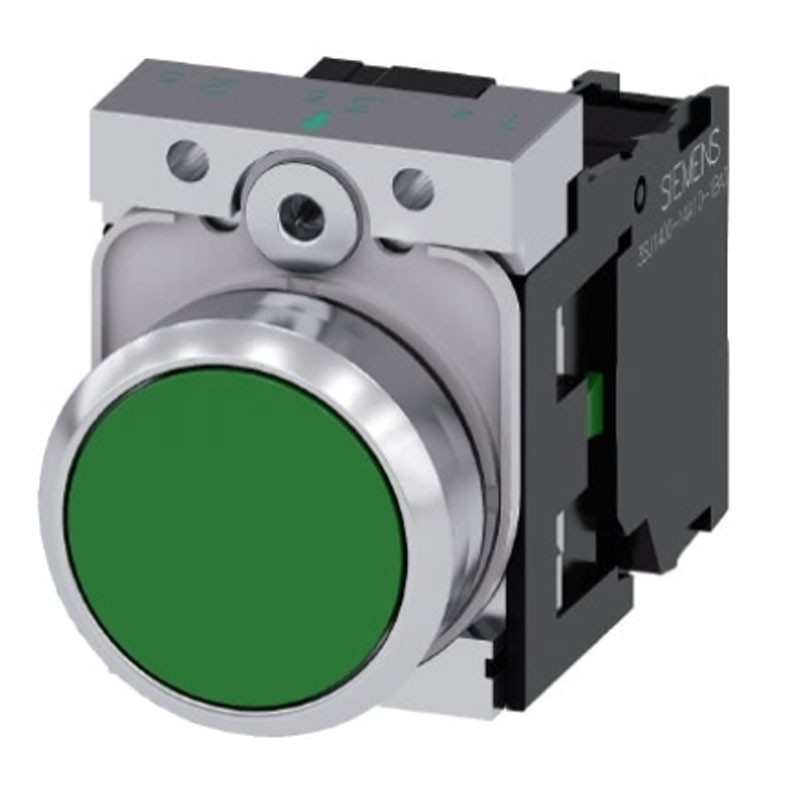

Siemens green pushbutton flat 22mm 1NA 3SU11500AB401BA0
€10.57
€10.57
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 36
Other technical features:
- Number of LED modules: 0
- Vibration resistance according to IEC 60068-2-6 10 ... 500 Hz: 5g
- Maximum operating frequency 3 600 1/h
- Mechanical lifetime (switching cycles) typical 10,000,000
- Electrical life (switching cycles) typical 10,000,000
- Shock resistance, according to IEC 60068-2-27: half-wave sine 15g / 11 ms
- Thermal current 10A
- Reference code according to IEC 81346-2 S
- Continuous current of feature C MCB 10A; for short-circuit current less than 400A
- Continuous current of DIAZED fast fuse 10A
- Continuous current of DIAZED fuse gG 10A
- Tightening torque of the screws in the bracket 1 ... 1.2 Nm
- Tightening torque with screw terminals 0.8 ... 0.9 Nm
- Ambient temperature: during operation -25/+70 °C
- Ambient temperature: during storage -40/+80 °C
- Mounting method: face plate mounting
Dimensions:
- Height 40 mm
- Width 30 mm
- Round shape of installation opening
- Mounting diameter 22.3 mm
- Positive tolerance of installation diameter 0.4 mm
- Installation height 11 mm
- Installation width 29.5 mm
- Installation depth 49.7 mm
Data sheet
- Type:
- Buttons
- Voltage:
- 500V
- Degree of protection:
- IP67
