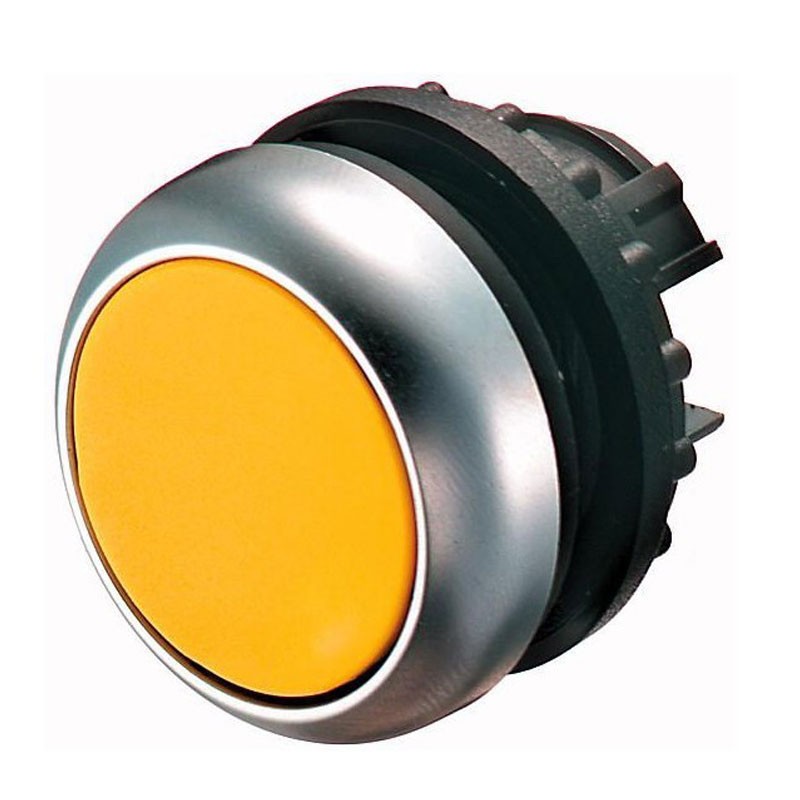

Eaton M22-D-Y Yellow Momentary Pushbutton Actuator 216598
EAO 216598
4015082165987
Eaton M22-D-Y yellow pushbutton/actuator., with the following features:
- Mounting hole diameter: 22.5 mm
- Capsule color: yellow without inscription
- Degree of protection: IP66, IP67, IP69
- Front ring: titanium color
- Not illuminable
- Conformity to standards: IEC/EN 60947 - VDE 0660
- Mechanical endurance [maneuvers]: >5 x 106
- Maneuvering frequency [man/h]: ≦ 3600
- Actuating force: ≦ 5 NET
- Suitability for climates: Damp heat, constant, according to IEC 60068-2-78, Damp heat, cyclic according to IEC 60068-2-30
![](https://www.elettronew.com/56112-large_default/actuator-push-button-eaton-m22-d-y-yellow-momentary-216598.jpg)
Eaton M22-D-Y Yellow Momentary Pushbutton Actuator 216598
€6.60
€6.60
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Out of stock
Incoming
Other technical features:
- Ambient temperature: daytime: -25/+70 °C
- Ambient temperature: storage: -40/+80 °C
- Mounting position: optional
- Impact resistance: 30 Impact duration 11 ms half-wave according to IEC 60068-2-27 g
- Lens shape: round
- Button shape: flat
- Front ring material: plastic
- NEMA protection type, front side: 4X
Data sheet
- Type:
- Buttons
- Degree of protection:
- IP67
