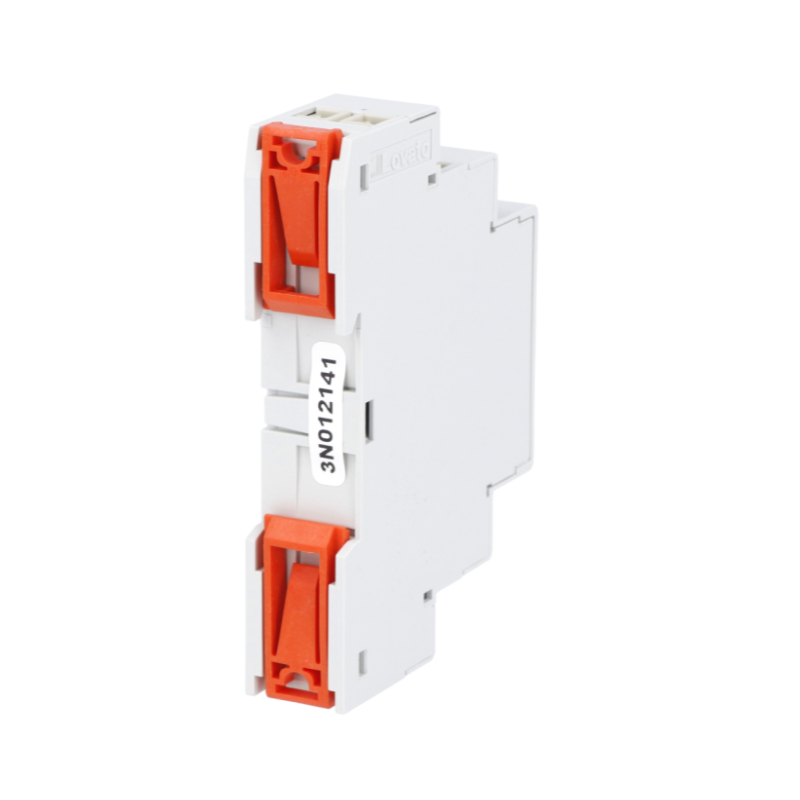

Lovato three-phase voltmetric relay for phase failure 1M 208/480V PMV10A440


LOV PMV10A440 8013975154656

Lovato voltmetric relay, for three-phase system without neutral, with the following characteristics:

  • Auxiliary voltage (Us): Self-powered
  • Description: phase failure and incorrect phase sequence
  • 1 module
  • Number of relays: 1
  • Signaling: 1 green LED for power on and trip
  • Operating voltage range: 0.85...1.1 Ue
  • Rated frequency Hz: 50/60 ±5%
  • Max. power consumption: 20VA
  • Maximum power dissipation: 2.2W
  • Rated voltage to be controlled UE: 208/408 Vac
  • Rated insulation voltage Ui: 480V
  • Rated impulse withstand voltage (Uimp): kV 6
  • Withstand voltage at operating frequency: kV 4
  • Trip time: s 0.06
  • Reset time: s 0.5
  • Hysteresis at reset 5%
Request info about this product

Lovato three-phase voltmetric relay for phase failure 1M 208/480V PMV10A440

€68.74
€68.74

Lovato three-phase voltmetric relay for phase failure 1M 208/480V PMV10A440

€68.74
Tax included
klarna Pay in installments with Klarna
qty

Lovato three-phase voltmetric relay for phase failure 1M 208/480V PMV10A440

€68.74

Buy it within and receive it from Friday, 12 April
Two-year warranty
Secure Payment
Easy return within 14 days

Other technical characteristics:

  • Instantaneous trip for Ue: Voltage <70% Ue
  • Recovery type: automatic
  • Repeatability error: <±1%
  • Tripping time for phase failure: ms 60
  • Contact configuration: 1 in exchange
  • Rated AC operating voltage (IEC): 250 VAC
  • Maximum switching voltage VAC: 400
  • Conventional thermal free air current Ith IEC: 8A
  • Designation according to UL/CSA and IEC/EN 60947-5-1: B300
  • Electrical life (at rated load): 100000 cycles
  • Mechanical life: cycles 3000000
  • Connections: screw type
  • Operating temperature: -20/+60°C
  • Storage temperature: -30/+80°C
  • Material: self-extinguishing polyamide
  • Mounting: 35mm DIN rail (IEC / EN 60715)
  • Degree of protection (IEC): IP40 front; IP20 on terminals

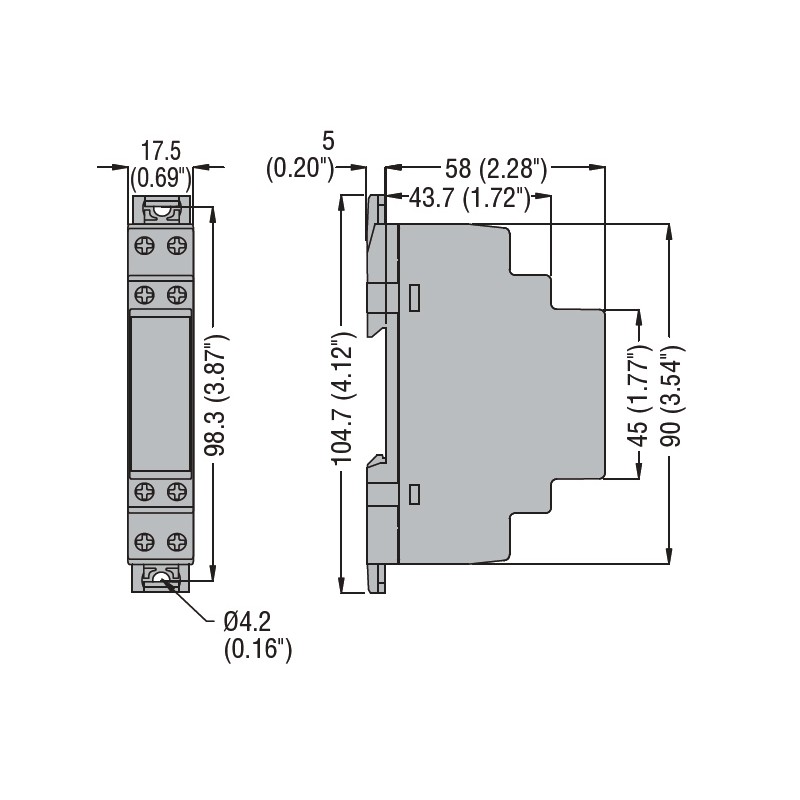

  • Dimensions in mm (W x H x D): 17.5 x 104.7 x 63
  • Weight: 50 grams

Data sheet

Type:
Voltage detectors
