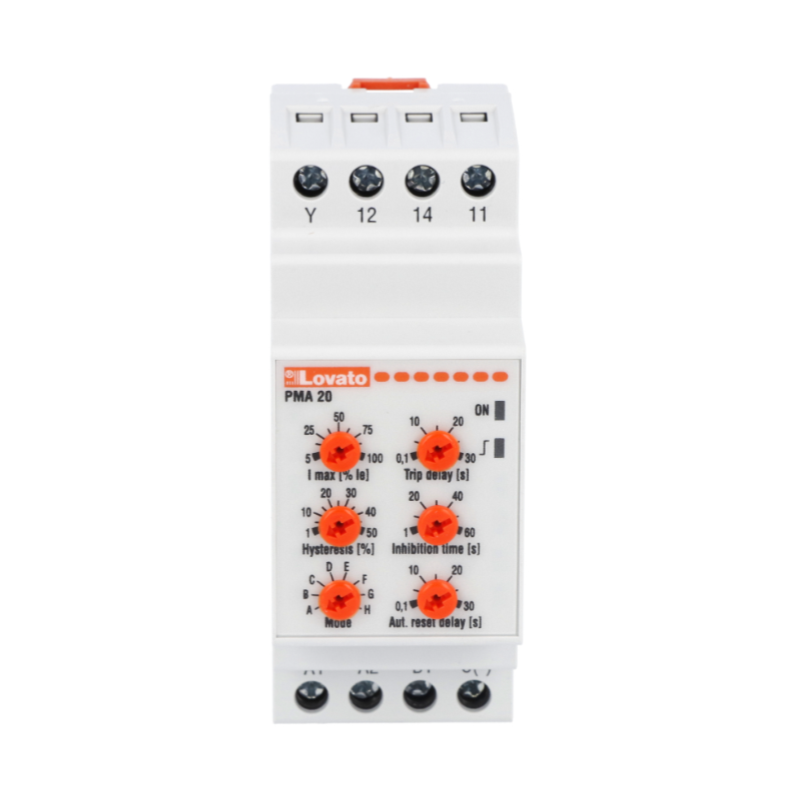

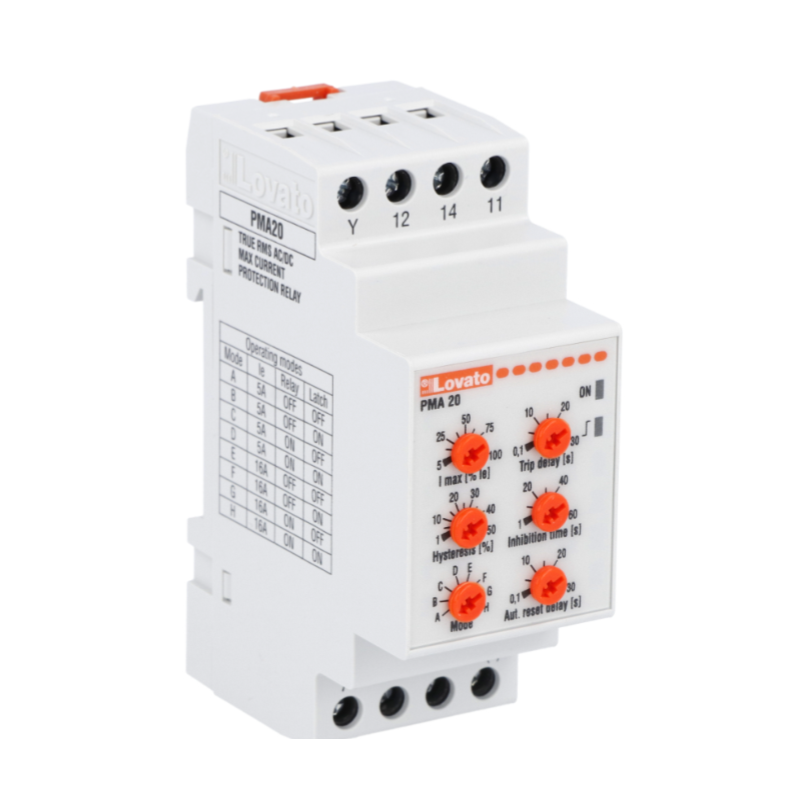

Lovato single-phase amperometric relay 5/16A 24-240V 2 modules PMA20240


LOV PMA20240 8013975172810

Lovato single-phase maximum current AC/DC multiscale current relay with the following characteristics:

  • Auxiliary voltage (Us); 24...240VAC/DC
  • Operating voltage range: 0.85...1.1 Us
  • Rated frequency: 50/60 HZ ±5%
  • Maximum power consumption: 3.2VA
  • Maximum power dissipation: 1.6W
  • Rated current (Ie) A: 5 or 16
  • Switching: Direct or via current transformer
  • Current set-point (% Ie): Max % 5...100
  • Reset type: Automatic or manual
  • External input: Reset/inhibit
  • Repeatability error: % ±1% with constant parameters
  • Relay status: Normally energized / de-energized (selectable)
Request info about this product

Lovato single-phase amperometric relay 5/16A 24-240V 2 modules PMA20240

€120.28
€120.28

Lovato single-phase amperometric relay 5/16A 24-240V 2 modules PMA20240

€120.28
Tax included
klarna Pay in installments with Klarna
qty

Lovato single-phase amperometric relay 5/16A 24-240V 2 modules PMA20240

€120.28

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

Other technical features:

  • Contact configuration: 1 in exchange
  • Rated AC operating voltage (IEC): 250vac
  • Maximum switching voltage: 400vac
  • Conventional thermal free air current Ith IEC: 8A
  • Designation according to UL/CSA and IEC/EN 60947-5-1 : B300Electrical life (at rated load) 100000 cycles
  • Mechanical life: 30000000 cycles
  • Signaling: 1 green LED for power on/inhibit and 1 red LED for trip
  • Terminal tightening torque: max Nm 0.8 - max Ibin 7
  • Rated insulation voltage Ui: 415V
  • Rated impulse withstand voltage (Uimp): kV 4
  • Withstand voltage at operating frequency: kV 2.5
  • Operating temperature: -20/+60°C
  • Storage temperature: -30/+80°C
  • 2 modules
  • Material: self-extinguishing polyamide
  • Mounting: DIN 43880 modular housing
  • Degree of protection (IEC): IP40 front; IP20 on terminals

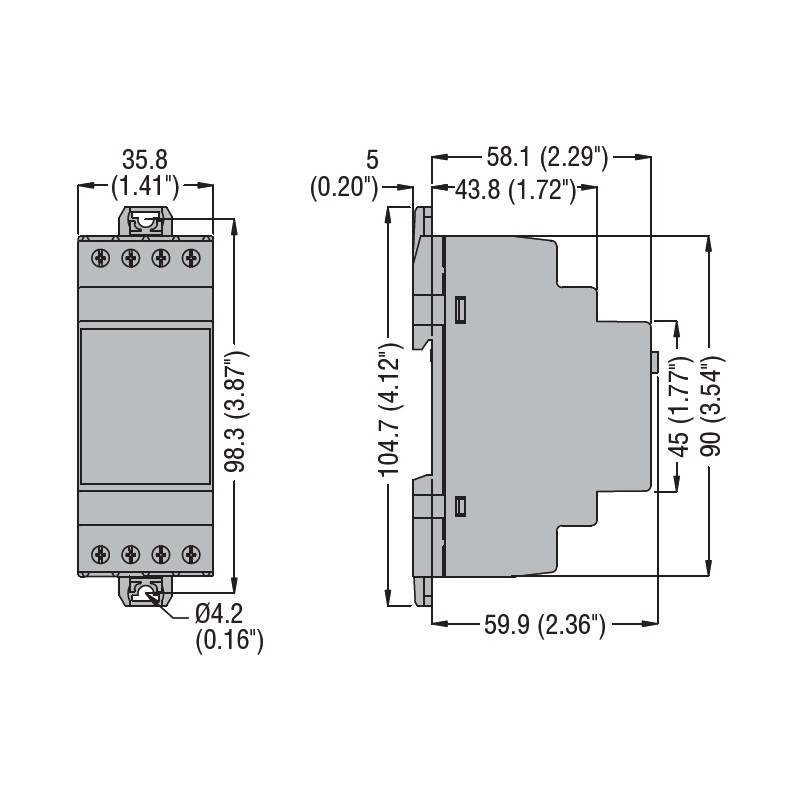

  • Dimensions (W x H x D) mm: 35.8 x 104.7 x 64.9

Data sheet

Type:
Voltage detectors
