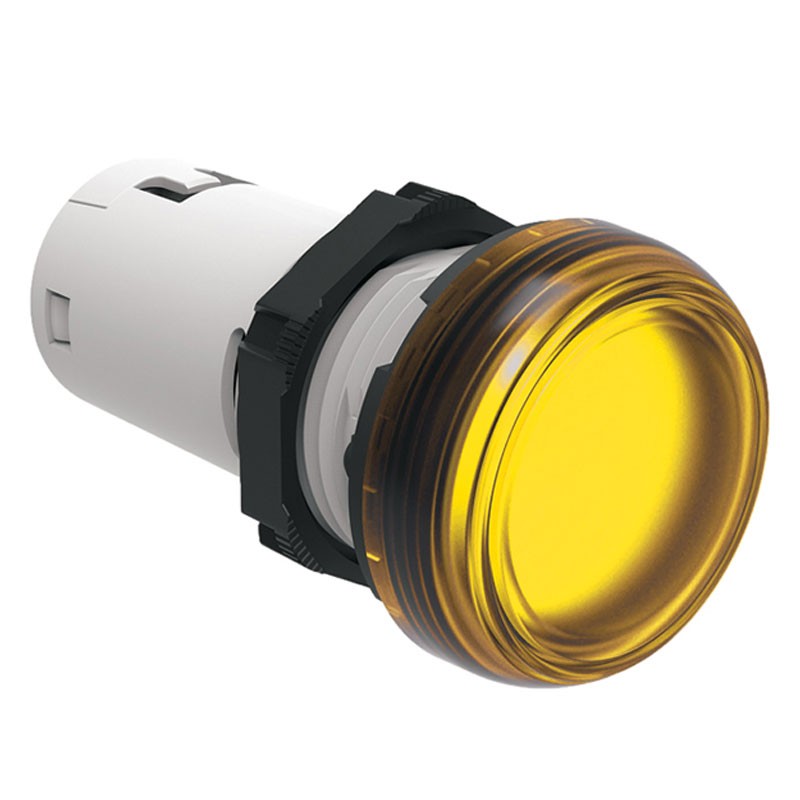

Lovato monoblock LED indicator light Yellow LED 230V LPMLM5


LOV LPMLM5 8013975225233

Lovato one-piece LED steady light indicator with the following characteristics:




  • Light color: yellow
  • Material: polyamide
  • Degree of protection (IEC): IP66, IP67, IP69K front; IP20 back
  • Rated frequency: 50-60 Hz
  • Supply voltage (AC): 230V (-15% ... +10% Ue)
  • Electrical service life: >30000 hours
  • Maximum terminal tightening torque: Nm 0.8
  • Screw connections: Screw termination
  • Conductor cross section AWG/kcmil: min 18 - max 16
  • IEC: max mm² 2.5
  • Fastening: 22mm dia. fastening ring nut
  • Weight: 24 grams approx.
  • Degree of protection (UL): Type1, 2, 3R, 4, 4X, 12, 12K on the front side
  • Operating temperature: -25/+70°C
Request info about this product

Lovato monoblock LED indicator light Yellow LED 230V LPMLM5

€8.52
€8.52

Lovato monoblock LED indicator light Yellow LED 230V LPMLM5

€8.52
Tax included
klarna Pay in installments with Klarna
qty

Lovato monoblock LED indicator light Yellow LED 230V LPMLM5

€8.52

Buy it within and receive it from Thursday, 11 April
Two-year warranty
Secure Payment
Easy return within 14 days

Data sheet

Type:
Buttons
