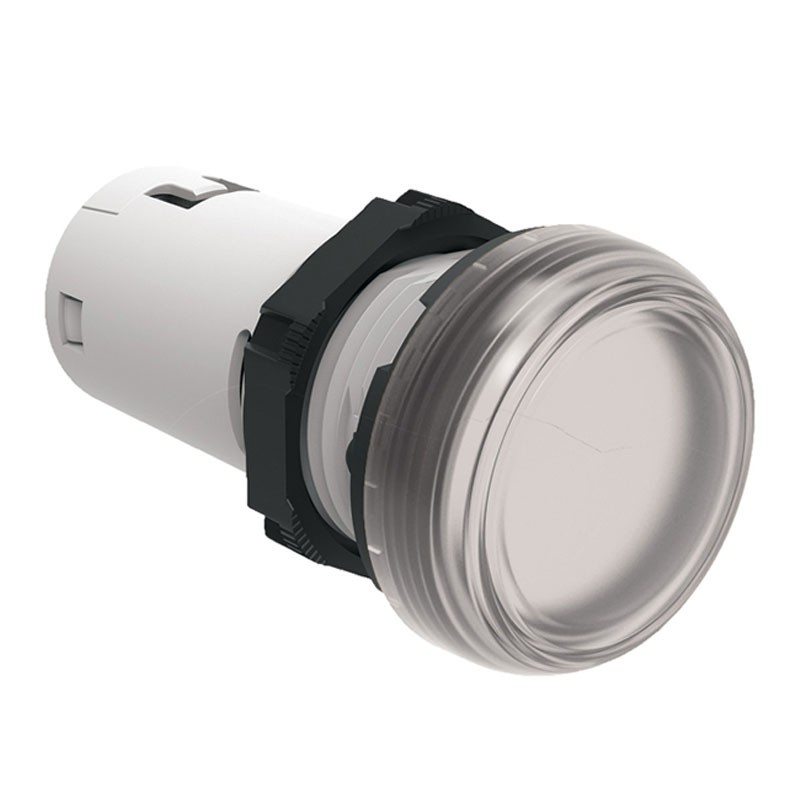

Lovato Monoblock LED Indicator Light Transparent LED 24V LPMLB7


LOV LPMLB7 8013975225103

Lovato integrated one-piece LED indicator/lamp with the following features:

  • Supply voltage (AC): 24V (-15% ... +10% Ue)
  • Supply voltage (DC): 24V (-15% ... +10% Ue)
  • Rated frequency 50/60 Hz
  • Light color: transparent
  • Material: polyamide
  • IEC degree of protection : IP66, IP67 and IP69K at the front; IP20 at the back
  • Electrical life hours: >30000
  • Tightening torque for terminals max: Nm 0.8
Request info about this product

Lovato Monoblock LED Indicator Light Transparent LED 24V LPMLB7

€7.12
€7.12

Lovato Monoblock LED Indicator Light Transparent LED 24V LPMLB7

€7.12
Tax included
klarna Pay in installments with Klarna
qty

Lovato Monoblock LED Indicator Light Transparent LED 24V LPMLB7

€7.12

Buy it within and receive it from Monday, 22 April
Two-year warranty
Secure Payment
Easy return within 14 days

Other technical features:

  • Lovato series
  • Screw terminals: screw termination
  • Conductor cross section AWG/kcmil: min 18 - max 16
  • IEC: max mm² 2.5
  • Fixing: Ø22mm ring fixing
  • Weight: 21 grams
  • UL rating: Type 1, 2, 3R, 4, 4X, 12, 12K on the front side
  • Operating temperature: -25/+70°C

Data sheet

Type:
Buttons
