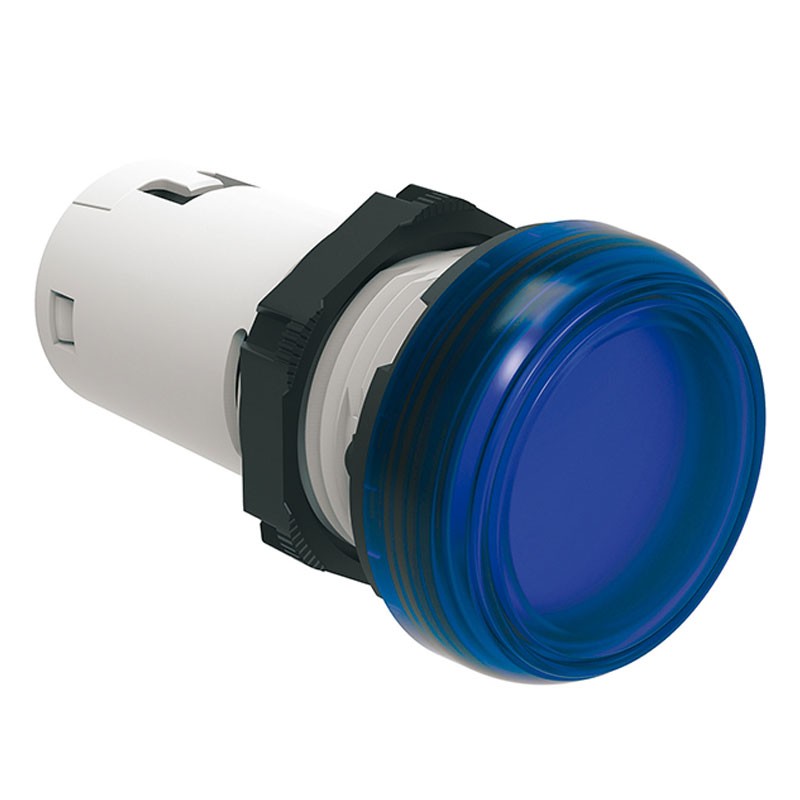

Lovato Monoblock Blue LED Indicator Light 24V LPMLB6


LOV LPMLB6 8013975225097

Lovato integrated one-piece LED indicator/lamp with the following features:

  • Supply voltage (AC): 24V (-15% ... +10% Ue)
  • Supply voltage (DC): 24V (-15% ... +10% Ue)
  • Rated frequency 50/60 Hz
  • Light color: blue
  • Material: polyamide
  • IEC degree of protection : IP66, IP67 and IP69K on the front; IP20 on the back
  • Electrical life hours: >30000
  • Tightening torque for terminals max: Nm 0.8
Do you have questions about this product or did you not find what you were looking for? Ask us!

Lovato Monoblock Blue LED Indicator Light 24V LPMLB6

€7.12
€7.12

Lovato Monoblock Blue LED Indicator Light 24V LPMLB6

€7.12
Tax included

Lovato Monoblock Blue LED Indicator Light 24V LPMLB6

€7.12

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days

Other technical features:

  • Lovato series
  • Screw terminals: screw termination
  • Conductor cross section AWG/kcmil: min 18 - max 16
  • IEC: max mm² 2.5
  • Fixing: Ø22mm ring fixing
  • Weight: 21 grams
  • UL rating: Type 1, 2, 3R, 4, 4X, 12, 12K on the front side
  • Operating temperature: -25/+70°C

Data sheet

Type:
Buttons
Voltage:
24V
Degree of protection:
IP67
