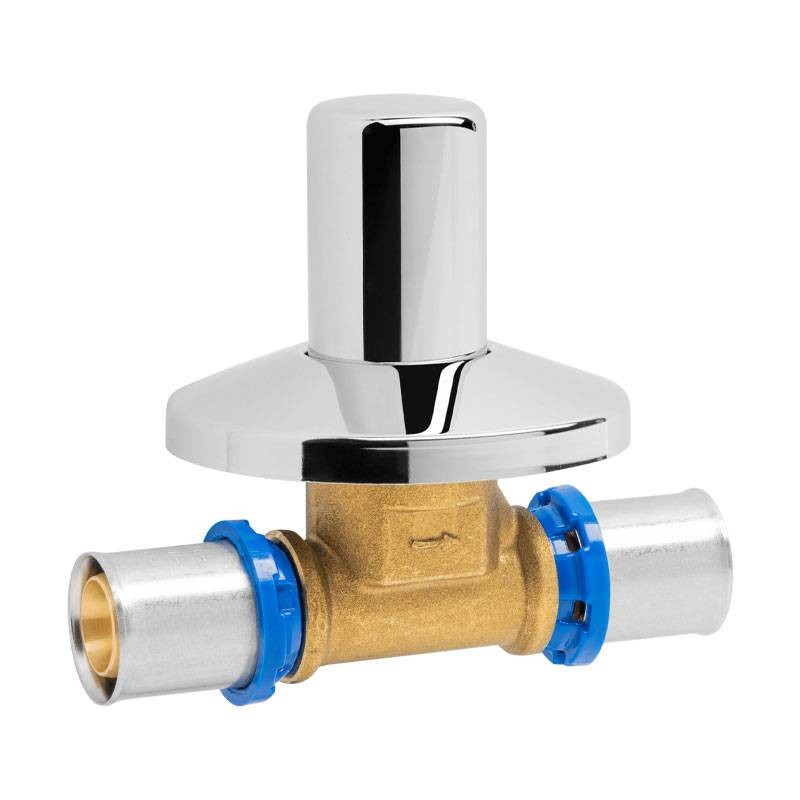

Ape Recessed Press Fitting D 20 mm ARL6000220
55X ARL6000220
8033708135806
Press fitting for multilayer pipe with built-in faucet Ape APL 60 with the following characteristics:
- Diameter: 20 mm
- Material: brass

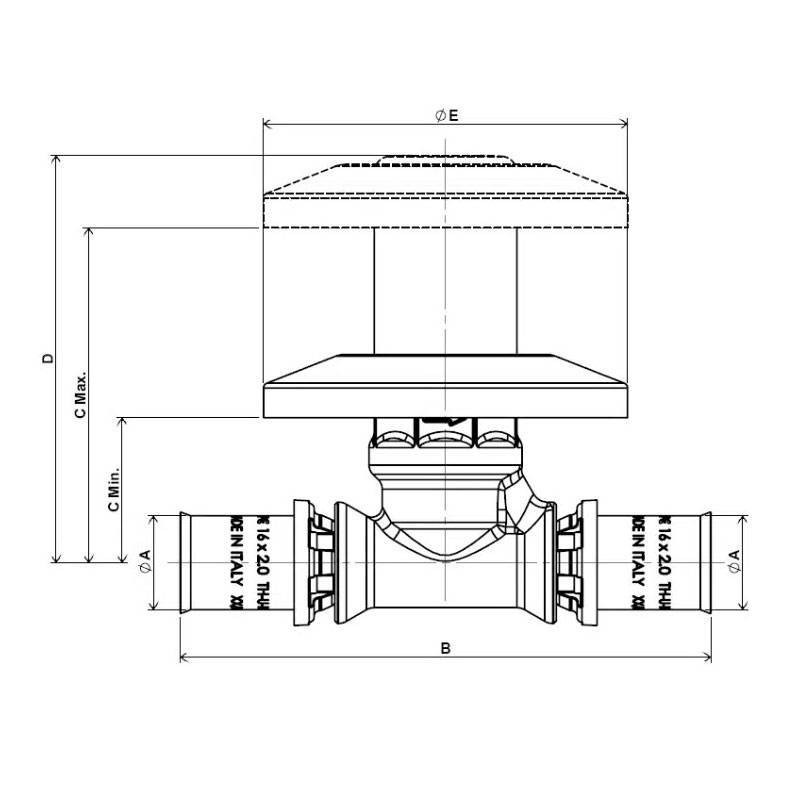

- Dimensions: 20x100.4x27.5x63.49x77.2 (A-B-C-D-E)
Field of application: Plumbing and heating systems. Use fluid: Potable water, technical water and glycol water.
€11.12
Items Available: 113
: 50
APL series press fittings, made in accordance with UNI EN ISO 21003-3, UNI EN 1254-3 and DM 174, are designed and manufactured to increase sealing characteristics and reduce assembly time, thus facilitating the installer in installation. Equipped with a double o-ring seal and a polyamide ferrule to support the pipe-tightening sleeve, they are used in hydro-thermo-sanitary installations.
Unlike compression fittings, the coupling of press fittings has the special characteristic of being immovable: this means that, if pressed properly, the APL fitting undergoes permanent deformation that guarantees tightness over time. Precisely for this reason, press-fit coupling is the only system used and guaranteed in undercutting installation.
Features:
- Field of application: Hydro-thermal sanitary systems
- Application fluid: Potable water, technical water and glycol water
- Percentage of glycol: max 30%
- Temperature range: -25°C to 120°C
- Operating pressure: max 16 bar
- Type of pipe: multilayer PE-Xb/AL/PE-Xb (in accordance with UNI 21003 standard)
There are no reviews
Data sheet
- Diameter: 20mm
- Type: Fittings
- Material: Brass
