Ape Recessed Press Fitting D 16 mm ARL6000110

Ape Raccorderie
Ape Raccorderie
55X ARL6000110 8033708135790

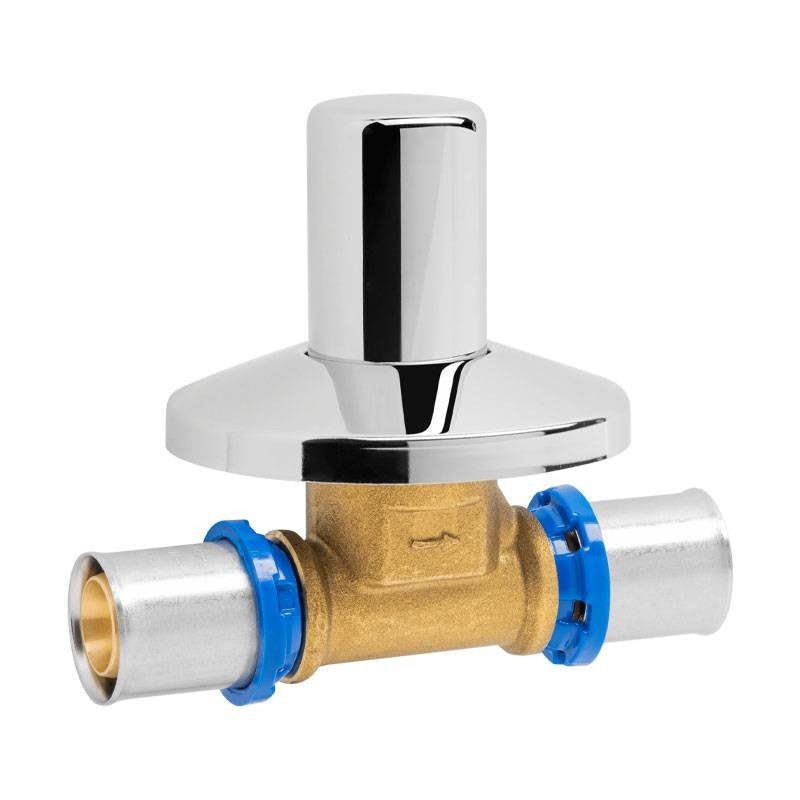

Ape Press fitting for multilayer pipe with built-in faucet APL 60 with the following characteristics:



  • Diameter: 16 mm
  • Material: brass

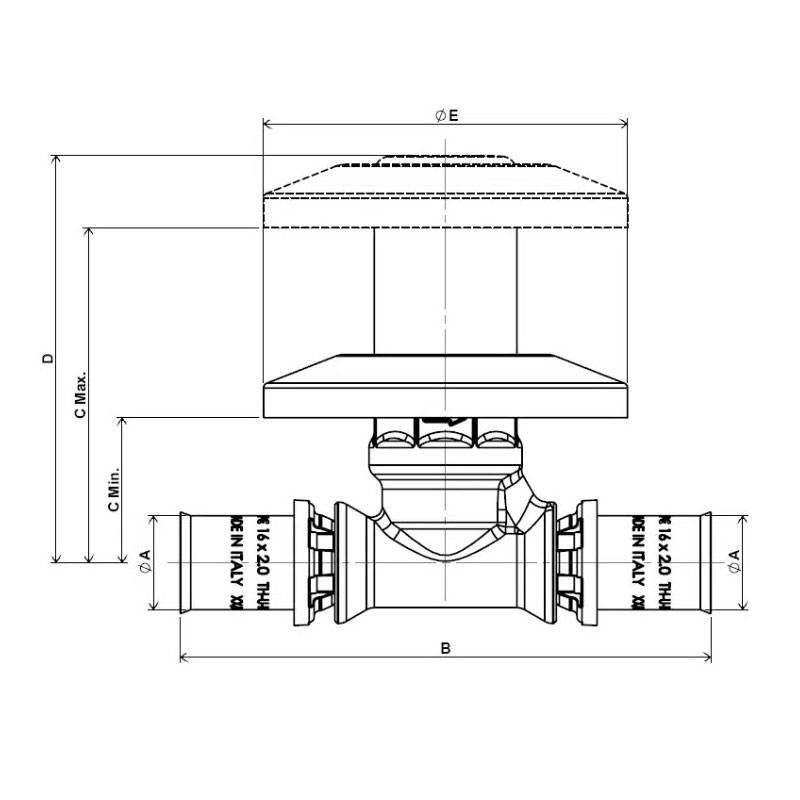

  • Dimensions: 16x100.6x27.5x63.49x77.2 (A-B-C-D-E)



Field of application: Plumbing and heating systems. Use fluid: Potable water, technical water and glycol water.

Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Ape Recessed Press Fitting D 16 mm ARL6000110
€10.74
€10.42
€10.42

Lowest price in 30 days:
€10.74
Save 3%
€10.42
Tax included
Calculate shipping cost
Offer expires in
Items Available: 65
Further availability of the manufacturer
€10.42

Buy it within and receive it from Friday, 30 January
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

APL series press fittings, made in accordance with UNI EN ISO 21003-3, UNI EN 1254-3 and DM 174, are designed and manufactured to increase sealing characteristics and reduce assembly time, thus facilitating the installer in installation. Equipped with a double o-ring seal and a polyamide ferrule to support the pipe-tightening sleeve, they are used in hydro-thermo-sanitary installations.



Unlike compression fittings, the coupling of press fittings has the special characteristic of being immovable: this means that, if pressed properly, the APL fitting undergoes permanent deformation that guarantees tightness over time. Precisely for this reason, press-fit coupling is the only system used and guaranteed in undercutting installation.



Features:

  • Field of application: Hydro-thermal sanitary systems
  • Application fluid: Potable water, technical water and glycol water
  • Percentage of glycol: max 30%
  • Temperature range: -25°C to 120°C
  • Operating pressure: max 16 bar
  • Type of pipe: multilayer PE-Xb/AL/PE-Xb (in accordance with UNI 21003 standard)

There are no reviews

Data sheet

Diameter:
16mm
Type:
Fittings
Material:
Brass
