Best seller

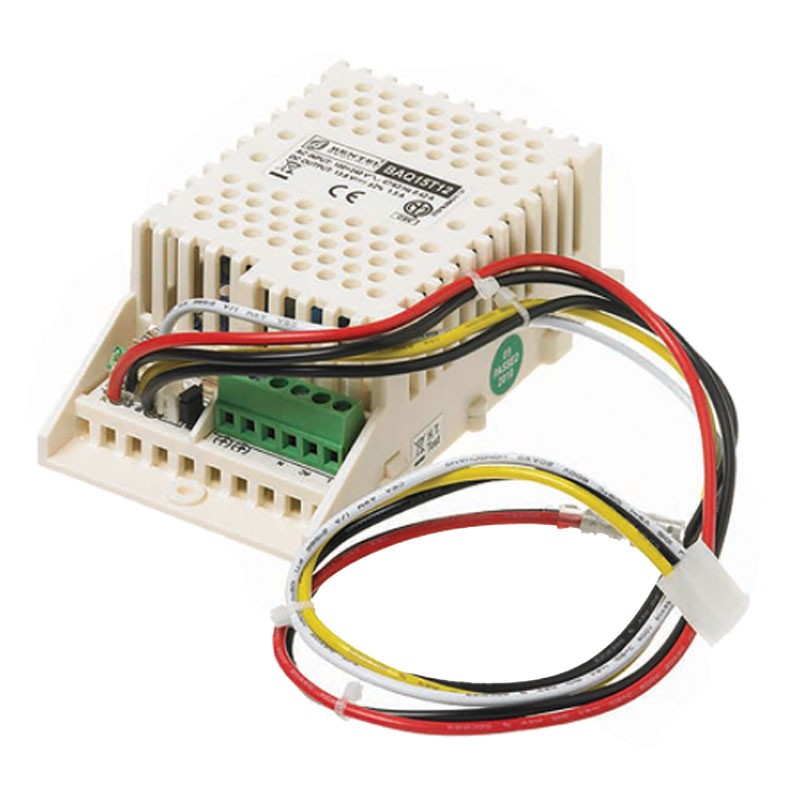

Bentel Switching Power Supply 1.5A 13.8Vdc for Burglar Alarm Systems BAQ15T12
BSY BAQ15T12
Bentel switching power supply, overload and reverse protection, compatible with KYO control panels. Compact and safe, with the following features:
-
Stabilized output: 13.8Vdc ±2%.
-
Maximum continuous current: 1.5A
-
Compatible with control panels: KYO320, KYO32G and KYO8GW
-
Supports batteries: 12V up to 7Ah
-
Dimensions: 125x42x72 mm
-
Overload, short circuit and reverse battery protection
-
Built-in buffer battery charger function
€23.57
Items Available: 38
: 27
Bentel reliability power supply for security systems
Professional switching power supply designed for applications in alarm control panels, providing a stable and secure 13.8Vdc power supply for security devices. It offers a maximum current of 1.5A and supports 12V - 7Ah buffer batteries, ensuring operational continuity even in the event of a blackout.
Maximum built-in protection
Equipped with protection against short circuits, overloads and accidental battery pole reversals, the BAQ15T12 is designed to last and protect both the system and connected devices. Its reliability makes it suitable for domestic, commercial and industrial installations.
Compatibility and installation
With its compatibility with KYO320, KYO32G and KYO8GW control panels, the power supply integrates seamlessly into existing installations. Its compact and lightweight design (only 195 g) makes it easy to install inside switchboards or control panel housings.
Applications
-
Residential and business burglar alarm systems
-
Power supply and backup for Bentel control panels
-
Integration into electrical panels with limited space
-
Security systems with continuity of service
Technical Specifications Bentel power supply
| Input voltage | 100-240V AC ±10% - 47/63 Hz |
|---|---|
| Current consumption | 0,42 A |
| Output voltage | 13.8V DC ±2%. |
| Maximum output current | 1.5 A |
| Supported battery capacity | 12V - up to 7Ah |
| Operating temperature range | 5°C to +40°C |
| Insulation class | Class 1 |
| Built-in protections | Short circuit, overload, inversion |
| Dimensions (W x H x D) | 125 x 42 x 72 mm |
