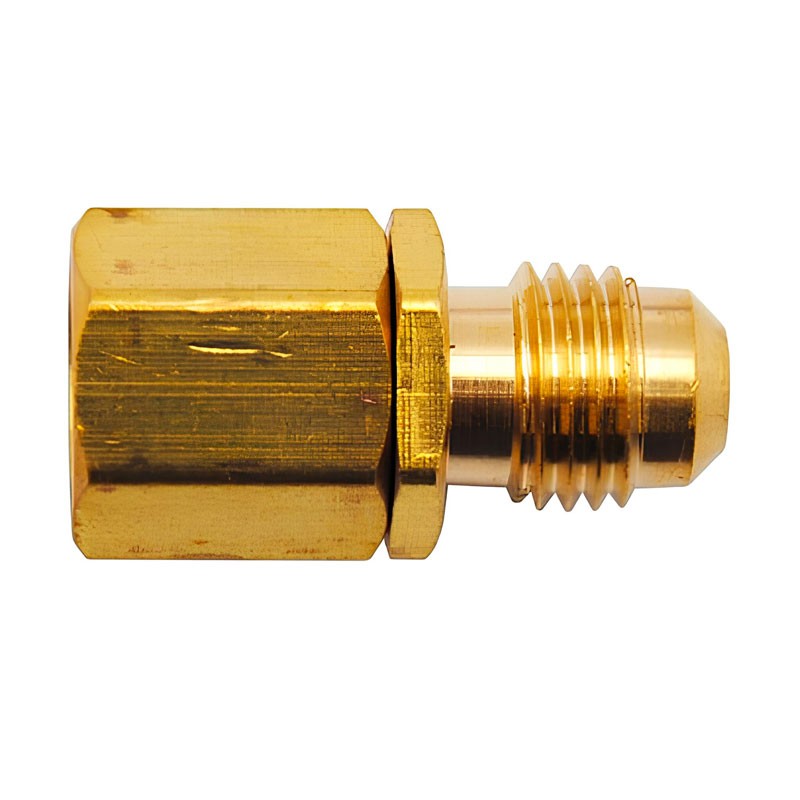

Tecnogas left-handed fitting for R32 cylinders W21.8 x 1/14 F 1/4 SAE M 11309
TGS 00000011309
8058699110229
Tecnogas left-hand connector for R32 cylinders, adapter for 5 to 10 kg refills, with the following characteristics:
-
Compatible gas: R32 (slightly flammable)
-
Inlet connection: W21.8 x 1.1/4 inch Female left (for cylinder valve)
-
Outlet connection: 1/4 inch SAE Male (for hose/manometer)
-
Material: Brass
-
Usage: 5 to 10 kg cylinders with valve
€5.57
Items Available: 53
: 14
Tecnogas left-handed fitting the professional adapter for R32 cylinders
The Tecnogas fitting is a left-handed adapter designed for use with R32 refrigerant gas cylinders with a capacity greater than 2 kg. These cylinders have an integrated valve with a left-hand thread to ensure safety and regulatory compliance when using slightly flammable gases. The fitting allows easy connection to the load line, ensuring compatibility and a tight seal.
Connections conform to HVAC standards

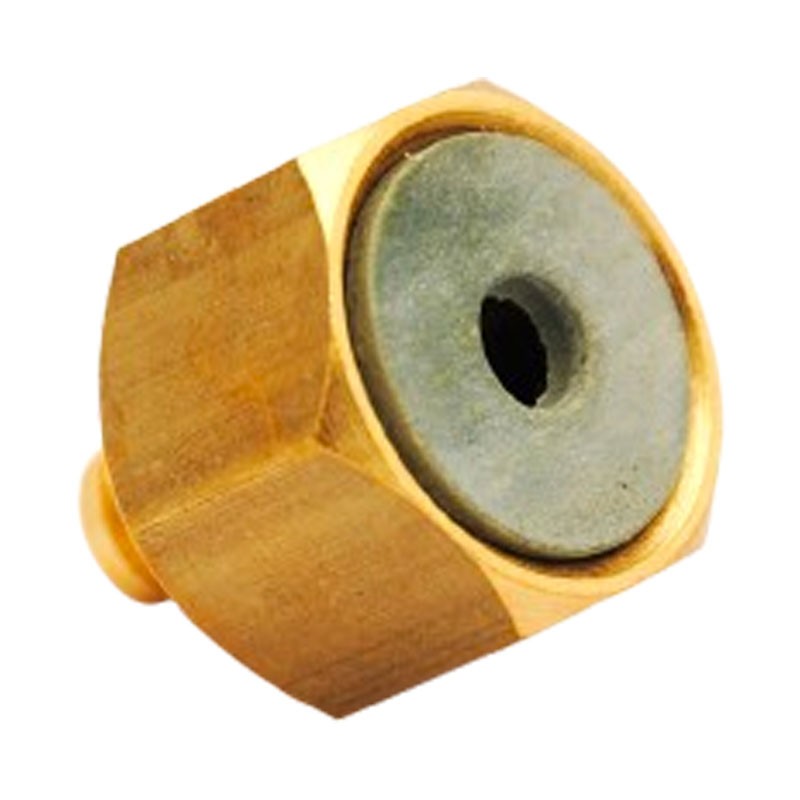

The inlet side of the fitting features a W21.8 x 1/14-inch female left-hand thread designed for R32 cylinders of 5 kg, 6 kg, 10 kg or greater. The outlet, on the other hand, is a male 1/4-inch SAE connection, standard in HVAC-R equipment, ideal for loading whips, pressure gauges and vacuum pumps.
High-quality materials and safe operation
Made of high-strength brass, the Tecnogas fitting provides long service life and excellent chemical resistance to refrigerant gases. The compact design and precise connection allow a quick, safe and leak-free connection, reducing operational risks during refill or maintenance operations.
Perfect for professional applications
The fitting is indispensable for those working with R32 cylinders equipped with a valve, as in the case of 5-10 kg refills. Thanks to the left-handed threading, any confusion with fittings for non-flammable gases is avoided, complying with current safety regulations.
Recommended applications
-
Connecting R32 > 2 kg cylinders to air conditioning systems
-
Cylinder adaptation to 1/4 inch SAE loading whips.
-
Refilling, vacuum and testing operations
-
HVAC-R technicians and professional refrigeration technicians
-
Use in workshops and technical laboratories
Technical Specifications Tecnogas fitting
| Parameter | Value |
|---|---|
| Compatible gas | R32 (slightly flammable) |
| Inlet connection | W21.8 x 1/14 inch F left (for cylinder valve, counterclockwise thread) |
| Outlet connection | 1/4 inch SAE M (for HVAC hose/manometers) |
| Material | Brass |
| Use | R32 cylinders with valve from 2 to 10 kg |
| Regulations | Complies with regulations for flammable gases |
| Applications | Connection between cylinder and charging system/station |
| Features | Safe and tight connection, resistant to pressure and technical gases |
j'ai reçu les mauvais articles ,erreur en parti de ma part du à un site peu explicite ;
le pire ,il n'y a plus de trace de ma commande sur le site ,pas de solutions (pas le temps de prende la téte à réclamer ,d'autant plus que les délais de livraison sont très long) ,donc je me retrouve avec des articles inutiles et j'ai recommandé ailleur;
Site simple de navigation, sérieux.
Bonne description des produits.
Attention les colis ne sont pas sur- remballé, si le carton d'origine et trop faible, on risque d'endommager le produit. Une double protection serai mieux.
Data sheet
- Type: Fittings
