Product Details



DC INVERTER: The Inverter system is an electronic device for efficiently varying the speed of the compressor and, consequently, the power output of the air conditioner according to the cooling or heating demand. Compared with conventional air conditioners with fixed speed (On/Off), inverter air conditioners reach the required temperature sooner and keep it stable, without annoying surges, benefiting comfort and power consumption.



Beyond Class A++/A+ Operating economy is the great advantage of Mitsubishi Electric air conditioners.



Thanks to the careful design of all components and the use of state-of-the-art technologies, energy efficiency reaches extraordinary levels even on a seasonal basis. In particular, the Smart Line achieves SEER and SCOP (seasonal efficiency indices) values above Class A++/A+ across the entire range.



MELCloud, the Wi-Fi control ( OPTIONAL ) is the new Wi-Fi control for your Mitsubishi Electric system. Leveraging the support of the cloud (the "Cloud") to transmit and receive information and the optional dedicated Wi-Fi interface (MAC-567IF-E), you can easily control your system wherever you are via your PC, tablet or smartphone; all you need is an internet connection. The MELCloud service is designed to have maximum compatibility with PCs, Tablets and Smartphones through dedicated Apps or via Web Browser.



Technical features



Cooling:

• Min/Max Capacity: KW 2.5 (0.5/2.9)
• Rated input power T=+35°C: kW 0.8
• SEER 6.2
• Energy Class: A++
• EER 3.1
• Indicative annual energy consumption kW/a 141

Heating:

• Min/Max capacity: KW 3.15 (0.7/3.5)
• Rated input power: T=+7°C 0.85 kW
• SCOP: 4.3
• Seasonal energy efficiency class A+
• COP 3.71
• Indicative annual energy consumption: kWh/a 614

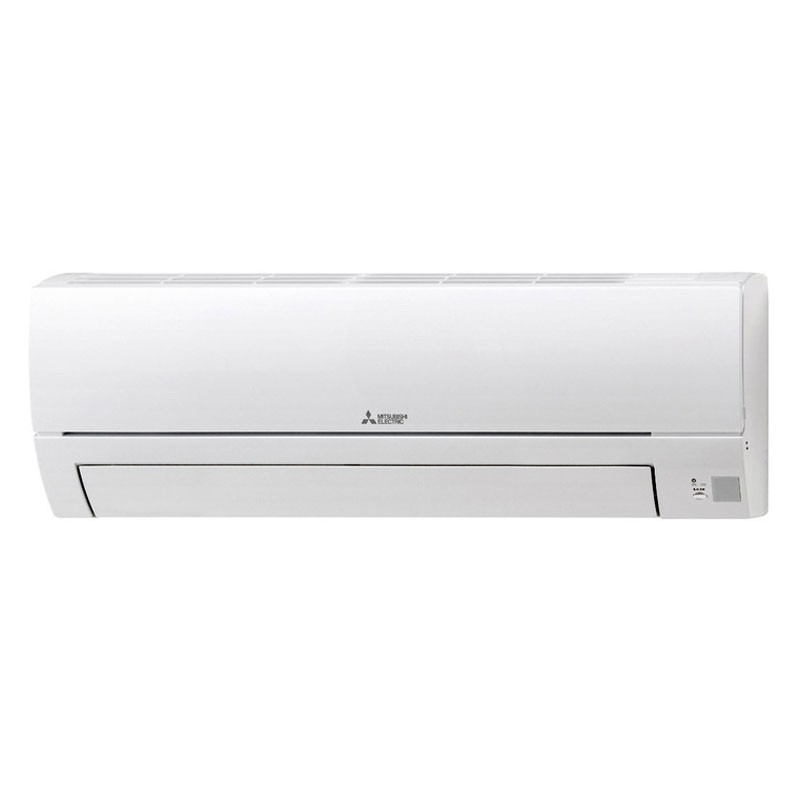

Indoor Unit Features:

• Dimensions: (HxWxD) 280x838x228mm
• Weight 8.5Kg
• Air handled Cooling cubic meters/min 3.6/5.4/7.2/9.7
• Air handled Heating cubic meters/min 3.3/5.4/7.4/10.1
• Dehumidification capacity l/hr N/A
• Sound pressure level (Cooling/Heating) dBa 21-30-37-43 / 21-30-37-43
• Sound Power Level dBA 57

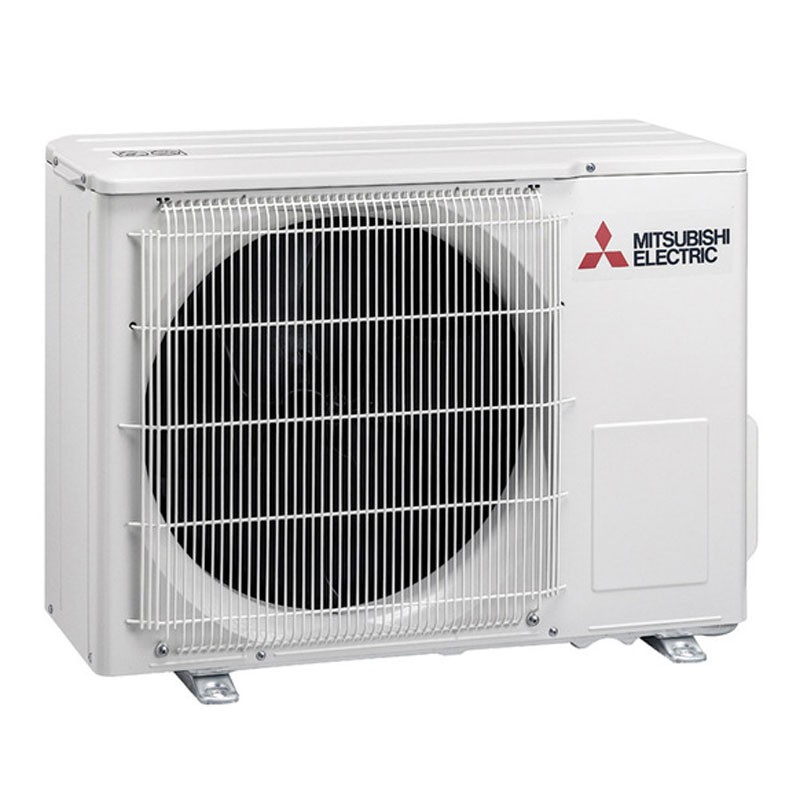

Outdoor Unit Features:

• Dimensions: (HxWxD) 538x699x249mm
• Weight 23Kg
• Sound Pressure Level dBa 50
• Sound Power Level dBA 63
• Power Supply Single-phase 220-240 / 50Hz
• Maximum Current Consumption 5A
• Liquid/Gas piping 6.35 (1/4") - 9.52 (3/8")
• Max/min piping length 20/3 meters
• Max height difference between indoor/outdoor unit 12 meters
• Refrigerant Type: R32 Gas
• Guaranteed operating range Cooling °C -10 ~ +46
• Guaranteed operating range Heating °C -10 ~ +24
• Factory Gas Precharge Kg 0.4
• Refrigerant GWP2 / Tons. Co2 Eq 675 / 0.27
