Mounting KIT for Air Conditioners 2.5/3.5 kW 9000/12000BTU 3 meters
KIT 90-12-3
The 2.5/3.5 kW (9000/12000 BTU) Air Conditioner Mounting Kit is designed for safe and reliable installation of the air conditioner's outdoor and indoor units. It includes high-quality components to ensure durability, electrical safety, and perfect management of condensate and refrigerant piping.

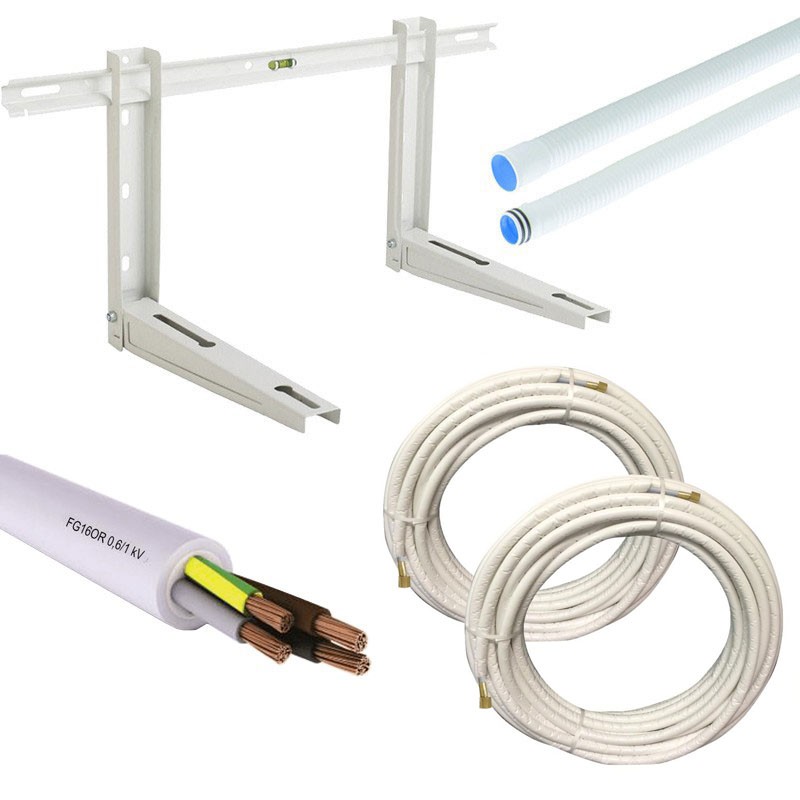

The kit consists of the following items:
-
Sturdy wall brackets for attaching the outdoor unit (N080E)
-
10 meters of double-insulated flame-resistant cable (5x1.5 mm² FS18R5G1.5BV750)
-
10 meters of Ø 17-20 mm condensate hose (NTD17-20.10)
-
Tecnogas FAST PIPE fitting kit with 3-meter pipes (1/4 - 3/8 inches 000011071V2)
With the kit you save compared to individually purchased items
€145.28
Items Available: 120
: 54
Frequently bought together
Products included in the Mounting Kit

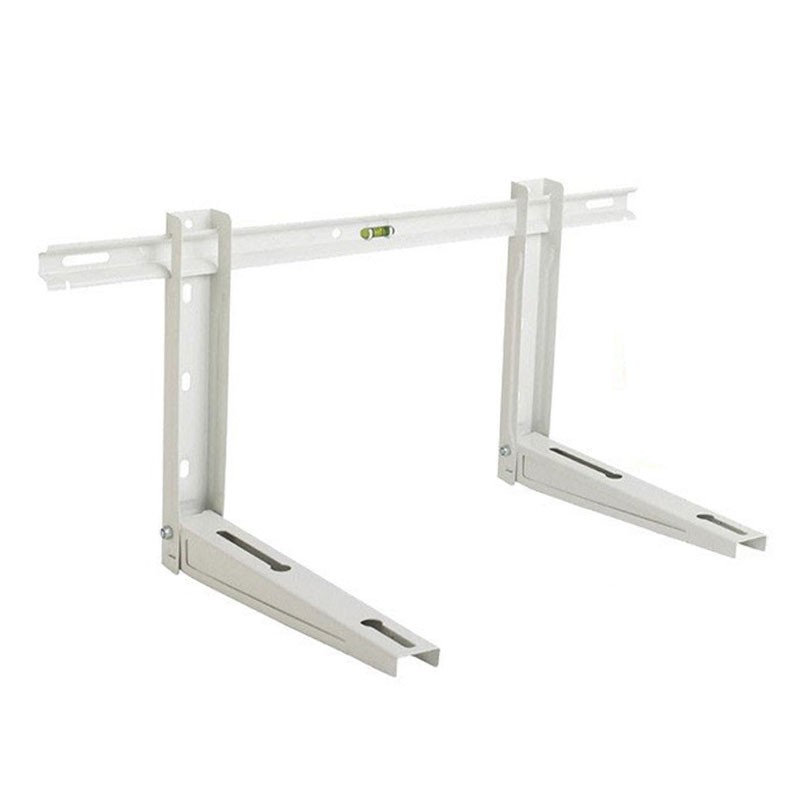

Adjustable Bracket for Outdoor Unit
| Feature | Description |
|---|---|
| Material | Epoxy powder coated steel |
| Installation Type | Wall bracket for outdoor unit of 9000 and 12000 BTU air conditioners |
| Max Certified Capacity | 80 Kg |
| Tested Capacity Max | 240 Kg |
| Delivery | Supplied disassembled |
| Thickness | 12/10 |
| Sliding Bracket | Easy and practical to install |
| Bubble Level | For secure fixing included |
| Anti-vibration feet | Included |
| Fastening screws | Included |
| Bubble | Included |

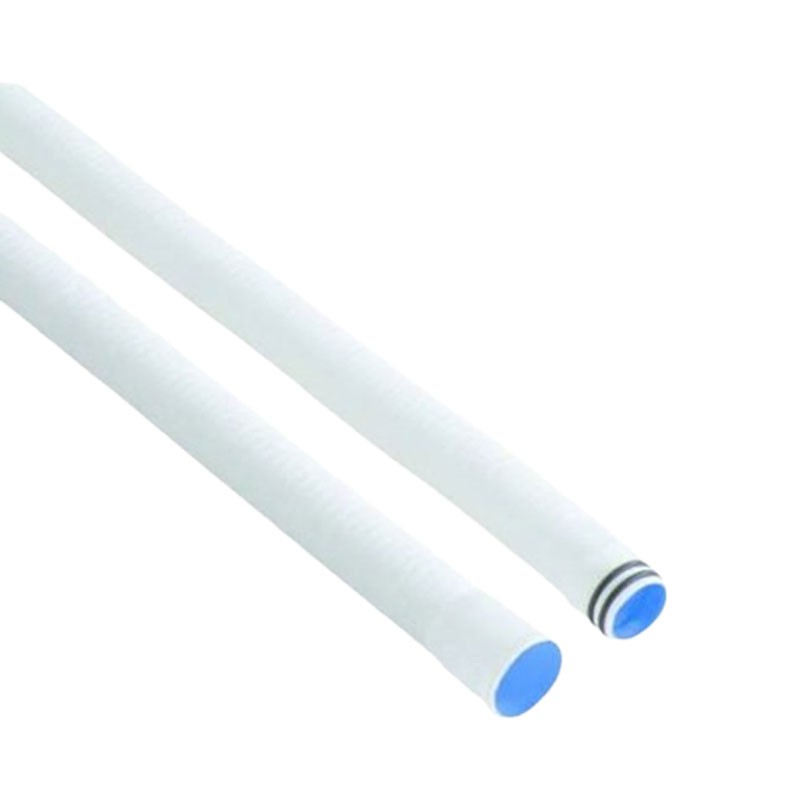

Flexible Condensate Hose
| Feature | Description |
|---|---|
| Type | Corrugated BIESTRUSO anti-crushing hose |
| Material | Double layer of Polypropylene |
| Stabilization | UV-resistant |
| Diameter | 17-20 mm |
| Length | 10 meters |
| Operating temperature | -30°C / +75°C |
| Use | Ideal for underground installation |

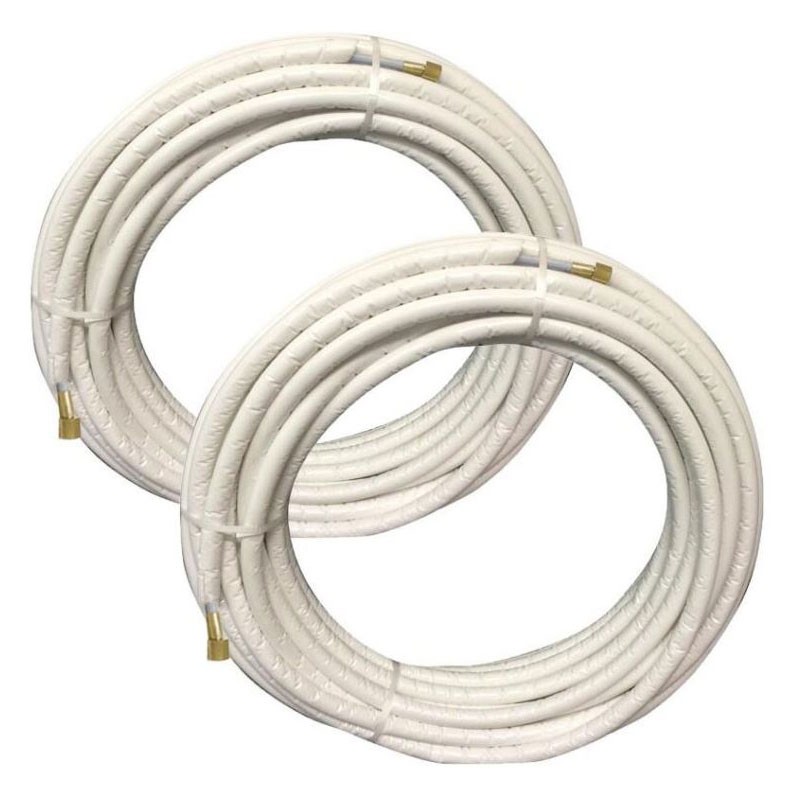

Tecnogas Fast Pipe Kit
| Feature | Description |
|---|---|
| Composition | 2 pipes of 3 meters each |
| Connections | Female-female |
| Pipe diameter 1 | 1/4" (6.35 mm) |
| Pipe diameter 2 | 3/8" (9.52 mm) |
| Type of fittings | Conical with copper gaskets included |
| Compatibility | Suitable for 9000/12000 BTU air conditioners |
| Insulation material | Closed-cell polyethylene foam |
| Protective layers | Polymer barrier, 4-layer aluminum film |
| Reinforcement | Polyamide long-chain, high-tenacity synthetic fiber |
| Protection | Anti-UV and anti-IR coating, anti-UV film |

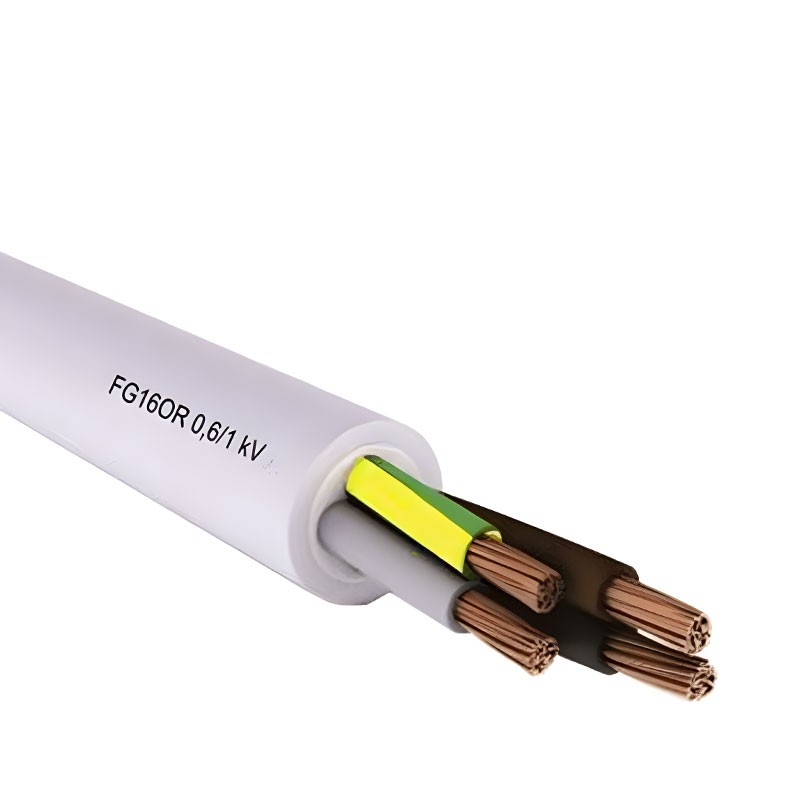

Flameproof cable
| Feature | Description |
|---|---|
| Type FS18OR18 | Double insulated flame-resistant electrical cable |
| Conductor cross section | 5 x 1.5 mm² with yellow/green |
| Length | 10 meters |
| Insulation | Double layer for added protection |
| Fire resistance | Flame-retardant material |
| Use | Suitable for electrical installations and air conditioning connections |
Parfait
Réponds a nos attentes.
Nous recommandons!
tres bon kit et montage facile et de bonne qualité
Très content produit facile à monté pas de problème au montage
Le produit correspondant parfaitement à mes besoins
Quitte complet manque rien. À part faudra noter le câble électrique par des numéros qui correspond à chaque raccordement ça serait le top.
kit d'installation bien adapté et indispensable
montage très facile à remonter merci de noter 📝 les fils électriques pour faciliter la mises en service
Parfait l installation s est bien faite
parfait. produit conforme et bien emballé.
Toppie mooi product en goeie service. Pri
Data sheet
- KIT: Mounting Kit
- Type: Multilayer pipes
