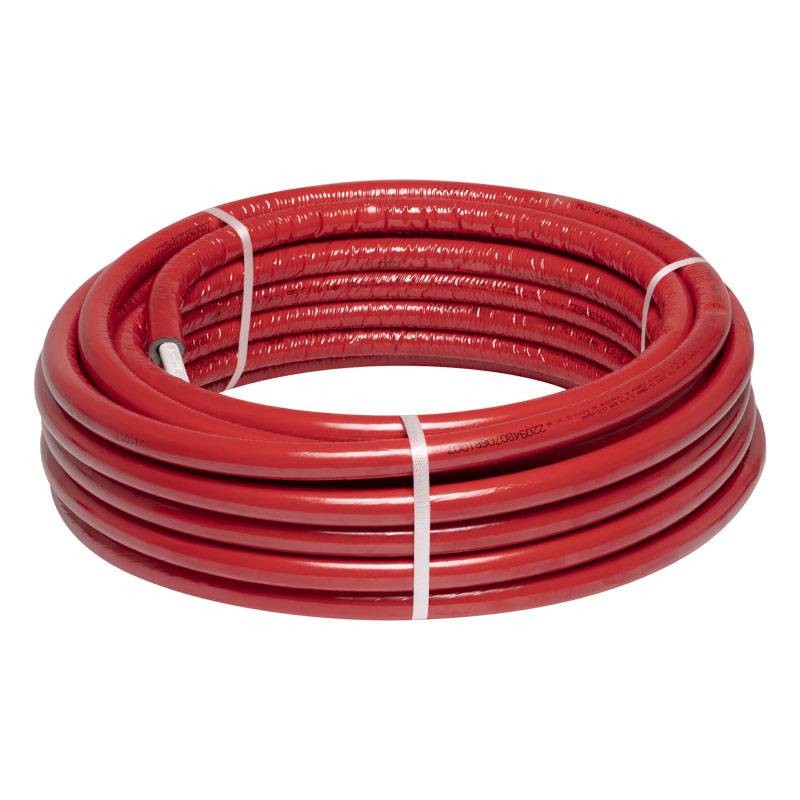

Ape multilayer heating and sanitary pipe 32x3 9mm 25m red 9MR45323025FR
55X 9MR45323025FR
Ape Multilayer pipe, high strength for sanitary systems, ideal for civil, industrial and tertiary plumbing systems. Thanks to its PE-xB/Al/PE-xB structure, it guarantees high moldability, corrosion resistance and total oxygen barrier, ensures high performance and maximum safety, with the following characteristics:
-
Outer diameter: 32 mm
-
Sheath thickness: 9 mm
-
Material: multilayer PE-xB/Al/PE-xB
-
Color: Red
-
Length: 25 meters
-
PE-LD expanded insulation sheathing
The selling price is per meter. Purchasable only by 25-meter hanks.
€3.95
Items Available: 475
: 425
Multilayer Ape Pipe: high performance and guaranteed reliability
Multilayer structure for maximum performance
The pipe consists of:
-
Double inner and outer layer of PE-xB cross-linked polyethylene, made by silane method B, which guarantees chemical resistance and durability
-
Intermediate layer made of aluminum alloy, longitudinally welded with head-to-head TIG technology, which offers dimensional stability and total barrier to oxygen, preventing corrosion phenomena in water systems
-
Insulating sheath made of closed-cell PE-LD foam with scratch-resistant finish film for high mechanical and thermal protection
Maximum reliability for plumbing and heating systems
Ape multilayer pipe is certified for use in plumbing systems, including potable water distribution systems, heating and air conditioning systems. It offers:
-
High temperature and pressure resistance (up to 95°C and 10 bar in continuous operation)
-
Oxygen permeability of 0 mg/l, ensuring a system free of corrosion and algae or bacteria formation
-
Optimized thermal conductivity (0.04 W/mK at 40°C), contributing to the energy efficiency of installations
Installation recommendations
-
Avoid prolonged exposure to sunlight, as it may deteriorate the outer sheathing
-
Do not install in outdoor or unheated environments to ensure optimal performance and preserve material properties
Technical Specifications Ape Multilayer
| Feature | Value |
|---|---|
| Outer diameter | 32 mm |
| Insulating sheath thickness | 9 mm |
| Roll length | 25 meters |
| Transportable water volume | 0.531 l/m |
| Degree of crosslinking | > 65% |
| Pipe material | Multilayer PE-xB/Al/PE-xB |
| Sheath material | PE-LD closed-cell foam |
| Scratch-resistant film material | PE-LD |
| Field of application | Plumbing systems in civil, industrial and tertiary sectors |
| Application fluid | Potable water, technical water, glycol water |
| Max operating temperature | 95°C |
| Malfunction temperature | 110°C |
| Max pressure at 95°C | 10 bar |
| Max pressure at 20°C | 30 bar |
There are no reviews
Data sheet
- Diameter: 32mm
- Type: Multilayer pipes
