Dual Mitsubishi MSZ-HR Smart 9000+12000btu 2.5+3.5KW air conditioner
Simple lines, compact dimensions, and neutral hues make MSZ-HR a perfect product for small-sized rooms with a modern design and a touch of simplicity. Quiet, consumption-conscious, it is the smart product in the Mitsubishi Electric catalog.
DC inverter system:
The Inverter system is an electronic device that makes it possible to efficiently vary the speed of the compressor and, consequently, the power output of the air conditioner according to cooling or heating demand. Compared with conventional air conditioners with fixed speed (On/Off), inverter air conditioners reach the required temperature sooner and keep it stable, without annoying surges, which benefits comfort and power consumption.
Energy saving
Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the careful design of all components and the use of state-of-the-art technologies, energy efficiency reaches extraordinary levels even on a seasonal basis. In particular, the Smart Line achieves SEER and SCOP (seasonal efficiency indices) values above Class A++/A+ across the entire range (on a scale of A++ to D).
Optional MelCloud Wi-Fi control
It is the new Wi-Fi control for your Mitsubishi Electric system. Taking advantage of the support of the cloud (the "Cloud") to transmit and receive information and the optional dedicated Wi-Fi interface (MAC-567IF-E), you can easily control your system wherever you are via your PC, tablet or smartphone; all you need is an internet connection. The MELCloud service is designed to have maximum compatibility with PCs, Tablets and Smartphones through dedicated Apps or via Web Browser. Controlling your air conditioners will be even smarter thanks to compatibility with Amazon Alexa and Google Home voice assistants.
Technical Specifications Set
Cooling
| Feature | Detail |
|---|
| Rated capacity (min/max) |
4.0 (1.1 - 4.3) kW |
| Rated power consumption |
1.05 kW |
| EER |
3,81 |
Heating
| Feature | Detail |
|---|
| Rated capacity (min/max) |
4.3 (1.0 - 4.7) kW |
| Rated power consumption |
0.91 kW |
| COP |
4,73 |

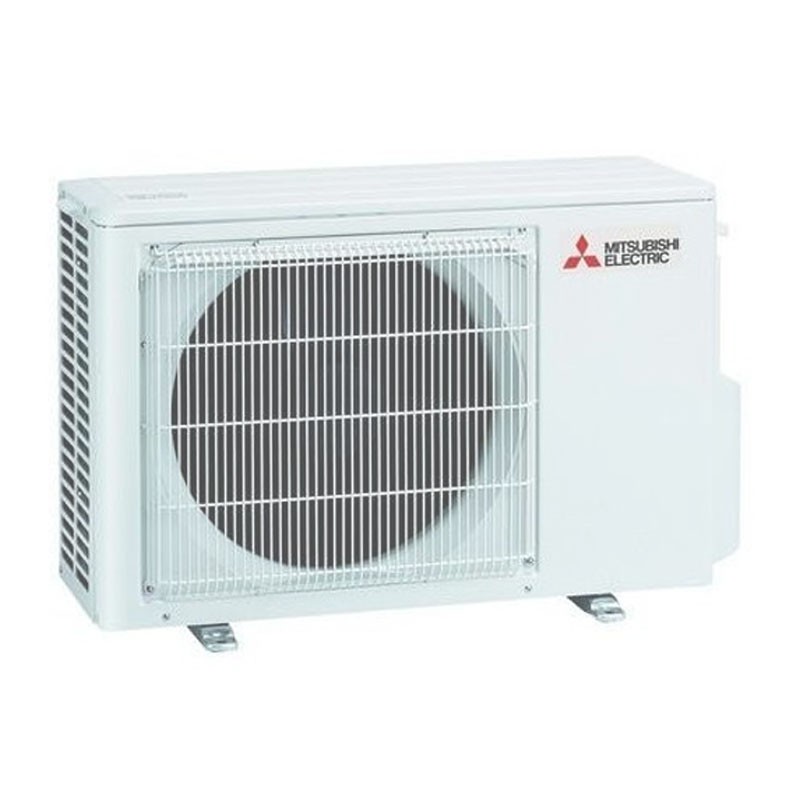

Outdoor Unit
| Feature | Detail |
|---|
| Dimensions (H x W x D) |
550 x 800 (+69) x 285 (+59.5) mm |
| Weight |
37 kg |
| Min/max sound pressure |
44/50 dB(A) |
| Rated sound power |
59 dB(A) |
| Maximum current consumption |
12,2 A |
| Refrigerant lines Liquid/gas diameters |
1/4" 6,35x2 - 3/8" 9,52x2 mm |
| Max length (total/each branch) |
30 m |
| Max height difference (EU above/EU below) |
15 m |
| Guaranteed operating range (Cooling) |
-10 ~ +46 °C |
| Guaranteed operating range (Heating) |
-15 ~ +24 °C |
| Refrigerant Type |
R32 |
| Refrigerant precharge |
0.9 kg |
| GWP (Global Warming Potential) |
675 |
| CO2 eq. (Tons) |
0,61 |
Indoor Unit Dimensions 9000/12000
| Feature | Detail |
|---|
| Dimensions (H x W x D) |
280x838x228 mm |
| Weight |
8.5 kg |
