The new compact design of the indoor units has a width of only 779 mm. This allows more installation possibilities, including the limited space above a door.

Thanks to the innovative improvements, installation times have been significantly reduced. The new models of air-conditioning are equipped with an installation plate reinforced, which offers greater stability and resistance for an installation well installed. With the built-in support recently, the unit is designed so it can be installed by one person.

An increase of 13 mm has been made for the pipes, so that installers can now easily make sure that the pipe and the insulation are securely and neat mounted.



Technical characteristics



Cooling:

• Capacity Min/Max KW 3,40 (0,85-3,90)
• Power consumption: Rated (Min-Max) kW 1,07 (0,24-1,28)
• SEER 6,10
• Energy efficiency class: A++
• EER N/A
• Annual energy consumption indicative kW/a N/a

Heating:

• Capacity Rated (Min-Max): KW 3,84 (0,80-4,40)
• Power input Rated (Min-Max) 1,05 (0,20-1,29)
• SCOP: 4,20
• Class seasonal energy efficiency A+
• COP N/A
• Annual energy consumption indicative: kWh/a N/a

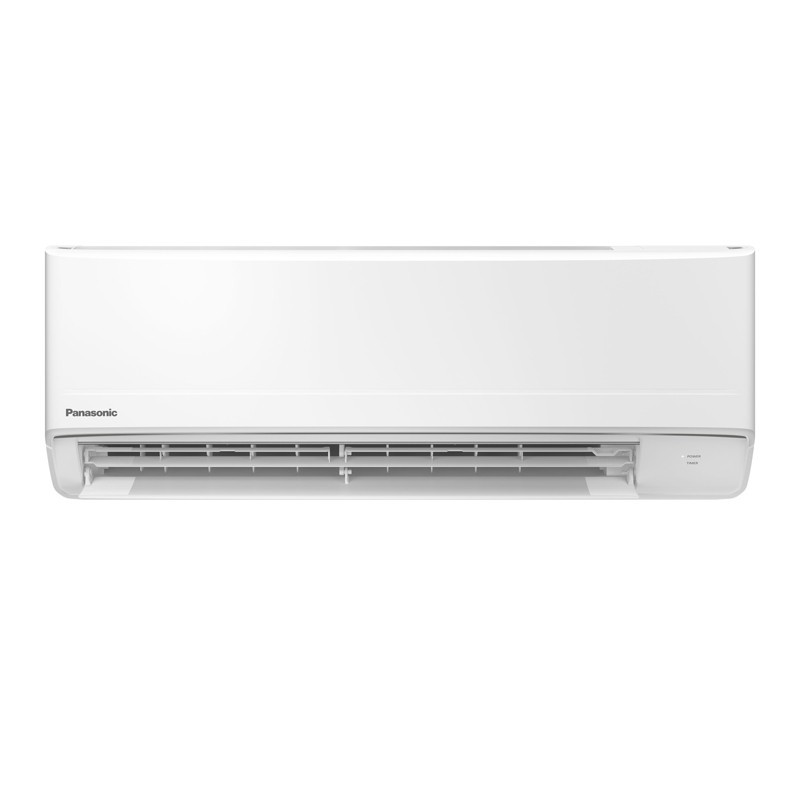

Features Indoor Unit:

• Dimensions: (Hxwxd) 290x779x209 mm
• Weight 8Kg
• Air flow Min. Heating/cooling cubic meters/min 10,80/11,30
• Dehumidification capacity l/hr N/D
• sound pressure level (Cooling/Heating) dBa 38/30/20 - 38/33/25
• Sound Power level dBA N/a

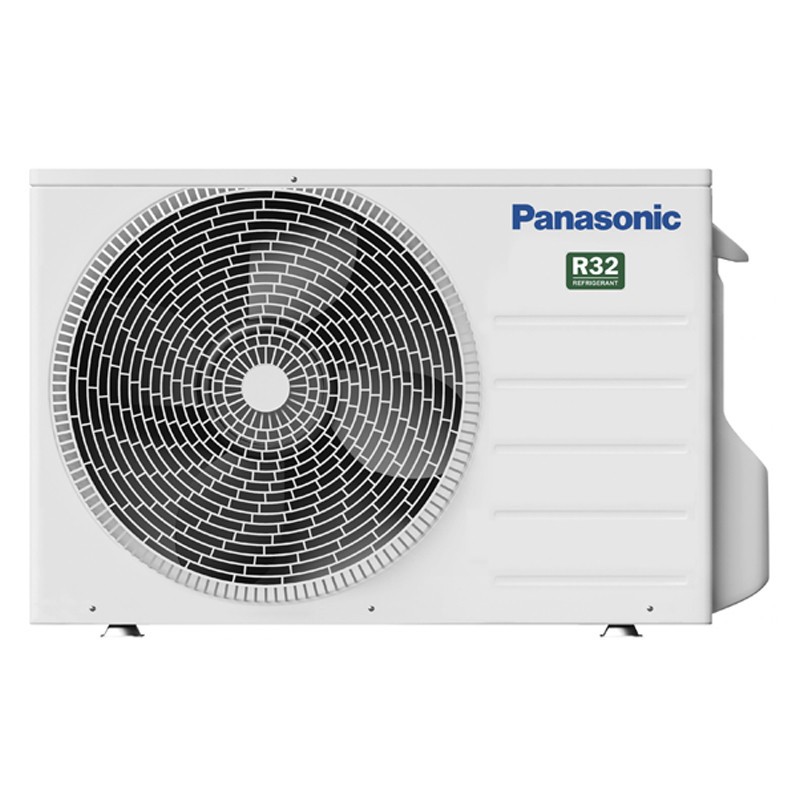

Features Outdoor Unit:

• Dimensions: (Hxwxd) 542x780x289 mm
• Weight 25Kg
• Level sound Pressure Cooling/Heating dBa 48/50
• Sound Power level dBA N/a
• Power supply single Phase 220-240 / 50Hz
• Piping Liquid/Gas 6,35 (1/4") - 9,52 (3/8")
• Length piping max/min 15/3 m
• Height difference Max between units indoor/outdoor 15 meters
• Type Of Refrigerant Gas R32
