The new compact design of the indoor units is only 779 mm wide. This allows greater installation possibilities, including limited space above a door.

Thanks to advanced improvements, installation time has been significantly reduced. The new air conditioning models feature a reinforced installation plate, which provides greater stability and strength for a well-installed installation. With the newly integrated stand, the unit is designed so that it can be installed by one person.

A 13mm increase has been made for the pipework, so installers can now easily ensure that the pipe and insulation are fitted securely and neatly.



Technical Features



Cooling:

• Min/Max Capacity: KW 3.40 (0.85-3.90)
• Power input: Rated (Min-Max) kW 1,07 (0,24-1,28)
• SEER 6,10
• Energy Class: A++
• EER N/A
• Indicative annual energy consumption: kW/a N/A

Heating:

• Rated Capacity (Min-Max): KW 3,84 (0,80-4,40)
• Rated input power (Min-Max) 1.05 (0.20-1.29)
• SCOP: 4,20
• Seasonal energy efficiency class A+
• COP N/A
• Indicative annual energy consumption: kWh/a N/A

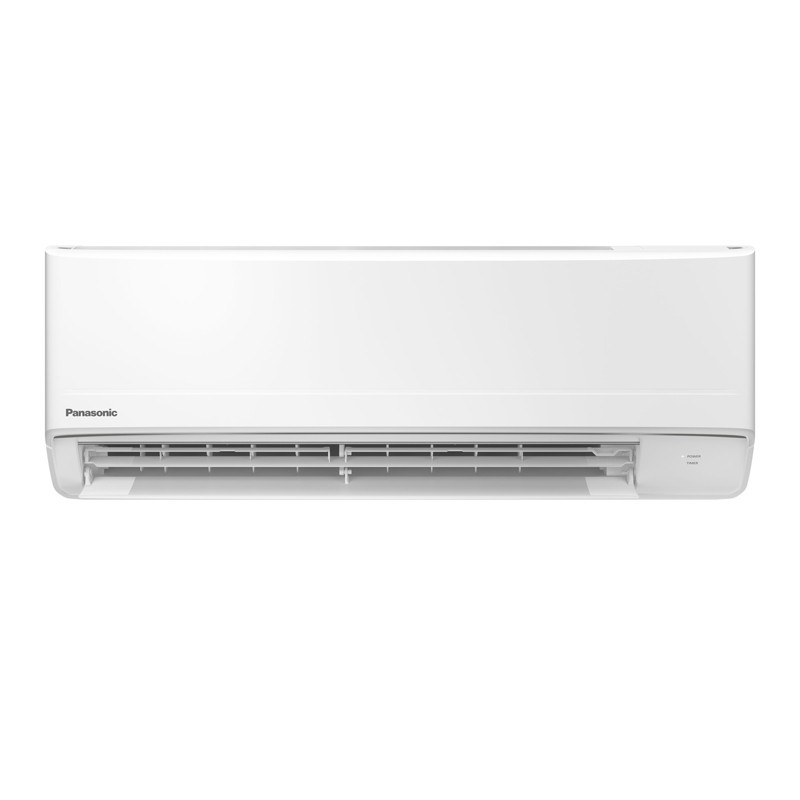

Indoor Unit Features:

• Dimensions: (HxWxD) 290x779x209 mm
• Weight 8Kg
• Treated air Min. Cooling/Heating cubic meters/min 10.80/11.30
• Dehumidification capacity l/hr N/A
• Sound Pressure Level (Cooling/Heating) dBa 38/30/20 - 38/33/25
• Sound Power Level dBA N/A

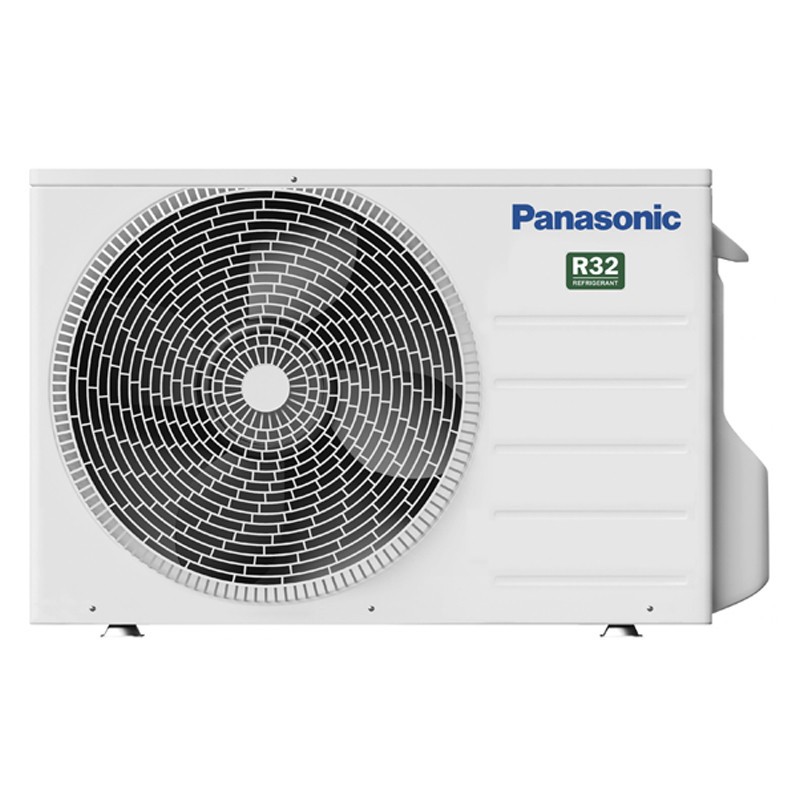

Outdoor Unit Features:

• Dimensions: (HxWxD) 542x780x289 mm
• Weight 25Kg
• Cooling/heating sound pressure level dBa 48/50
• Sound Power Level dBA N/A
• Power supply Single-phase 220-240 / 50Hz
• Liquid/Gas piping 6.35 (1/4") - 9.52 (3/8")
• Max/min pipe length 15/3 meters
• Max height difference between indoor/outdoor unit 15 meters
• Refrigerant Type: Gas R32

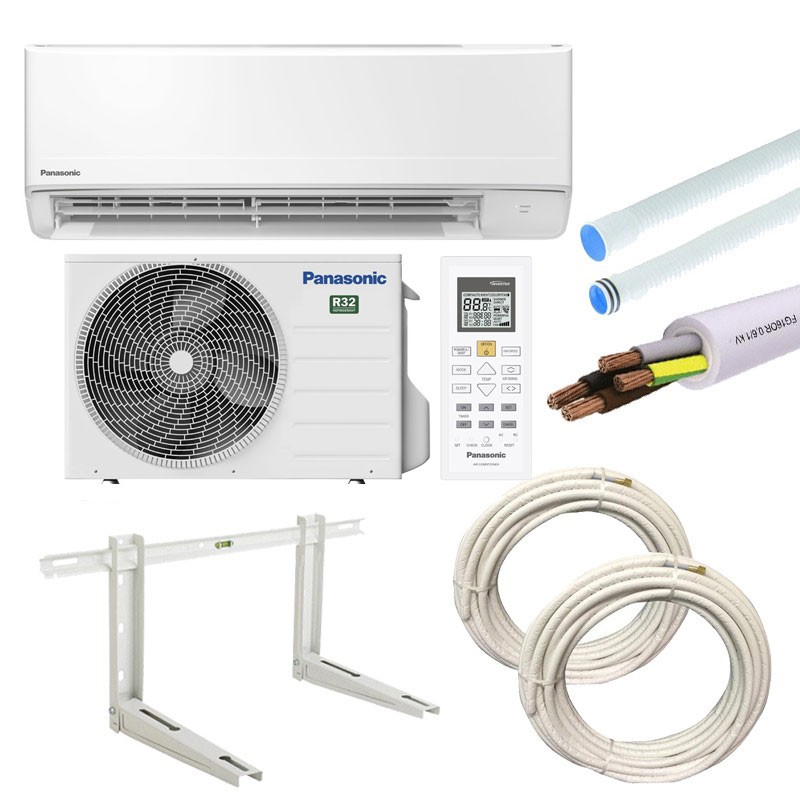

Specifications of the products in the Mounting Kit


Wall brackets for air conditioners 9000/12000btu for external unit:


• Galvanized and powder coated steel brackets
• Shelves with quick insertion anti-vibration feet
• Stainless steel screws in the articles KLIMA STRONG INOX and KLIMA TOP INOX SCREWS
• KLIMA STRONG and KLIMA HEAVY for non-standard machines
• KLIMA TOP shelf for the highest quality
• Available KLIMA GROUND and KLIMA FOOT vibration damping bases for floor installation
• White RAL 9002
• Arm length L1420 mm
• Height 400 mm
• Bracket thickness 15/10 mm
• Crossbar length 780 mm



10 meters Double insulated fireproof cable 5X1,5 mmq



10 meters Arnocanali condensate drain hose D. 17-20mm

• BIESTRUSO corrugated anti-crush hose. Product with double layer of POLYPROPYLENE to guarantee the maximum safety in the use under trace. Tube made with Polypropylene stabilized against UV rays. Working temperature - 30°C 75°c.



Kit Tecnogas FAST PIPE composed by:

• 2 conical pipes from 6 meters one with female-female connections, diameter 1/4 (diameter 6,35) and one with female-female connections, diameter 3/8 (diameter 9,52) with copper gaskets included. Suitable for air conditioners 9000/12000btu.



Construction characteristics of the pipe:

• Closed cell expanded polyethylene
• Barrier polymer
• 4-layer aluminium film
• long-chain polyamide
• high tenacity synthetic fibre
• anti-Uv and anti-IR coating
• anti-Uv film

Fittings: "Helix" brass: Calibri, Screw, Crimpi.

The field-of-use refrigeration Circuits F-containing gas R410A-R32-R134A-R404A-R407C

Operating temperatures -30°C/110°C (Max 130° C non-continuous)

Maximum operating pressure 100 Bar
