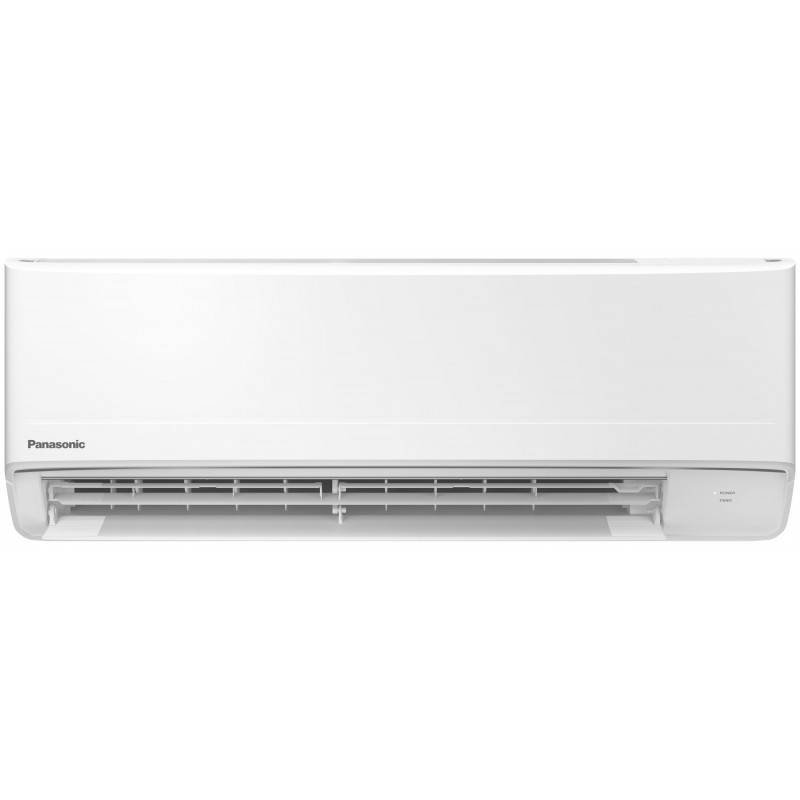

The new compact design of the indoor units is only 779 mm wide. This allows for greater installation possibilities, including limited space above a door.

Thanks to advanced improvements, installation time has been significantly reduced. The new air conditioning models feature a reinforced installation plate, which provides greater stability and strength for a well-installed installation. With the newly integrated stand, the unit is designed so that it can be installed by one person.

A 13mm increase has been made for the pipework, so installers can now easily ensure that the pipe and insulation is fitted securely and neatly.



Technical Features



Cooling:

• Min/Max Capacity: KW 2.50 (0.85-3.00)
• Power input: Rated (Min-Max) kW 0,68 (0,21-0,90)
• SEER 6,20
• Energy Class: A++
• EER N/A
• Indicative annual energy consumption kW/a N/A

Heating:

• Rated Capacity (Min-Max): KW 3,15 (0,80-3,60)
• Rated input power (Min-Max) 0.78 (0.19-1.04)
• SCOP: 4,20
• Seasonal energy efficiency class A+
• COP N/A
• Indicative annual energy consumption: kWh/a N/A

Indoor Unit Features:

• Dimensions: (HxWxD) 290x779x209 mm
• Weight 8Kg
• Processed Air Min. Cooling/Heating cubic meters/min 10.50/11.10
• Dehumidification capacity l/hr N/A
• Sound Pressure Level (Cooling/Heating) dBa 37/26/20 - 37/27/24
• Sound Power Level dBA N/A

Outdoor Unit Features:

• Dimensions: (HxWxD) 542x780x289 mm
• Weight 24Kg
• Cooling/heating sound pressure level dBa 48/49
• Sound Power Level dBA N/A
• Power supply Single-phase 220-240 / 50Hz
• Liquid/Gas piping 6.35 (1/4") - 9.52 (3/8")
• Max/min pipe length 15/3 meters
• Max height difference between indoor/outdoor unit 15 meters
• Refrigerant Type: Gas R32



Specifications of the products in the Mounting Kit


Wall brackets for 9000 and 12000 btu air conditioners for outdoor motor:

• Galvanized and powder coated steel brackets
• Brackets complete with anti-vibration feet for quick insertion
• Stainless steel screws in the KLIMA STRONG INOX and KLIMA TOP INOX items
• KLIMA STRONG and KLIMA HEAVY for non-standard machines
• KLIMA TOP shelf to have the best quality
• KLIMA GROUND and KLIMA FOOT anti-vibration bases available for floor installation
• White RAL 9002
• Arm lengthL1 420 mm
• Height 400 mm
• Bracket thickness 15/10 mm
• Crossbar length 780 mm



10 meters Double insulated flame retardant cable 5X1,5 mmq



Arnocanali condensate hose D. 17-20mm 10 meters:

• BIESTRUSO anti-crush corrugated hose. Produced with double layer of POLYPROPYLENE to guarantee the maximum safety in the use under trace. Hose made of Polypropylene stabilized against UV rays. Working temperature - 30°C + 75°c.



Kit Tecnogas FAST PIPE composed by:

• 2 pipes of 6 meters one with female-female connections diameter 1/4 (diameter 6,35) and one with female-female connections diameter 3/8 (diameter 9,52) conical with copper gaskets included. Suitable for air conditioners 9000/12000btu.



Construction characteristics of the pipe to the funds:

• Closed cell polyethylene foam
• The polymer barrier
• the film of aluminium 4-ply
• polyamide long-chain
• synthetic fiber of high tenacity
• coating anti-Uv and anti-IR
• film anti-Uv



Fittings: "Helix" brass: Calibri, Screw, Crimpi.

The field-of-use refrigeration Circuits F-containing gas R410A-R32-R134A-R404A-R407C

Operating temperatures -30°C/110°C (Max 130° C non-continuous)

Maximum operating pressure 100 Bar
