Resin joint for 3M cables 4x16/25 7000035339

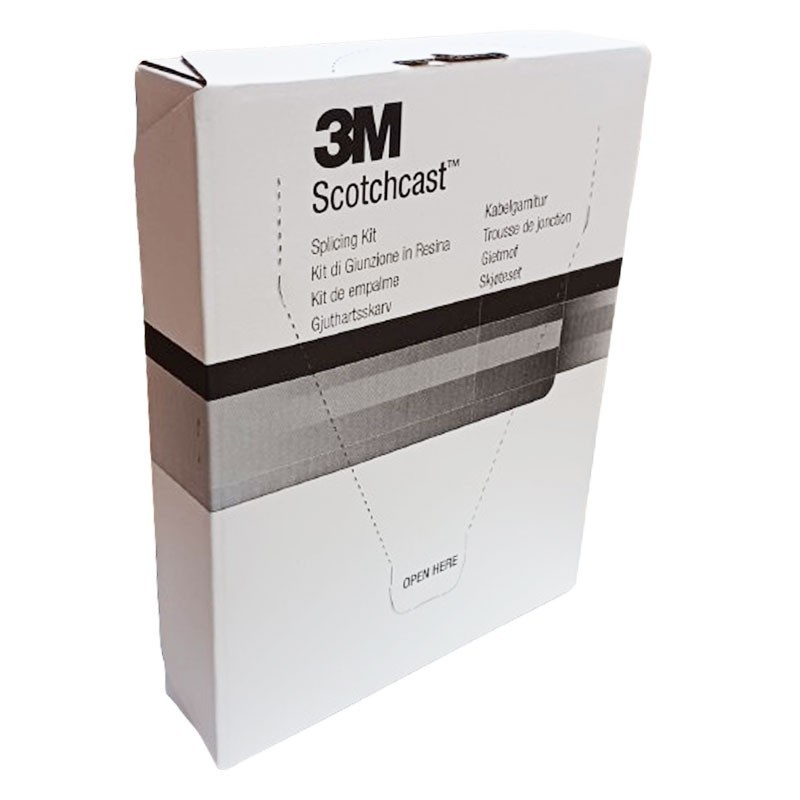

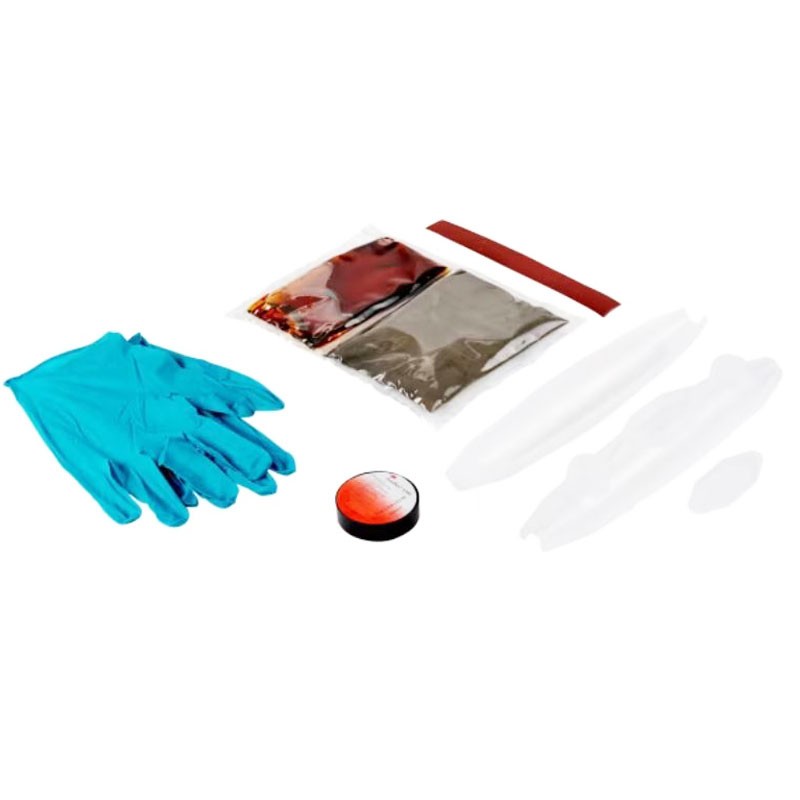

Scotchcast 3M Scotchcast 3M cable resin splice kit type 90-NA-2 with the following characteristics:
- Cable diameter: 16-25 sq. mm
- Accepted cable diameters: 14-30 mm
- Cable voltage 600/1000 V (up to 3.3 kV)
- Product type: joint for unreinforced cable
Resin joint for 3M cables 4x16/25 7000035339
Tax included
Scotchcast 3M 90-NA-2 resin cable joints are used to splice or connect unshielded multicore polymer cables with XLPE insulation and center conductors from 16 sq. mm to 25 sq. mm.
The 3M 90-NA-2 cable splice kit can be used for indoor and outdoor, underground and submerged splices and for connecting unarmored, 600 V/1000 power cables.
3M Scotchcast 470W resin has a shelf life of at least 36 months when stored at a temperature between 10°C and 40°C with a humidity level <75% in the originally sealed bag. The expiration date of each cable joint is stated on the product label. Storage beyond the date specified on the 3M Scotchcast label does not necessarily mean that the product is no longer usable. In this case, however, it is the user's responsibility to determine the applicability of the resin.
Data sheet
- Type:
- Connections
