Raytech mini gel joint with 3 x 2.5 sq. mm clamp IP68 FRED-Y
RYT FRED-Y
8050040861613

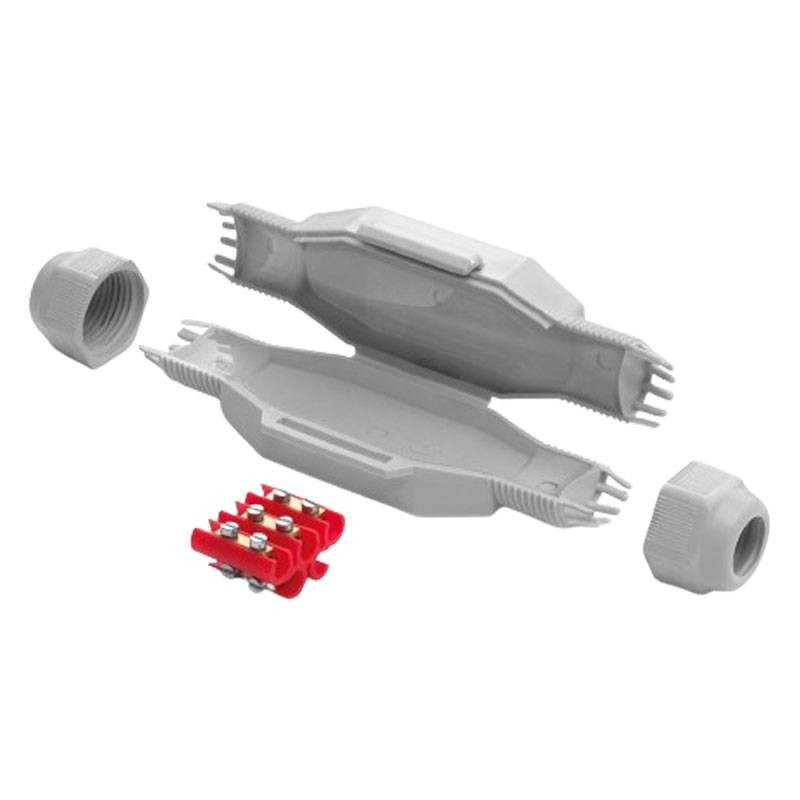

Raytech FRED-Y gel-filled mini joint with connector with the following characteristics:
- Max through cable formation: 3x2.5 - 3x4 sq. mm
- Max derived cable formation: 3x1.5 - 3x2.5 mmq
- Min/max cable diameter: 8/13 mm
- Dimensions: 110x72x25 mm
- Degree of protection: IP68
- For underground and submerged use
Suitable for all types of installation, even the most extreme.
Ideal for connection in garden lighting systems, steps and stairs, walkways.
€19.12
Items Available: 88
: 2

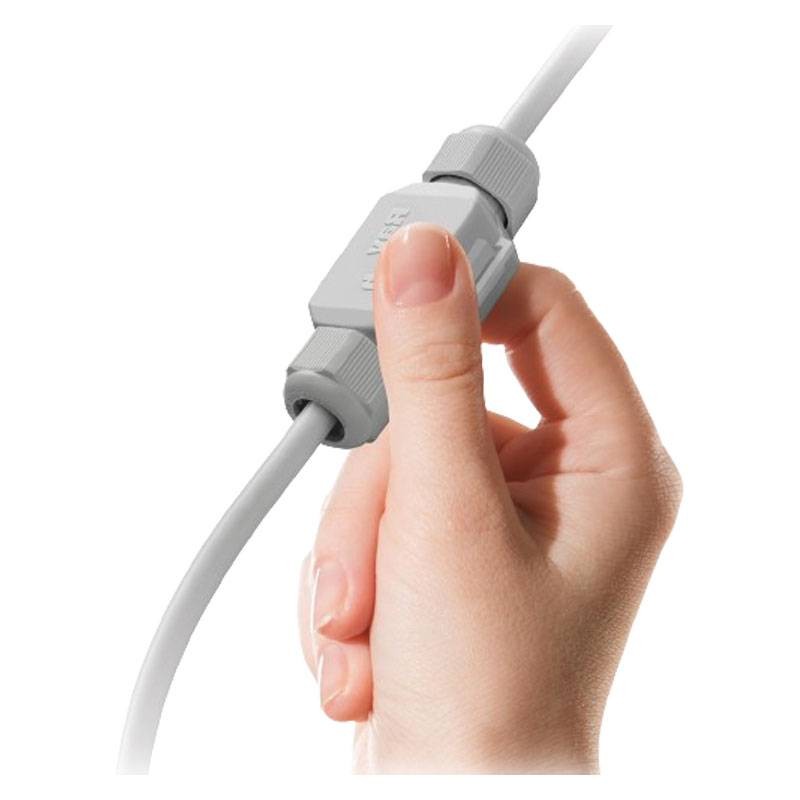

Compact, space-saving, pre-filled with soft, highly conforming gel. Minimal aesthetic impact with clamping nuts that allow IP68 and IP69K rating while locking the joint onto the cable.
Features:
- Gel: UL 94-HB
- Operating temperature: 90°
- Installation temperature: -40°C / +50°C
- Halogen-free Gel
- UV resistant
- Pre-filled with non-toxic and non-hazardous classified gel
- Ultra-compact and ready-to-use
There are no reviews
Data sheet
- Type: Connections
