Raytech mini gel joint for cables 4 x 2.5 mmq IP68 BOB4
RYT BOB4
8050040861774

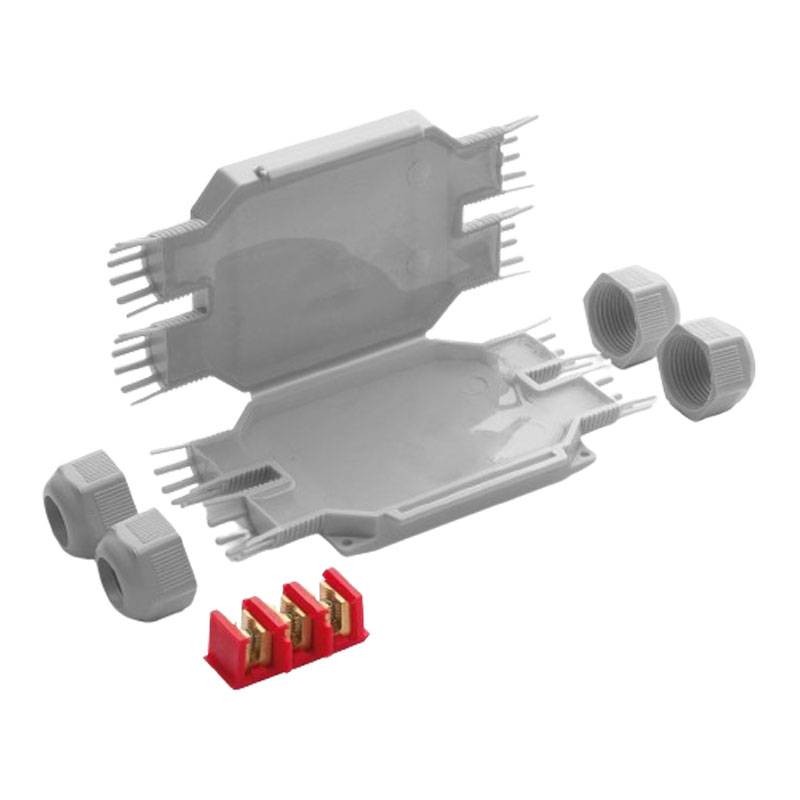

Raytech BOB 4 gel-filled mini joint with connector with the following features:
- Max through cable formation: 1 cable 3x2.5 - 3x4 mmq
- Max derived cable formation: 2 cables 3x2.5 - 3x4 mmq
- Min/max cable diameter: 8/13 mm
- Dimensions: 105x65x25 mm
- Degree of protection: IP68
- For underground and submerged use
Suitable for all types of installation, even the most extreme.
Ideal for connection in garden lighting systems, steps and stairs, walkways.
€19.12
Items Available: 35

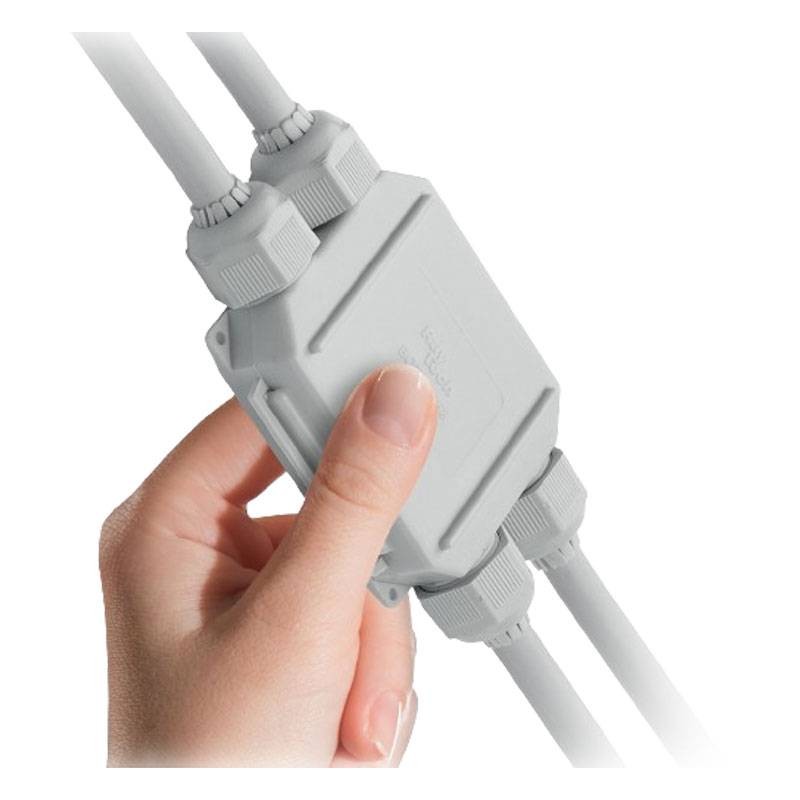

Compact, space-saving, pre-filled with soft, highly conforming gel. Minimal aesthetic impact with clamping nuts that allow IP68 and IP69K rating while locking the joint onto the cable.
Features:
- Gel: UL 94-HB
- Operating temperature: 90°
- Installation temperature: -40°C / +50°C
- Halogen-free Gel
- UV resistant
- Pre-filled with non-toxic and non-hazardous classified gel
- Ultra-compact and ready to use
Data sheet
- Type: Connections
