Etelec Gel joint for 0.6/1 kV cables SHARK 2/4x1.5-6 mmq IP68 SH0406
ETL SH0406
8033712903576

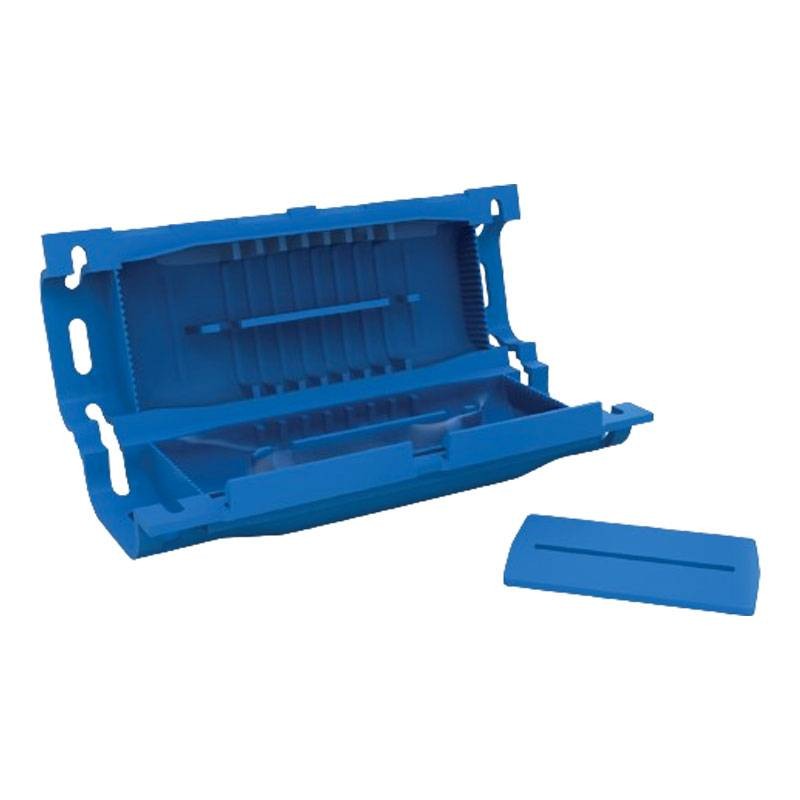

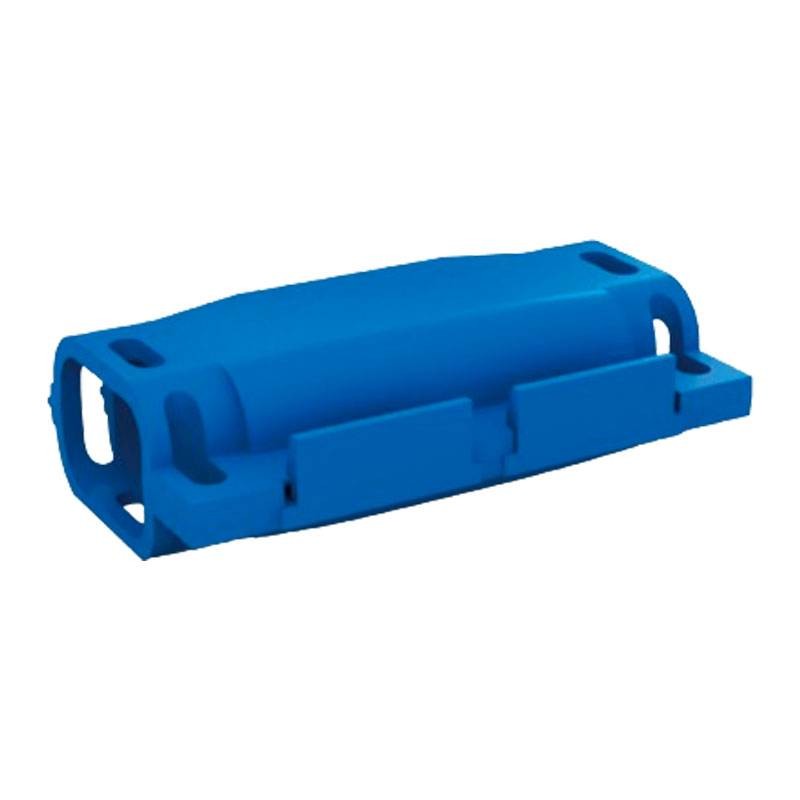

Etelec SHARK 406 re-accessible, non-toxic gel insulation joint for in-line connection of 0.6/1 kV three-core power cables complete with insulated three-core terminal block with screw clamping with the following features:
- Construction: In pre-filled gel
- Max through-wire conductors number: 4
- Conductor cross-section min-max: 1.5-6 sq mm
- Material: Polypropylene
- Color: Blue
- Degree of protection: IP68
Application: underground , overhead , submerged.
Kit contents: Gel pre-filled joint, Phase separator, Cable ties, Instructions.
€11.82
Items Available: 72
: 30
Re-accessible, non-toxic gel-insulated joint for in-line connection of 0.6/1 kV three-core power cables complete with insulated three-core terminal block with screw clamping.
Features:
- In-Line Connection
- Pre-filled Gel execution
- Application Inground , overhead , submerged
- Number of conductors through cable max 4
- Insulation degree kV 0.6/1
- UV Resistant
- No expiration date
- Degree of Protection: IP68
- Length: 145 mm
- Width: 50 mm
- Depth: 29 mm
- Thickness: 2 mm
There are no reviews
Data sheet
- Type: Connections
