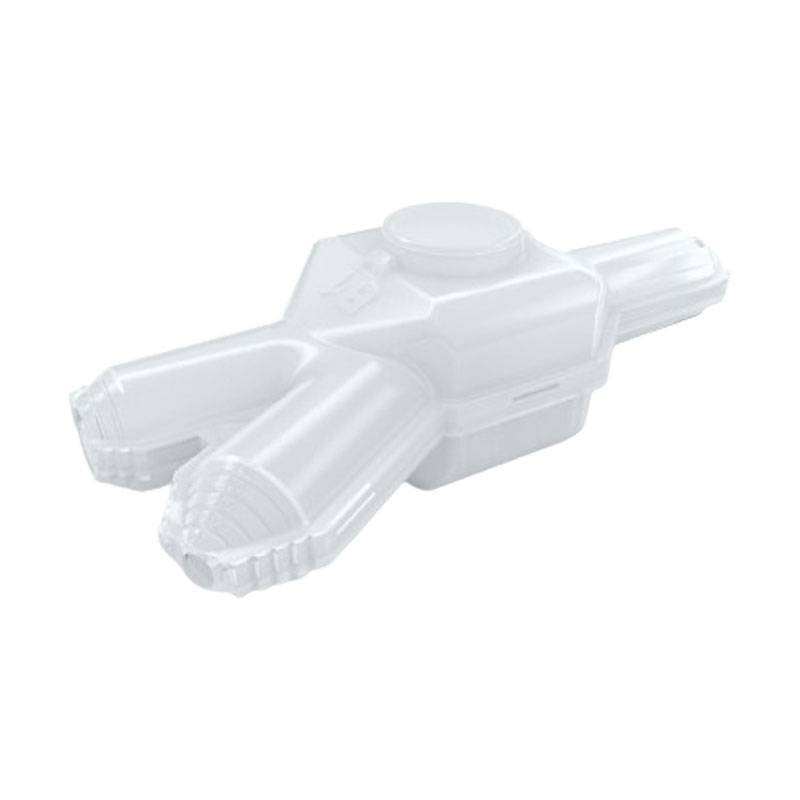

Etelec Y-Connector for cable branch joints 2.5-6 sq. mm GSB1
ETL GSB1
8058774263413

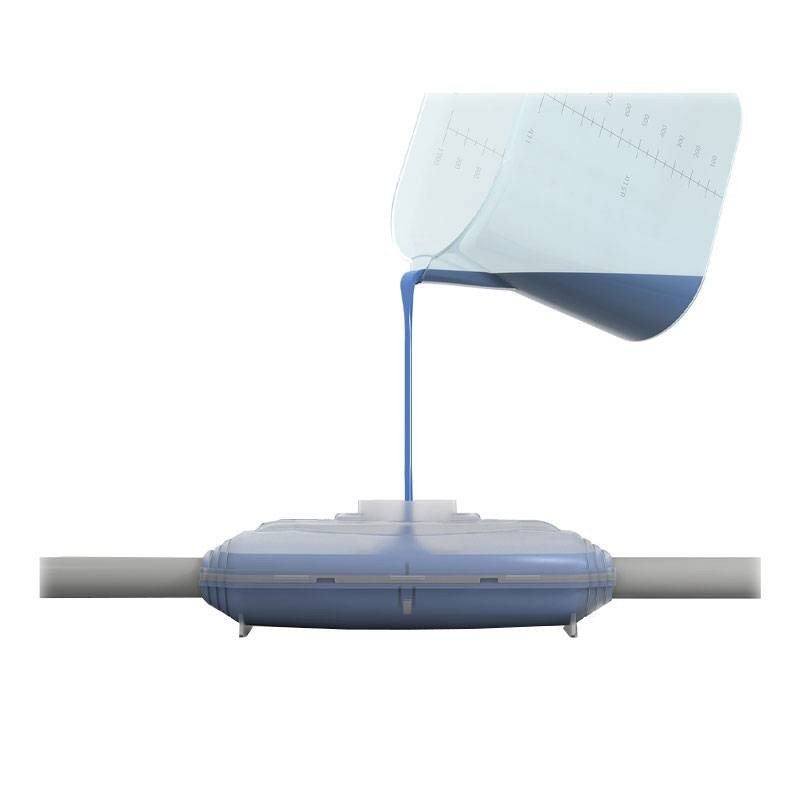

Etelec Y-connector made of castable re-accessible resin for extruded cables up to 5 poles with 0.6/1 kV insulation with the following features:
- Execution: Casting
- Max. number of through-wire conductors: 4
- Min-max pentapolar/quadripolar feed-through cable cross-section: 4-6 sq mm
- Min-max pentapolar/quadripolar lead-through cable cross-section: 2.5-6 mmq
- Min-max pentapolar/quadripolar cable diameter: 7-23 mm
- Insulation degree: 0.6/1 kV
Application: underground, overhead, submerged.
Kit contents: Patented modular separator for cables up to 5 poles, Polypropylene half-connectors, Instructions.
€3.68
Items Available: 30
: 10
Features:
- Family: ResilJoint
- Length: 200 mm
- Width: 94 mm
- Depth: 55 mm
- Drift Connection
- Copper conductor
- Aluminum conductor
- Material: polypropylene
- Dielectric strength: > 20 kV/mm
- Operating temperature: - 20/+90 degrees
- Construction: Casting
- Max. number of feed-through cable conductors: 4
- Min-max pentapolar/quadripolar feed-through cable cross-section: 4-6 sq mm
- Min-max pentapolar/quadripolar lead-through cable cross-section: 2.5-6 mmq
- Min-max pentapolar/quadripolar cable diameter: 7-23 mm
- Insulation degree: 0.6/1 kV
There are no reviews
Data sheet
- Type: Connections
