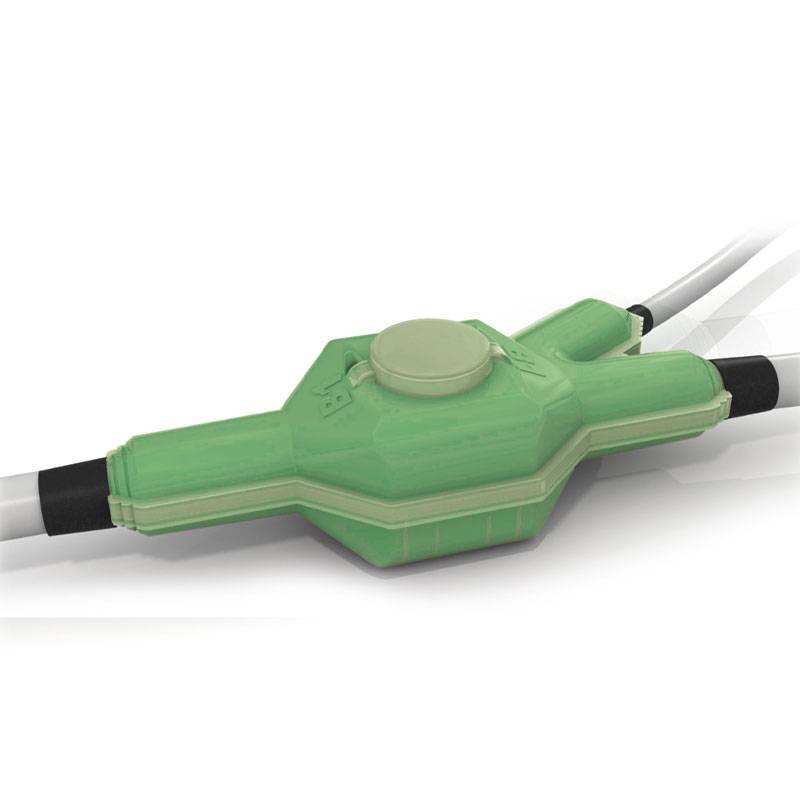

Etelec Resin insulation joint for cables 4x6-2.5/6 sq. mm SKB1
ETL SKB1
8033712906362
Etelec solid end-state polyurethane resin insulation joint for Y-shunt connection of 0.6/1 kV power cables up to four phases with the following characteristics:
- Construction: Cast
- Max through-wire conductors number: 5
- Min-max cable diameter: 7-23 mm
- Min-max single-core cable cross-section: 4-70 sq mm
- Min-max three-core cable section: 1.5-6 sq. mm
- Four-pole cable section min-max: 1.5-6 mmq
- Min-max five-core cable section: 1.5-4 mmq
- Material: Polypropylene
- Color: Green
- Degree of protection: IP68
Application: underground , aerial , submerged.
Kit contents: Polycarbonate half-shells, Patented modular separator up to 5 poles, Polyurethane resin, Insulating tape, Protective gloves, Instructions.
€19.93
Items Available: 9
: 2
Solid end-state polyurethane resin insulation joint for in-line connection of 0.6/1 kV power cables up to four phases. Solid end-state resin provides Submarine joints with high mechanical strength, excellent electrical insulation and corrosion protection under all installation conditions.
Features:
- In-Line Connection
- Design: Cast
- Application: underground , overhead , submerged
- Min-max cable diameter: 7-23 mm
- Insulation degree: 0.6/1 kV
- Dielectric strength: >20 kV/mm
- Length: 200 mm
- Width: 94 mm
- Depth: 55 mm
There are no reviews
Data sheet
- Type: Connections
