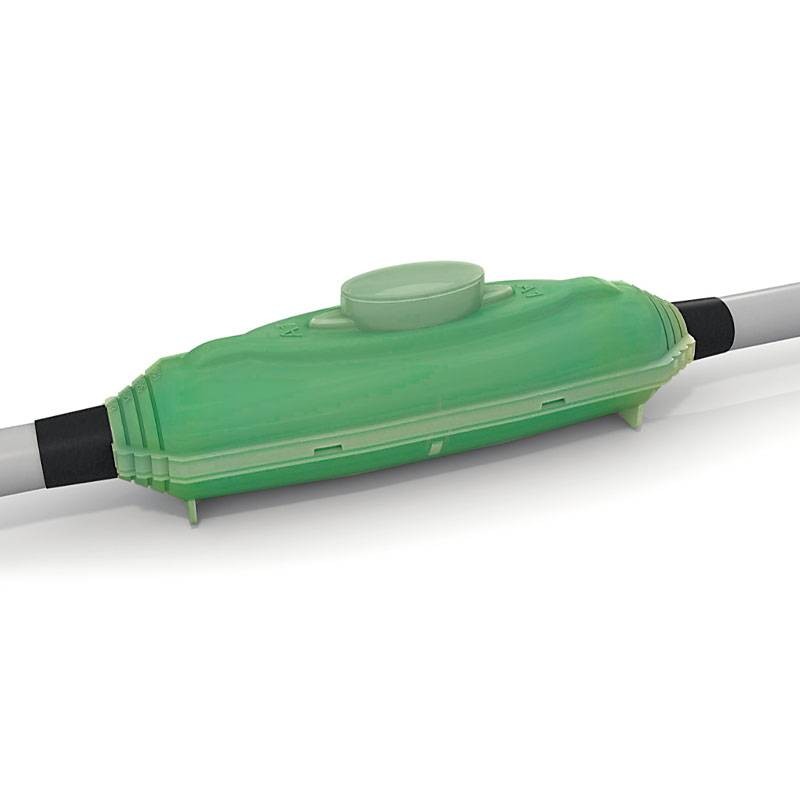

Etelec Resin insulated joint for cables 4x25/1x185 sq. mm SKA2
ETL SKA2
8033712906812
Etelec solid end-state polyurethane resin insulation joint for in-line connection of 0.6/1 kV power cables up to four phases with the following characteristics:
- Construction: Cast
- Max through-wire conductors number: 5
- Min-max cable diameter: 8-35 mm
- Min-max single-core cable cross-section: 25-185 sq mm
- Min-max three-core cable section: 4-25 sq. mm
- Min-max four-core cable section: 4-16 mmq
- Min-max five-core cable section: 4-16 mmq
- Material: Polypropylene
- Color: Green
- Degree of protection: IP68
Application: underground , overhead , submerged.
Kit contents: Polycarbonate half-shells, Patented modular separator up to 5 poles, Polyurethane resin, Insulating tape, Protective gloves, Instructions.
€22.27
Items Available: 20
: 3
Solid end-state polyurethane resin insulation joint for in-line connection of 0.6/1 kV power cables up to four phases. Solid end-state resin provides Submarine joints with high mechanical strength, excellent electrical insulation and corrosion protection under all installation conditions.
Features:
- In-Line Connection
- Design: Cast
- Application: underground , overhead , submerged
- Min-max cable diameter: 8-35 mm
- Insulation degree: 0.6/1 kV
- Dielectric strength: >20 kV/mm
- Length: 190 mm
- Width: 45 mm
- Depth: 45 mm
There are no reviews
Data sheet
- Type: Connections
